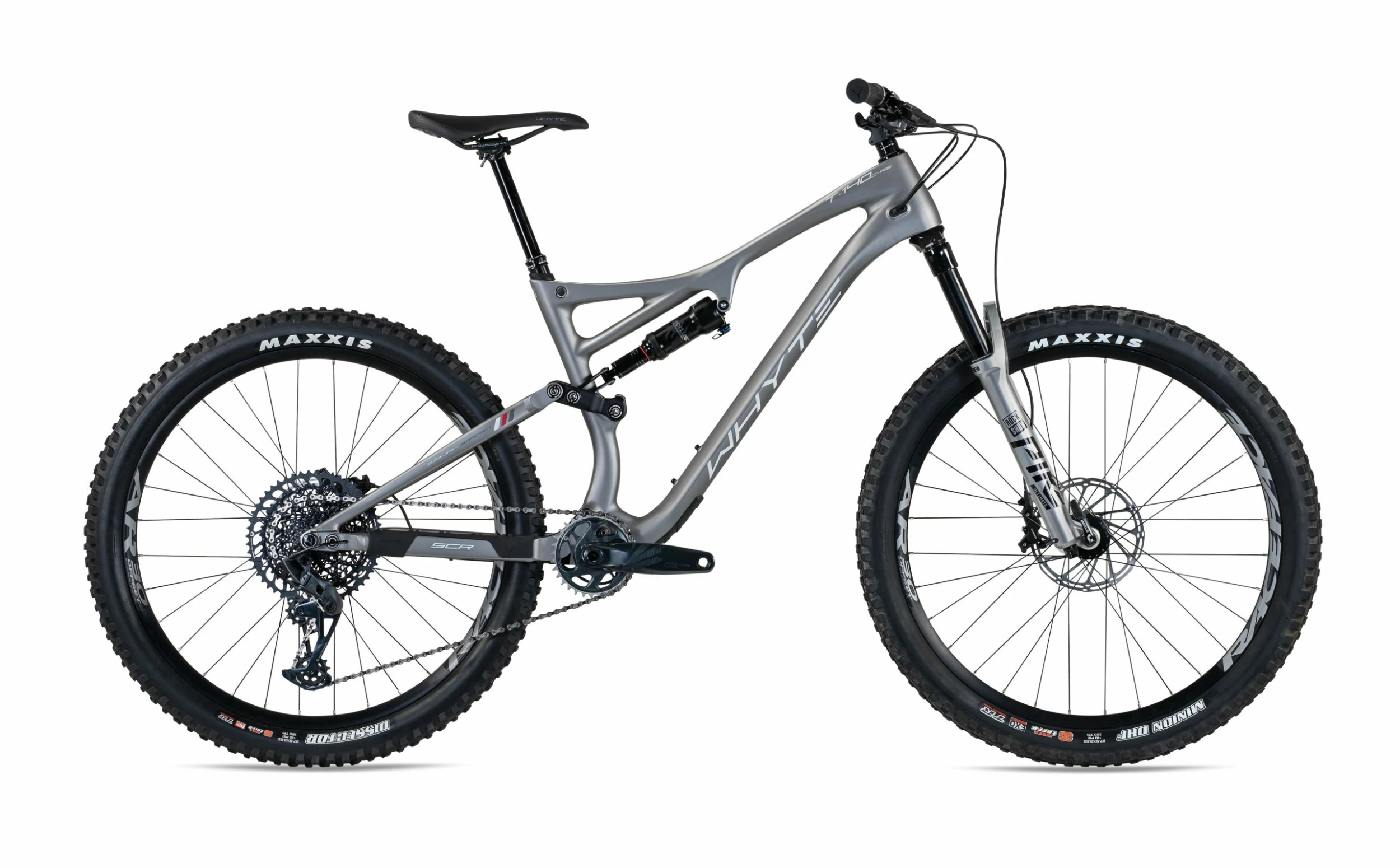

Whyte T-140C RS Bike

Ultimate trail party animal

Our mid travel, mid wheel sized trail bike has a massive reputation for going way beyond expectations in terms of
speed, rowdy control and most importantly exactly the sort of fun that makes mountain biking so brilliant. The
lighter, tighter carbon mainframe of the T-140C RS boosts acceleration and accuracy for exhilarating responsiveness
and pop off every feature and out of every corner.

Upgraded RockShox Pike Ultimate fork and Deluxe Ultimate shock nail the sketchiest situations while keeping weight
low and 27.5 x 2.6 inch Maxxis tyres inject outstanding float and flow to an already ultra-agile joy machine.

Specifications

Frame and Forks

• Frame: Carbon, Uni-directional Multi Monocoque Front Triangle with Internal Cable Routing, Tapered Head Tube,
  ISCG, 2 Bolt Guide Mounts, Alloy Symmetrical SCR Rear Triangle, Shape.it and 148mm Boost Dropouts
• Forks: RockShox Pike Ultimate RC 27.5″, 140mm Travel, 37mm Offset, DebonAir, Charger RCT3 Damper, Fast Black
  Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Ultimate
• Rear Shock: RockShox Deluxe Ultimate RCT, DebonAir, Fast Black Coating, Adjustable Rebound and 2 Position
  Compression
• Headset: FSA No. 42 Orbit ZS Plus, Integrated, 1 1/2″ Lower and 1 1/8″ Upper Sealed Cartridge Bearings

Drivetrain

• Crankset: SRAM GX Eagle, X-SYNC 2, Direct Mount 32 Tooth, DUB, 170mm, Boost, 12 Speed
• Cassette: SRAM XG-1275 Eagle, 10-52 Tooth, 12 Speed
• Chain: SRAM GX Eagle, 12 Speed

Braking/Shifting

• Shifters: SRAM GX Eagle, MMX, 12 Speed
• Front Brakes: SRAM Guide G2 RS, 4 Piston, 180mm Disc
• Rear Brakes: SRAM Guide G2 RS, 4 Piston, 180mm Disc, Internal Routing
• Brake Levers: SRAM Guide G2 RS, MMX

Wheels

• Rims: Race Face AR-30, Offset, 30mm Wide, Sleeved Joint, Tubeless Ready, 32 Hole
• Front Hub: Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole
• Rear Hub: Alloy, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 9 deg Micro Engagement 4 Pawl,
  XD Driver, 32 Hole
• Spokes: DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
• Front Tyre: Maxxis Minion DHF TR 27.5″ x 2.6″ 120TPI, EXO Sidewall Protection, 3C Maxx Terra
• Rear Tyre: Maxxis Dissector TR 27.5″ x 2.6″ 60TPI, EXO+ Sidewall Protection

Finishing Kit

• Handlebars: Whyte 6061 Alloy, 31.8mm, Small 15mm Rise, 760mm Wide, Medium / Large / X-Large, 30mm Rise 780mm
  Wide
• Grips: Whyte Lock-on Enduro Grip
• Stem: Whyte Gravity Stem, 35mm Extension
• Seatpost: Bike Yoke Revive, 30.9mm, Small 125mm Travel, Medium / Large / X-Large 160mm Travel, Triggy Remote
  with MMX attachment
• Saddle: Whyte Custom, Dual Density, Triple Panel Design
• Pedals: Not Included
