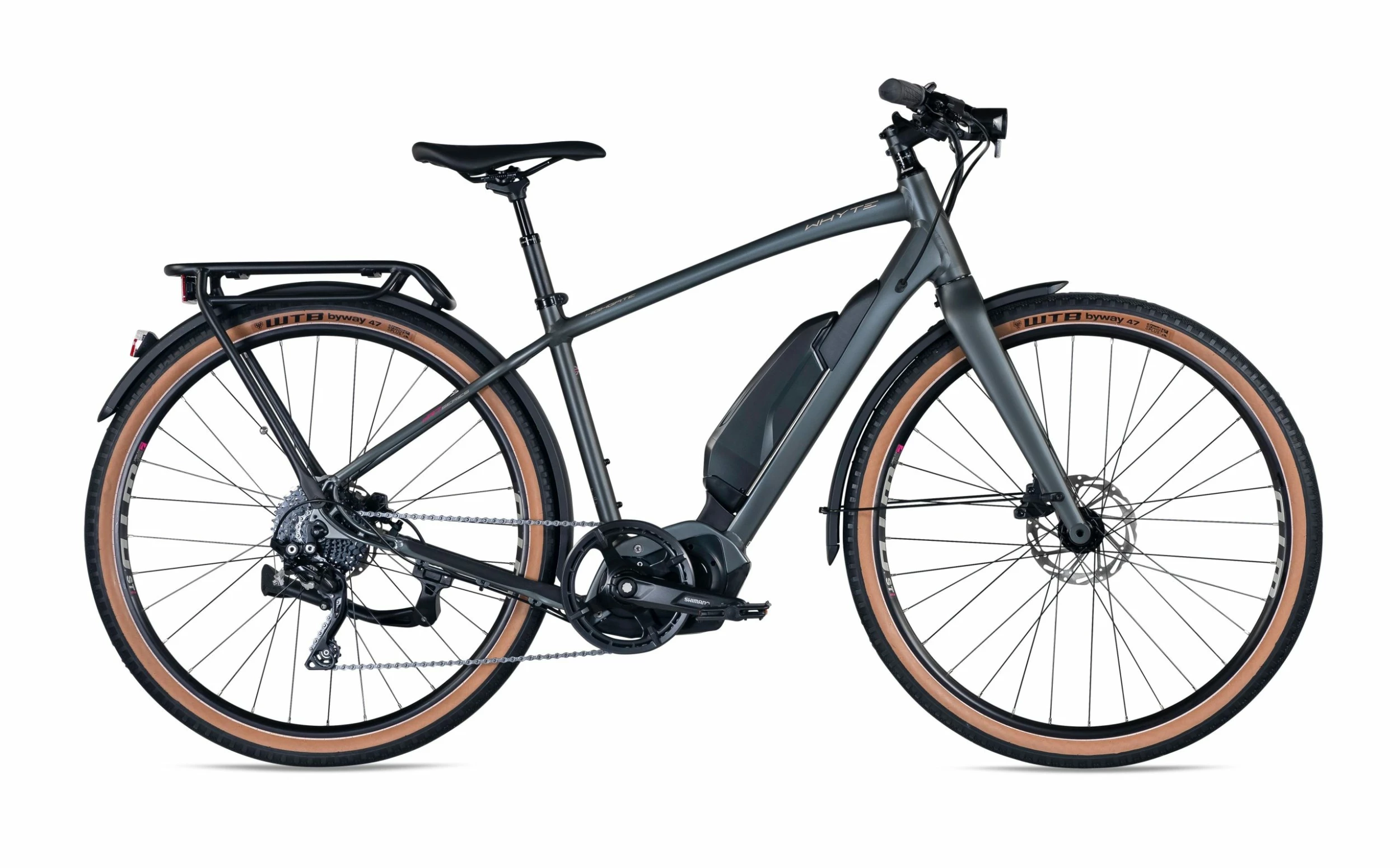

Whyte Highgate V2 Bike

Small sizes, massive possibilities

Our premium compact E-commuter brings first class comfort and a limousine feel to a wider range of riders than ever before. Let the almost silent Shimano motor take the strain on hills so you arrive fresh.

Know that we’ve perfected the handling balance of the lightweight central motor frame with over twenty years of mountain bike design for effortless, easy confidence.

Powerful acceleration, flawless top spec gears and hydraulic disc brakes mean you can take control of your traffic position whatever the stop and go flow. Big WTB balloon tyres and a suspension seat post give a limousine feel however rough the road or rugged the weekend explore, and bright built-in lights and full coverage metal mudguards mean you’re good to go 24/7 whatever the weather.

Alloy rear rack lets you carry work essentials or shopping with secure safety, and you can park up anywhere with our built-in kick stand.

Specifications

Frame and Forks

• Frame: 6061 Hydro Formed T6 Aluminium, Tapered Head Tube, Hydro Formed Down Tube, Custom Drawn, Multi Butted with Custom Whyte Dropouts and Kick Stand mount
• Forks: Whyte Straight Bladed 6061 Alloy, Flat Mount, Single Eyelets for Mudguards and Internal Cable RoutBicyclesing
• Headset: FSA No. 42 B CUP for 1 1/2″ Lower and 1 1/8″ Upper

Drivetrain

• Crankset: Whyte Forged 44 Tooth with Double Sided Chain Guard, 165mm, 10 Speed
• Rear Derailleur: Shimano RD-M781, Deore XT, SGS 10-Speed, Shadow
• Cassette: Sunrace CSMS1, 11-36 Tooth, 10 Speed
• Chain: KMC e10T, e-bike specific chain with EPT Anti-Rust, 10 Speed

Braking/Shifting

• Shifters: Shimano SL-M640, Zee, 10 Speed with STEPS SC-E5000 Display
• Front Brakes: Tektro Auriga, 160mm Disc, Post Mount, Internal Routing
• Rear Brakes: Tektro Auriga, 160mm Disc, Internal Routing
• Brake Levers: Tektro Auriga

Wheels

• Rims: WTB STp i23 650b Rims with TCS System, Pinned Joint, Tubeless Ready, 32 Hole
• Front Hub: Alloy, Double Sealed Cartridge Bearings, 32 Hole
• Rear Hub: Alloy, Double Sealed Cartridge Bearings, 32 Hole
• Spokes: 2.0mm, Black Stainless with Brass Nipples
• Tyres: WTB Byway, Tan Wall, 650 x 47c

Finishing Kit

• Handlebars: Whyte 6061 Alloy, 20mm Rise, 31.8mm, 620mm Wide
• Grips: Whyte Custom Dual Density Lock-on
• Stem: Whyte Alloy 6061, Small 60mm, Medium 70mm, Large 80mm
• Seatpost: Whyte Suspension 6061 Alloy, 12mm Offset, 30.9mm, 2 Bolt Clamp
• Saddle: Whyte Custom
• Pedals: Fibre Reinforced Composite Platform

Electric Power

• Motor: E6100 60Nm
• Battery: 418Wh
• Display: SC-E5000
• Battery Charger: 2 Amp
