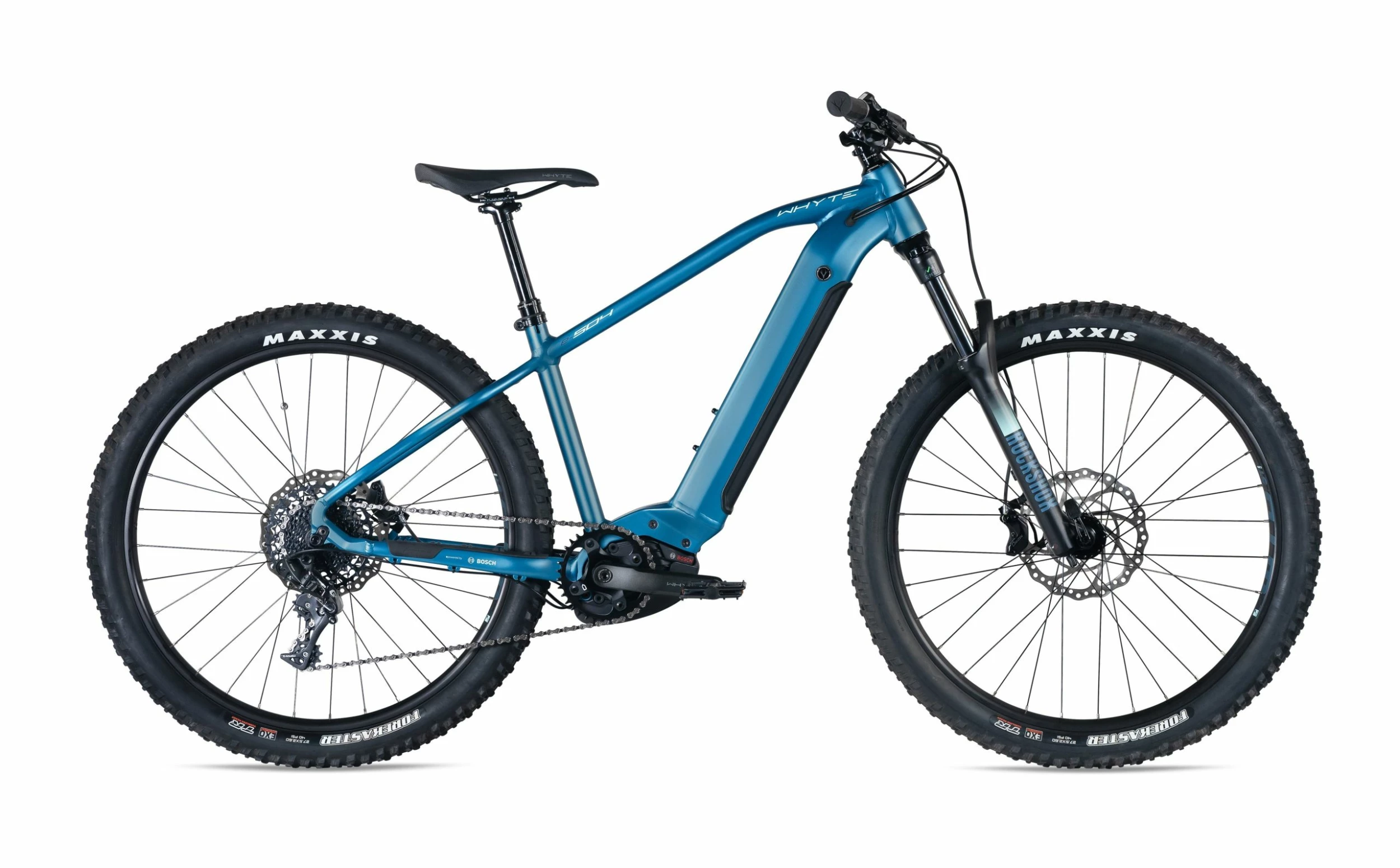

Whyte E-504 Electric Bike

Introducing the E-504, new for 2022 and designed from the ground up, it’s part of Whyte’s exciting new 120mm electric hardtail series. Bringing a whole new trail geometry that gives you ultimate control and confidence out on the back roads and trails.

Specifications

Frame and Forks

• Frame: 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing for Dropper Post and 12mm X 148mm Boost Dropouts
• Fork: RockShox 35 Gold RL 27.5″, 120mm Travel, 37mm Offset, DebonAir, Fast Black Coating, Adjustable Compression and Rebound, Tapered Steerer, 110mm x 15mm Boost, Maxle Lite

Drivetrain

• Rear Derailleur: SRAM GX, 11 Speed
• Cassette: SRAM PG-1130, 11-42, 11 Speed
• Chain: KMC NPBK Sport, 11 Speed
• Crankset: Whyte, Steel narrow/wide, 165mm, Direct Mount 36T for Bosch Performance Line CX, Black

Braking/Shifting

• Shifters: SRAM GX, 11 Speed
• Brakes: Tektro Orion, 4-Piston with Sintered Metal Pads, 200mm Disc, Post Mount, (Rear) Internal Routing
• Brake Levers: Tektro Orion

Wheels

• Rims: WTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
• Front Hub: Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole
• Rear Hub: Alloy, e-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole
• Tyres: Maxxis Forekaster TR 27.5″ x 2.6″ 60TPI, EXO Sidewall Protection

Finishing Kit

• Handlebar: Whyte 6061 Alloy, XS and S 15mm Rise, 31.8mm, 760mm, M 30mm Rise, 31.8mm, 780mm Wide
• Grips: Whyte Lock-on V Grip
• Headset: FSA No. 57B Orbit ZS, 1 1/2″ Lower and 1 1/8″ Upper Caged Bearings
• Stem: Whyte Alloy 6061, 35mm Extension
• Seatpost: Whyte drop.it, 30.9, XS 100mm, S 125mm, M 150mm Travel, Paddle Remote Lever
• Saddle: Whyte Custom, Triple Panel Design
• Pedals: None

Electronics

• Motor: Performance CX 85Nm
• Battery: 500Wh
• Charger: 2 Amp
• Display: Purion

Extras

• Spokes: DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
