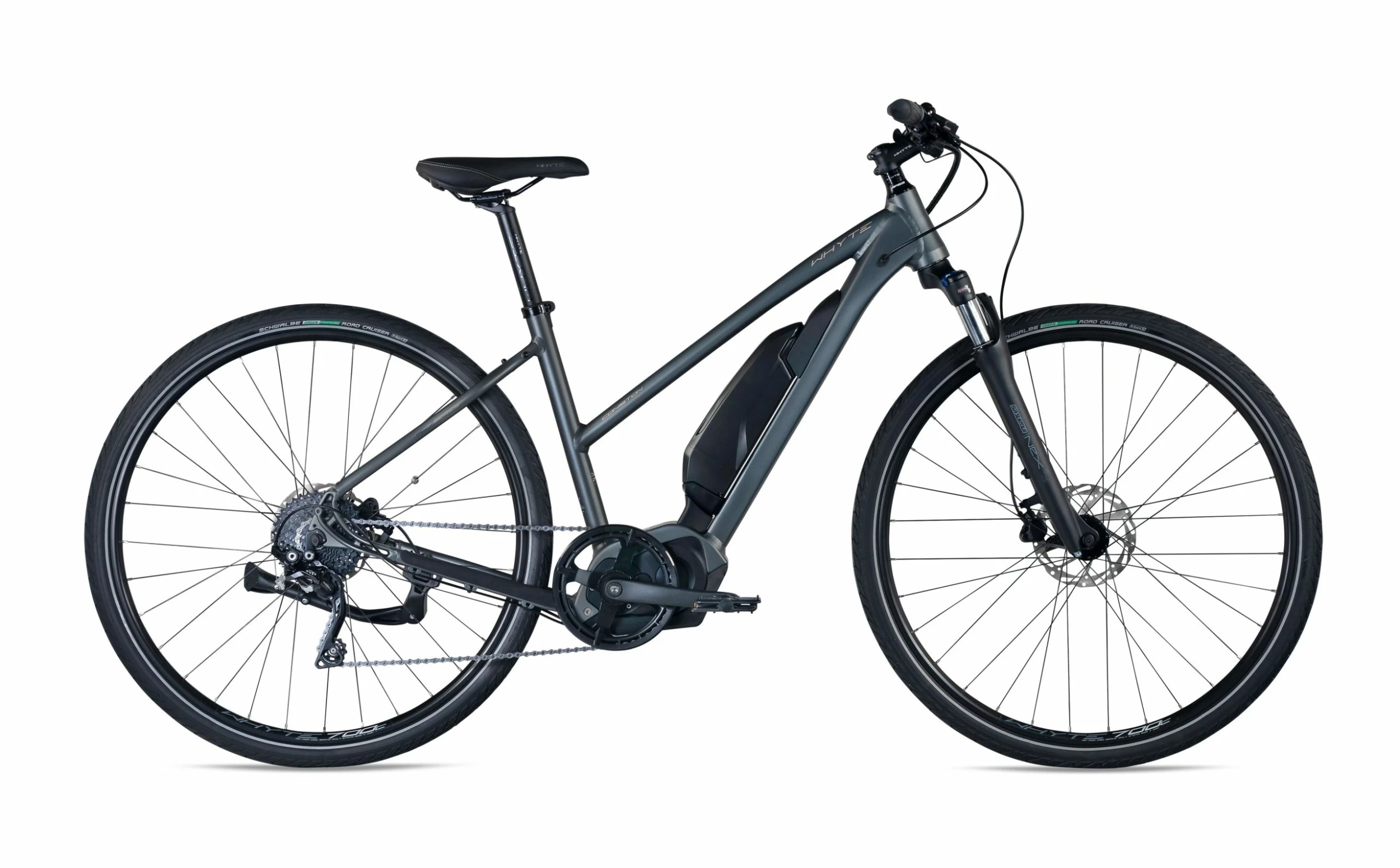

Whyte Coniston V2 Womens Bike

Step on and go anywhere

Coniston Step Thru delivers all the Shimano power assisted all-terrain versatility and freedom of our classic
Coniston design with the ‘wear what you want and stop when you want’ confidence and convenience of a low tube frame.
It’s every bit of capable of speeding you effortlessly up hills, cruising past traffic or going miles in minutes
too.

A front suspension fork, tough puncture proof tyres, top quality mountain bike gears and hydraulic brakes open up a
whole new freedom to explore possibilities, putting a big smile on your face with total safety. Lockable fast
recharging battery and built-in kickstand make it easy to stop to shop or just take in the view too.

Specifications

Frame and Forks

• Frame: 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal
  Cable Routing, Shape.it Link and 12mm x 148mm Boost Dropouts
• Forks: SR Suntour NCX-E25 HLO, 63mm Travel, Tapered Steerer Tube, Coil Spring and Hydro Lockout
• Headset: FSA No. 57B Orbit ZS, 1 1/2″ Lower and 1 1.8″ Caged Upper Bearings

Drivetrain

• Crankset: Whyte Forged 44 Tooth with Double Sided Chain Guard, 165mm, 10 Speed
• Rear Derailleur: Shimano RD-M781, Deore XT, SGS 10-Speed, Shado
• Cassette: Sunrace CSMS1, 11-36 Tooth, 10 Speed
• Chain: KMC e10T, e-bike specific chain with EPT Anti-Rust, 10 Speed

Braking/Shifting

• Shifters: Shimano SL-M640, Zee, 10 Speed with STEPS SC-E5000 Display
• Front Brakes: Tektro Auriga, 160mm Disc, Post Mount, Internal Routing
• Rear Brakes: Tektro Auriga, 160mm Disc, Internal Routing
• Brake Levers: Tektro Auriga

Wheels

• Rims: Whyte T-23 x 700c, 32 hole, with eyelets
• Front Hub: Alloy, Cup & Cone, Double Seal, 32 Hole
• Rear Hub: Alloy, Cup & Cone, Double Seal, 32 Hole
• Spokes: 2.0mm, Black Stainless with Brass Nipples
• Tyres: Schwalbe Silento 700 x 35c, with K-Guard Puncture Protection

Finishing Kit

• Handlebars: Whyte Alloy 6061, 31.8mm, 20mm Rise, 620mm Wide
• Grips: Whyte Custom Dual Density Lock-on
• Stem: Whyte Alloy 6061, Small 60mm, Medium 70mm, Large 80mm
• Seatpost: Whyte 6061 Alloy, 15mm Offset, 30.9mm, 2 Bolt Clamp
• Saddle: Whyte Custom, Triple Panel Design
• Pedals: Fibre Reinforced Composite Platform

Electric Power

• Motor: E5000 50Nm
• Battery: 418Wh
• Display: SC-E5000
• Battery Charger: 2 Amp
