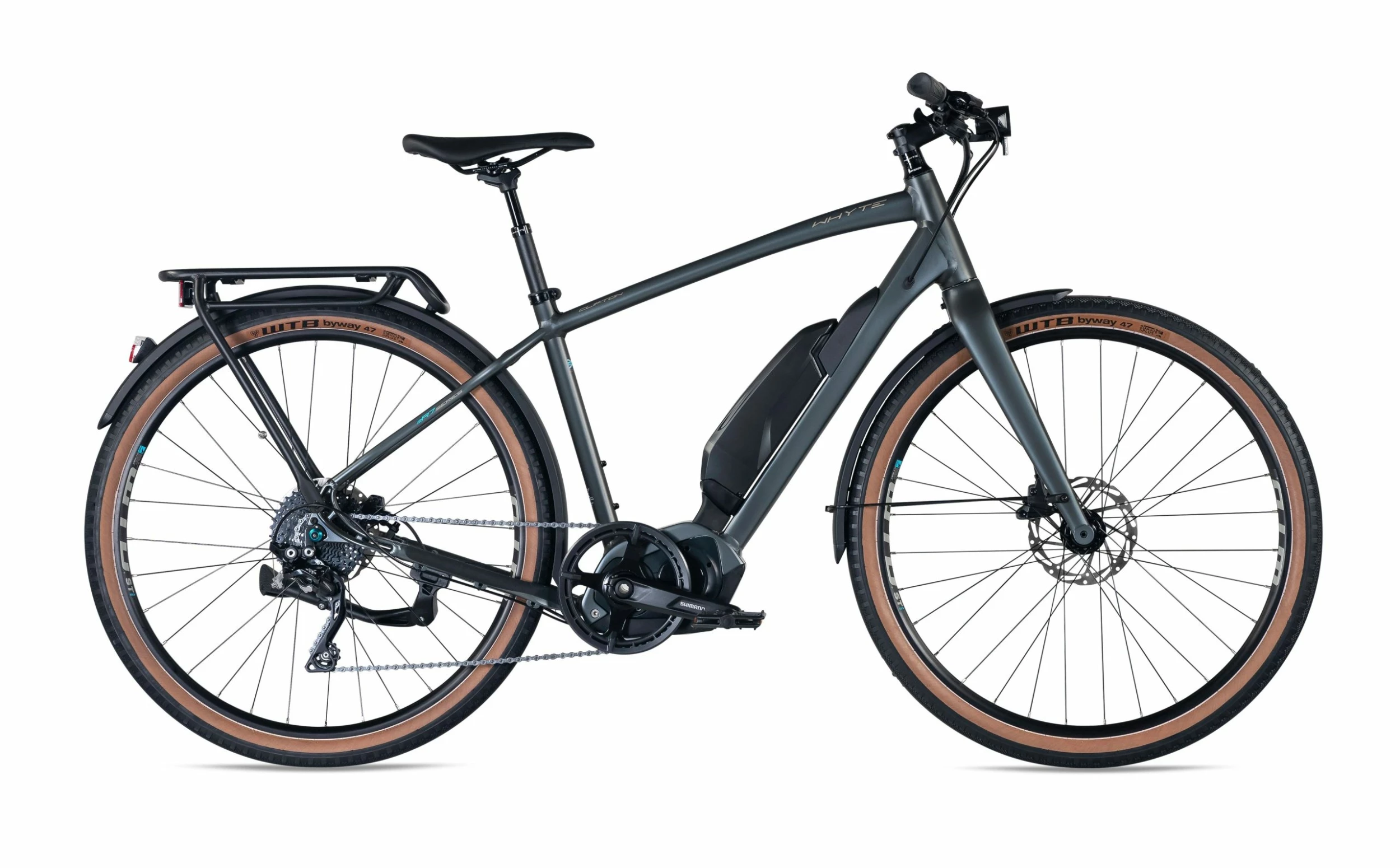

Whyte Clifton V2 Electric Bike

First Class Ticket

Clifton is our ticket to first class travel all year round thanks to a powerful but almost silent Shimano motor to
flatten the hills, shrink distances and speed you safely away from lights, so you can hold your position in traffic
and not get pushed into the gutter.

Upright mountain bike style handling and position gives great visibility and confident control with centred balance
that only a built-in motor can bring. Top spec XT MTB gears and powerful disc brakes mean you’re never gambling with
your safety in the game of brake light roulette.

We’ve integrated high power lights, full length metal mudguards and a tough but light rear cargo rack into our
equally tough yet light alloy frame. We’ve made battery removal easy for recharging and built in a kick stand for
when you’re not riding. And when you are riding, we’ve sat you on a suspension seat with classy looking tan wall WTB
650 x 47mm tyres because looking smooth is almost as important as riding smooth.

Specifications

Frame and Forks

• Frame: 6061 Hydro Formed T6 Aluminium, Tapered Head Tube, Hydro Formed Down Tube, Custom Drawn, Multi
  Butted with Custom Whyte Dropouts and Kick Stand Mount
• Forks: Whyte Straight Bladed 6061 Alloy, Flat Mount, Single Eyelets for Mudguards and Internal Cable
  Routing
• Headset: FSA No. 42 B CUP for 1 1/2″ Lower and 1 1/8″ Upper

Drivetrain

• Crankset: Whyte Forged 44 Tooth with Double Sided Chain Guard, 165mm, 10 Speed
• Rear Derailleur: Shimano RD-M781, Deore XT, SGS 10-Speed, Shadow
• Cassette: Sunrace CSMS1, 11-36 Tooth, 10 Speed
• Chain: KMC e10T, e-bike specific chain with EPT Anti-Rust, 10 Speed

Braking/Shifting

• Shifters: Shimano SL-M640, Zee, 10 Speed with STEPS SC-E5000 Display
• Front Brakes: Tektro Auriga, 160mm Disc, Flat Mount, Internal Routing
• Rear Brakes: Tektro Auriga, 160mm Disc, Internal Routing
• Brake Levers: Tektro Auriga

Wheels

• Rims: WTB STp i23 650b Rims with TCS System, Pinned Joint, Tubeless Ready, 32 Hole
• Front Hub: Alloy, Double Sealed Cartridge Bearings, 32 Hole
• Rear Hub: Alloy, Double Sealed Cartridge Bearings, 32 Hole
• Spokes: 2.0mm, Black Stainless with Brass Nipples
• Front Tyre: WTB Byway, Tan Wall, 650 x 47c
• Rear Tyre: WTB Byway, Tan Wall, 650 x 47c

Finishing Kit

• Handlebars: Whyte Alloy 6061, 31.8mm, 25mm Rise, 620mm Wide
• Grips: Whyte Custom Dual Density Lock-on
• Stem: Whyte Alloy 6061, Medium 70mm, Large 80mm, X-Large 90mm
• Seatpost: Whyte 6061 Alloy, 1 pieces 3D Forged, 20mm Offset, 27.2mm x 350mm, 2 Bolt Clamp
• Saddle: Whyte Custom, Triple Panel Design
• Pedals: Fibre Reinforced Composite Platform

Electric Power

• Motor: E6100 60Nm
• Battery: 418Wh
• Display: SC-E5000
• Charger: 2 Amp
