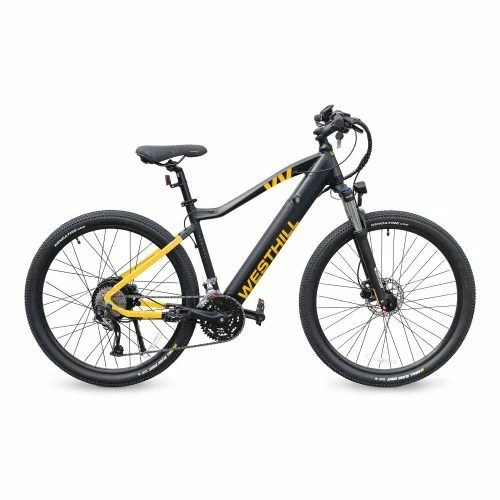

Westhill Venture 2021 Electric Bike

Features

• Shimano Alivio 27 speed gears (9×3)
• Tektro hydraulic disc brakes
• SR Suntour XCR Air fork with lockout feature
• Integrated removable battery – 2 sizes available – 10.4Ah and 14Ah (LG cells) 36V
• Large LCD display with USB port
• Ultra-High torque Bafang hub motor (65Nm)
• Selle Royal gel saddle
• Integrated front light powered by bike battery
• Throttle compatible
• Shimano front hub
• Lightweight electric bike
• Quick release front wheel
• Kickstand

Specification

• Colour: Black/yellow or Blue/Orange
• Frame Material: 6061 lightweight aluminium with internal cables and integrated battery
• Frame size: 18″
• Weight: 24
• Fork: SR Suntour XCR 32 LO R AIR with Hydraulic lockout
• Motor: Bafang Rear Hub Motor
• Motor Torque: 65Nm High Speed Motor
• Battery: 36V 10.4Ah or 14Ah LG Cell battery
• Battery Management: Smart BMS with sleep model function
• Charger: 2Ah smart charger, 4 hours charging from empty
• Display: Large LCD display with USB for phone charging
• Walk Assist: 4mph
• Range: 40 Miles – 10.4Ah / 60 Miles 14Ah
• Shifters: SL-M4000 Alivio 9 x 3 shifter set
• Rear Mechanism: Shimano Alivio RD-M4000 9-spd Shadow Design Rear Derailleur
• Chainset: Alloy 40/30/22 Teeth with 170mm Alloy Crank arm
• Bottom Bracket: Neco B910 Sealed Cartridge
• Cassette: Shimano CS-HG400 Alivio 27 (9×3) speed cassette, 11-32T
• Chain: KMC 9 speed Anti Rust chain
• Rims: 27.5 Alloy 36Hole Double wall
• Front Hub: Shimano HB-M525A DEORE
• Spokes: Stainless and Brass Nipples 14G Front / 13G Rear
• Tyres: Kenda 27.5*2.10 TPI60 Puncture Resistant
• Seat Post: Zoom Alloy Black
• Saddle: Selle Royal Comfort Sport saddle
• Handlebar: Zoom Alloy 700mm 31.8 bar bore
• Grips: Velo all weather
• Stem: Zoom Alloy 90mm
• Headset: Neco semi-integrated with 2 spacers
• Brakeset: Tektro HD-M285 hydraulic disc brakes
• Brake Rotors: 180mm front & 160mm rear
• Kickstand: Alloy
• Front Light: Spanninga integrated
