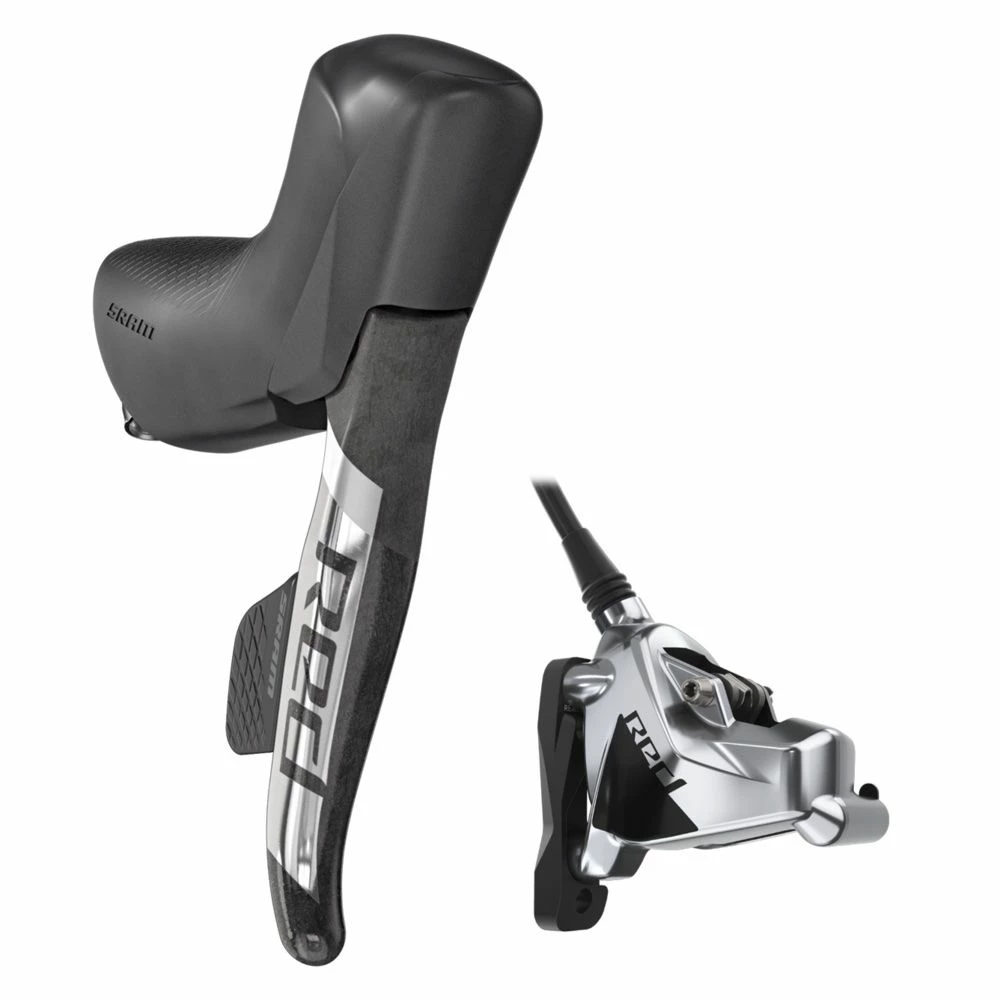

SRAM RED ETap AXS Hydraulic Shift-Brake System

Fully wireless electronic shifting. Fully hydraulic disc braking. The SRAM RED eTap AXS HRD shift-brake system is
the future. And the future is custom. AXS enabled and personalizable to hand size and reach, this is the best
shifting and braking experience – for all riders.

Technology

Bleeding Edge

With this new caliper fluid circuitry, the bleed port has been moved to the bottom of the caliper, and all four
piston bores can communicate. This way, during bleeding fluid naturally fills the caliper, resulting in an easier,
more consistent bleed.

Contact Point Adjustment

Some people like the instantaneous power of a short lever throw. Others prefer the feel of a longer throw. With
Contact Point Adjust, you can pick the position you want your fingers to be in when your brakes are engaged. It’s a
quick and easy way to customise the feel of your brakes without having to move the pads. It’s also a way to balance
both brake levers to feel exactly the same.

Reach Adjust

Brake lever fit and feel is a personal thing. Riders have individual positioning preferences, as well as unique hand
sizes and finger lengths. Reach Adjust makes it easy to adjust your lever for maximum one-finger control for
everyone.

eTap

All of the underlying tech in our new SRAM RED eTap groupset, such as wireless shifting, advanced battery power
management, and mechatronics technologies, are meant to serve one ultimate purpose: to facilitate the most intuitive
and consistent shifting available. This shift logic is called eTap. Right lever makes it harder, left lever makes it
easier, both levers shift the front derailleur. Simple, unmistakable, and intuitive.

AXS

AXS is SRAM’s new bike component integration system that connects electronic bicycle components and software. The
SRAM AXS app allows riders to see battery status, change component behavior, personalize controls, get maintenance
reminders, and update firmware.

X-Range

Road bikes are faster and more capable than ever before, and riders are expanding what’s possible with drop bar
bikes. X-Range is gearing for today’s road riding. We completely reimagined road gearing for wider range, more
useful and smoother gear progression, as well as smarter shift settings—enabled by AXS. With X-Range, you’re always
in the right gear.

Features

• AXS enabled for easy personalization
• Simple and intuitive eTap shift logic
• Personalize for your hands and preferences using Contact Point Adjustment and separate Reach Adjust with
  HydroHC brake platform
• Newly textured shift paddles and hoods for a better feel
• Two ports for Blips on each lever
• Bleeding Edge technology for easy and clean brake bleeds
• Available in flat mount and post mount caliper options
• Now backwards compatible with 11-speed eTap derailleurs

Specifications

• Derailleur Compatibility: AXS
• Brake Lever Material: Carbon LFRT (Long-fiber-reinforced thermoplastic)
• Shift Lever Material: Plastic
• Pad Type: Steel-Backed Organic
• Mounting Bracket: Direct Mount DIR or Flat Mount 20mm Offset
• Hose Length: 950mm, 1800mm
• Connectamajig: Stealth-A-Majig Connected
