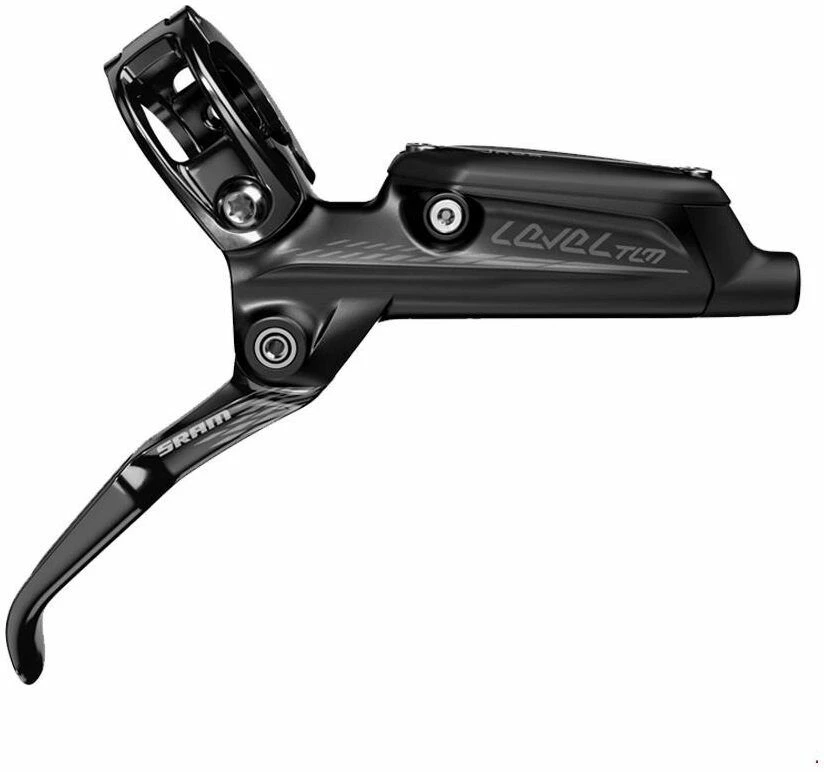

SRAM Level TLM Disc Brake Set

All Day Performance For All.

We know good value. It comes with practicality. Durability. Sensible design. The Level TLM is that sweet spot — alloy
lever blades, DirectLink actuation, DOT 5.1 fluid, and our new two-piston, two-piece caliper — all in a compact,
lightweight package. This is the tried-and-true machinery, for all day, never quit performance.

Technology

Bleeding Edge

With this new caliper fluid circuitry, the bleed port has been moved to the bottom of the caliper, and all four
piston bores can communicate. This way, during bleeding fluid naturally fills the caliper, resulting in an easier,
more consistent bleed.

DirectLink

SRAM’s DirectLink lever design produces a solid, positive feel the second you squeeze the lever to engage the brake.
It offers a no-nonsense solution to give you precise control.

MatchMaker X Integrated

The MatchMaker X clamp is more than just a clamp. It’s like having Martha Stewart tidy up your cockpit. Since each
clamp accepts up to three controls, you can put everything from your XLoc suspension lockout, your SRAM shifters,
SRAM brake levers and AVID brake levers as well as your Reverb XLoc remote, all on two clamps. Short of genetically
engineering longer thumbs, it’s the ideal way to put everything within easy reach. Just like Martha would.

Timing Port Closure

A hydraulic brake’s timing port is the connection between the reservoir and the lever cylinder bore. When the lever
is squeezed, a cup seal passes this area and closes the port, which pressurizes the system. SRAM’s timing port
closure system features durable seals and an ultra-smooth cylinder bore finish producing dependable braking power
and consistency.

Expandable Bladder

SRAM’s new brake lever design includes a reshaped bladder that helps regulate and reduce air bubbles. The bladder is
specifically shaped to evacuate air from the lever and push the fluid exactly where it’s needed. The result is
improved back-pressure relief, which produces dependable braking power and consistency.

Heat Shield

The stainless steel heat shield breaks the thermal connection between the pad and caliper body, reducing caliper
fluid temperature by about 20°C even in the most extreme testing conditions.

Features

• A modern XC brake for the most demanding rides and races
• Approachable price for bikes and riders of all levels

Specifications

• Brake Type: Hydraulic
• Blade Material: Aluminium – Forged
• Pad Type (disc): Steel-Backed Organic
• Bracket (Disc Brake): Direct mount DIR
• Pistons: 2
• Piston Material: Aluminium
• Rotor Type Recommended: 1-piece CenterLine
