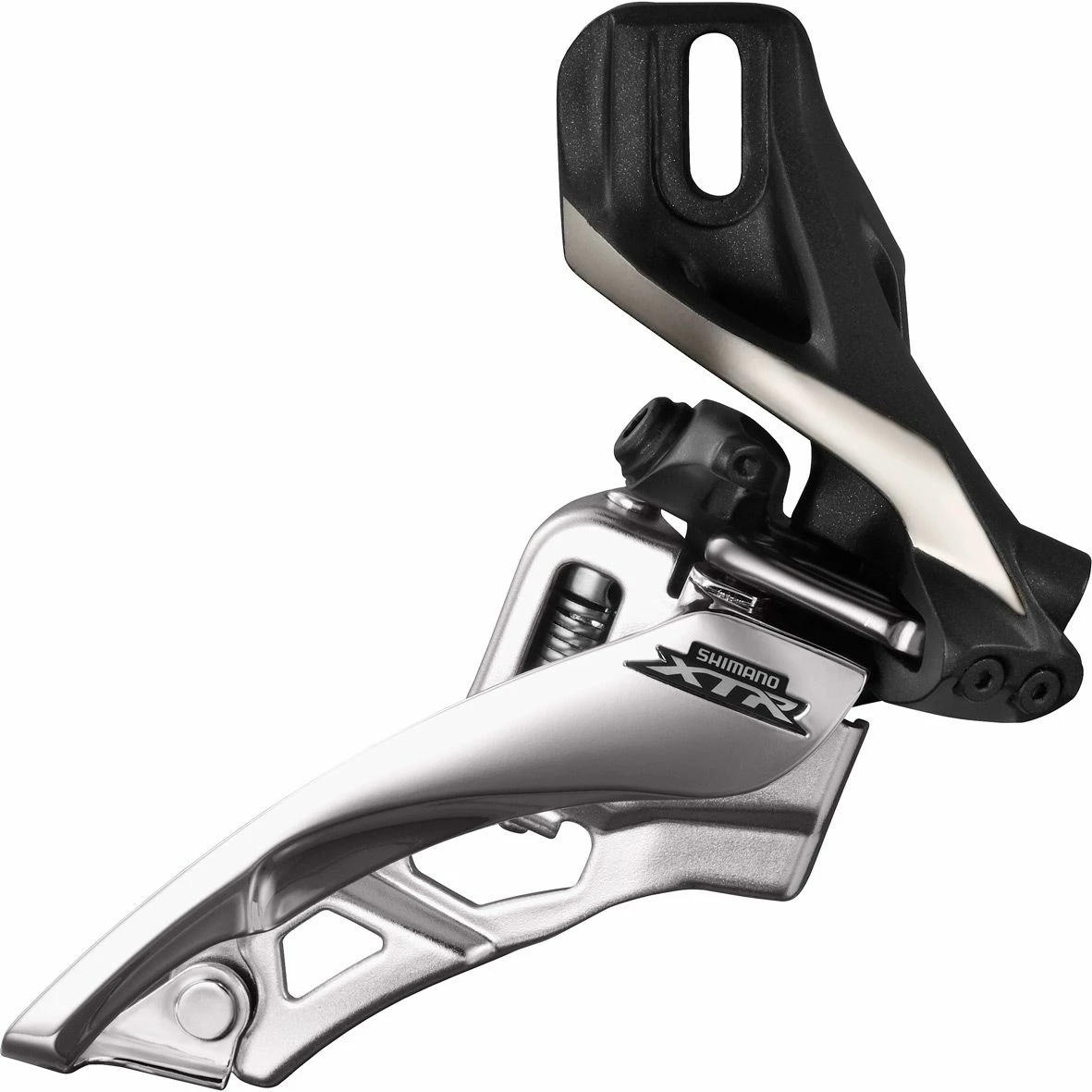

Shimano XTR FD-M9000 Triple Front Derailleur

XTR Dyna-sys 11-speed M9000 hosts a whole load of new technology keeping at the forefront of front derailleurs,
it’s truly the elite racers choice.

Technology

Dyna-Sys 11

Rhythm and range, the real advantage of 11-speed is the ability to have all the range you require without sacrificing
the rhythm you need.

Range Optimized Chainwheels

Chainwheels matched with specific sprockets for:

• Improved gear quality and driving efficiency
• Reduced cross-chain
• Effective gear steps
• Larger diameter, longer wearing cogs

At the range

Driving: gears are purpose matched to keep you riding efficiently without front shifting

Climbing: gears are chosen to compliment the lowest cogs and maximize seated traction

Driving range

Dyna-Sys 11 maximizes rhythm with “rhythm step” gears in the most frequently used range.

• Less front shifting thanks to optimum front gear teeth
• Rider controls cadence and energy use by rear close ratio

Highly Efficient gear combination

Driving efficiency is a key drivetrain performance indicator.

• More speed for the same effort
• Multiple front gear (2x, 3x) maintains higher efficiency in all range

Gear Ratio

M9000 series

Front double 36-26 Tooth, Cassette sprocket 11-40 Tooth / Front single 30 Tooth, Cassette sprocket 11-40 Tooth

Side Swing Front Derailleur

Horizontal movement follows the chain direction – smooth & efficient front shifting effort

More tire clearance for larger wheels

• No linkage behind seat tube
• Freedom to reduce chainstay length

50% more powerful outward shifting (FD-M9020)

Wider chainstay angle increases traction range (FD-M9020)

HG-X11 Chain

Silky driving, accurate shifting HG-X11 directional chain realize more smoother shifts and greater overall
performance.

Right and left sides are optimized for front and rear shifting respectively.

Features

• Designed specifically with modern trail bikes in mind, Shimano’s XTR side swing technology front derailleur
  increases tyre clearance by 15mm, while new cable routing resulting in the lightest shifting action yet
• Side swing – side pull front derailleurs allow bike manufactures to continuously push frame design without
  limitation
• Light alloy cage reduces weight and improves performance, nickel-plated finish prevents chain wear
• Developed specifically for triple chainsets and frames with a E-type mount, direct mount or band on frame design
• Comes with low / high band clamp and necessary shims for all band dimensions
• Side pull cable routing
• 40T maximum top gear, 18 Tooth total capacity
• Dyna-Sys 11-speed design – for use with Dyna-Sys 11-speed drivetrains
