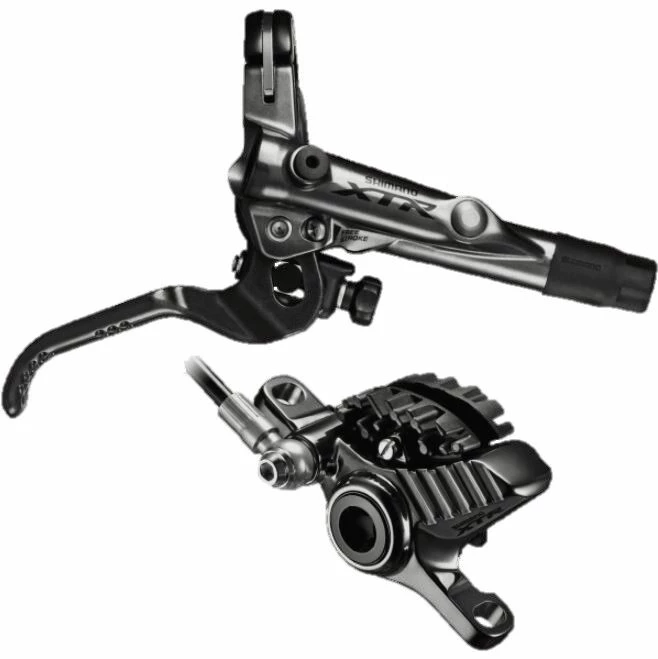

Shimano XTR BR-M9020 Brake Lever And Post Mount Calliper Set

XTR fully bled Trail brakes are performance optimized Servo-Wave systems with full adjustability on the fly.

Technology

Ice Technologies

The fade, which can occur to disc brake rotor and pad when braking on a long downhill ride for instance, has a
negative impact on the braking performance. Shimano has adopted Ice Technologies disc brake rotor and Ice
Technologies pad to realize the cooling technology for consistent performance. The clad disc brake rotor blade,
which has a 3 layer-sandwich structure of stainless steel, aluminum and stainless steel, provides better
radiation performance. Also, the radiation fin has been adopted for the pad. Moreover, the clad disc brake rotor
blade and the radiator fin provide long pad life, less noise, less fade and lightweight.

Ice Technologies piston in order to achieve optimized lightweight, high rigidity and heat
dissipation. Oversized pistons transfer hydraulic power directly to the brake pad, and ceramic material is used
to avoid heat transfer for constant stable braking, providing efficient stopping power transfer without loss.

One Way Bleeding

“One Way Bleeding” was developed for quick and easy prevention of air in our hydraulic system. We have streamlined
the oil route throughout the system to prevent air bubbles from being captured in the system.

One way oil routing plus a funnel tool with mineral oil provides an easy and clean bleeding system.

Features

• Front fully bled lever and calliper comes without adapters or rotors giving you the freedom to customise and
  suit your bike
• Recommended for use with Ice Tech Centre-Lock rotors for optimum braking performance in a choice of 160, 180
  and 203mm
• Short stroke Servo-Wave mechanism with SIL-Tec roller for a quick, smooth pad engagement and more power for
  aggressive riding
• Free-stroke adjustment
• Oversized 22mm ceramic pistons optimized for heat insulation, lightweight and stiffness
• Using Ice Tech alloy fin pads further improving heat radiation performance
• Super lightweight mono body uses a forged one piece design is rigid and lightweight
• Carbon/Alloy structure short 14mm wide brake lever with textured finish for optimum strength, grip and
  reliability
• Ergonomic pivot position for efficient and powerful braking
• Mineral oil brake fluid
• Shim-less post style mounting system can be used with adapters
• Hinged clamp and reach adjustment for quick installation and the perfect custom fit
• I-Spec II compatible
• Kit also contains finned sintered pads, spare olives and insert should you wish to adjust the length of the
  cuttable hoses
• Hose length: 1700mm
