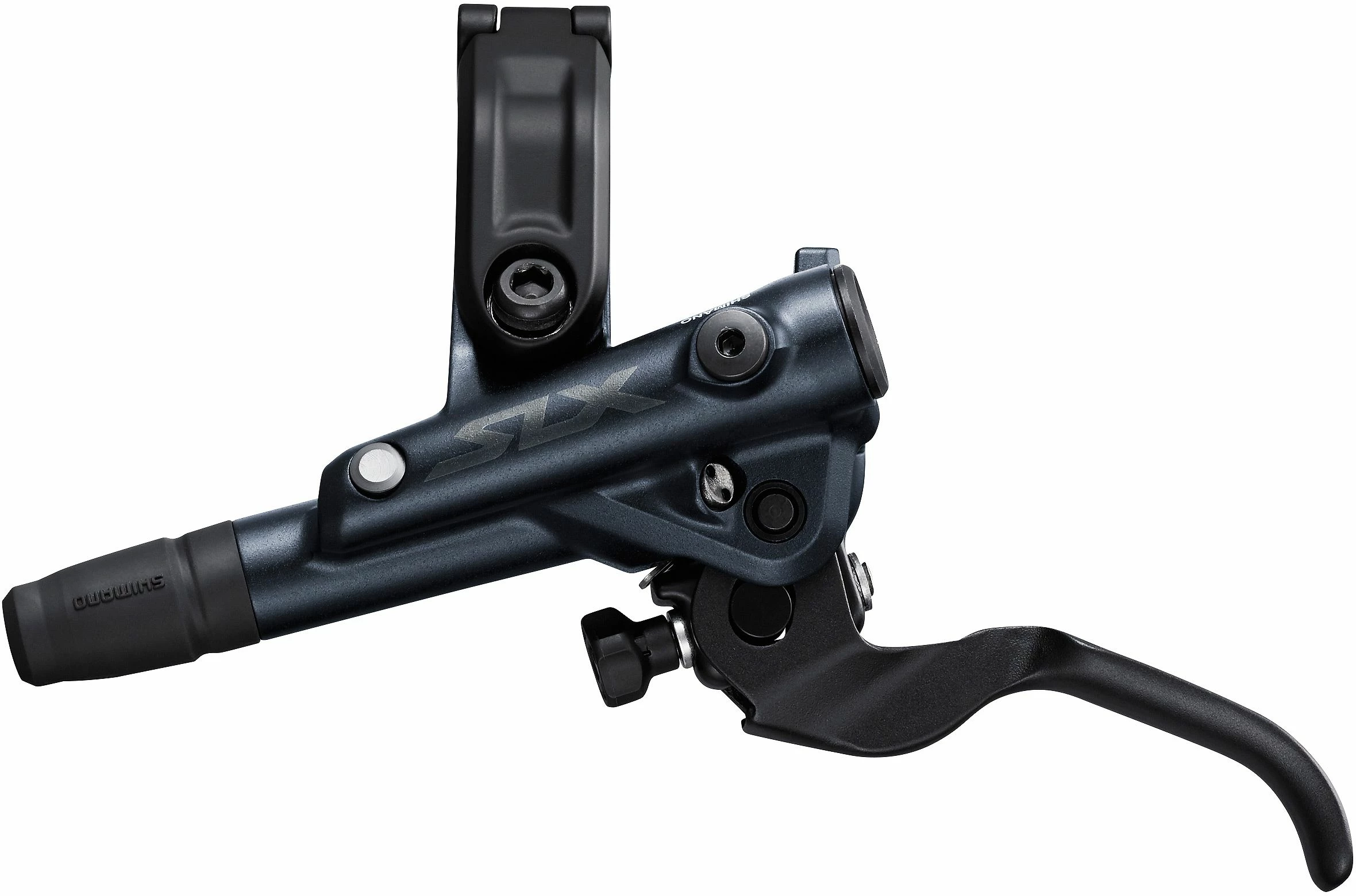

Shimano SLX BL-M7100 Complete Brake Lever

Ergonomic and powerful Servo Wave hydraulic disc brake levers offer exceptional control and modulation.

With a focus on reduced weight and cross-country tuned stopping power, the SLX BL-M7100 lever provides intuitive
modulation so that you can explore your limits with confidence.

Technology

Servowave Action

When you pull a Servowave brake lever, initial pad travel is fast, so little lever movement is needed to bring the
pads into contact with the rotor. The power multiplication factor then increases rapidly at the pad-to-rim
contact
so more of the lever stroke is used to apply greater braking power with improved control.

Reach Adjust

Brake lever is equipped with a reach adjust mechanism. The distance from handlebar grip to lever can be adjusted to
suit any hand size, type of riding and individual rider preferences.

I-Spec EV

I-Spec EV creates a clean and action-optimized cockpit that provides greater focus and flexibility for a wider range
of riders.

• Wider adjustment range allows riders of various styles, preferences and body styles to adjust to the optimal
  position
• Ergonomic design, quicker lever access, and light operation enhance rider comfort and concentration

With its wider adjustment range, I-Spec EV levers can be adjusted to the optimal position to match a wider range of
riding styles (Enduro / XC / etc.), rider preferences and rider anatomies (hand and arm alignment).

I-Spec EV increases brake lever rigidity by moving the brake clamp position inward to create an extra point of
contact between the bar and the lever. This additional bracing drastically increases bike control and braking
engagement while maintaining space between the clamp and support point for other handlebar accessories.

Features

• Short stroke Servo-Wave mechanism for quick pad engagement and more power for aggressive riding
• An increase in pad clearance at the calliper has enabled Shimano to use their proven Servo Wave technology.
  As the brake lever is pulled a cam linkage enables rapid pad to rotor engagement, at the point of
  contact the cam moves across multiplying the leverage ratio and increasing the stopping power
• Tool free reach adjustment for custom lever feel and position
• Forged alloy 1.5 finger brake lever for optimum strength and reliability
• Mineral oil brake fluid is non-corrosive and less hazardous than conventional hydraulic brake fluid
• Hinged clamp for quick installation
• I-Spec EV compatible
