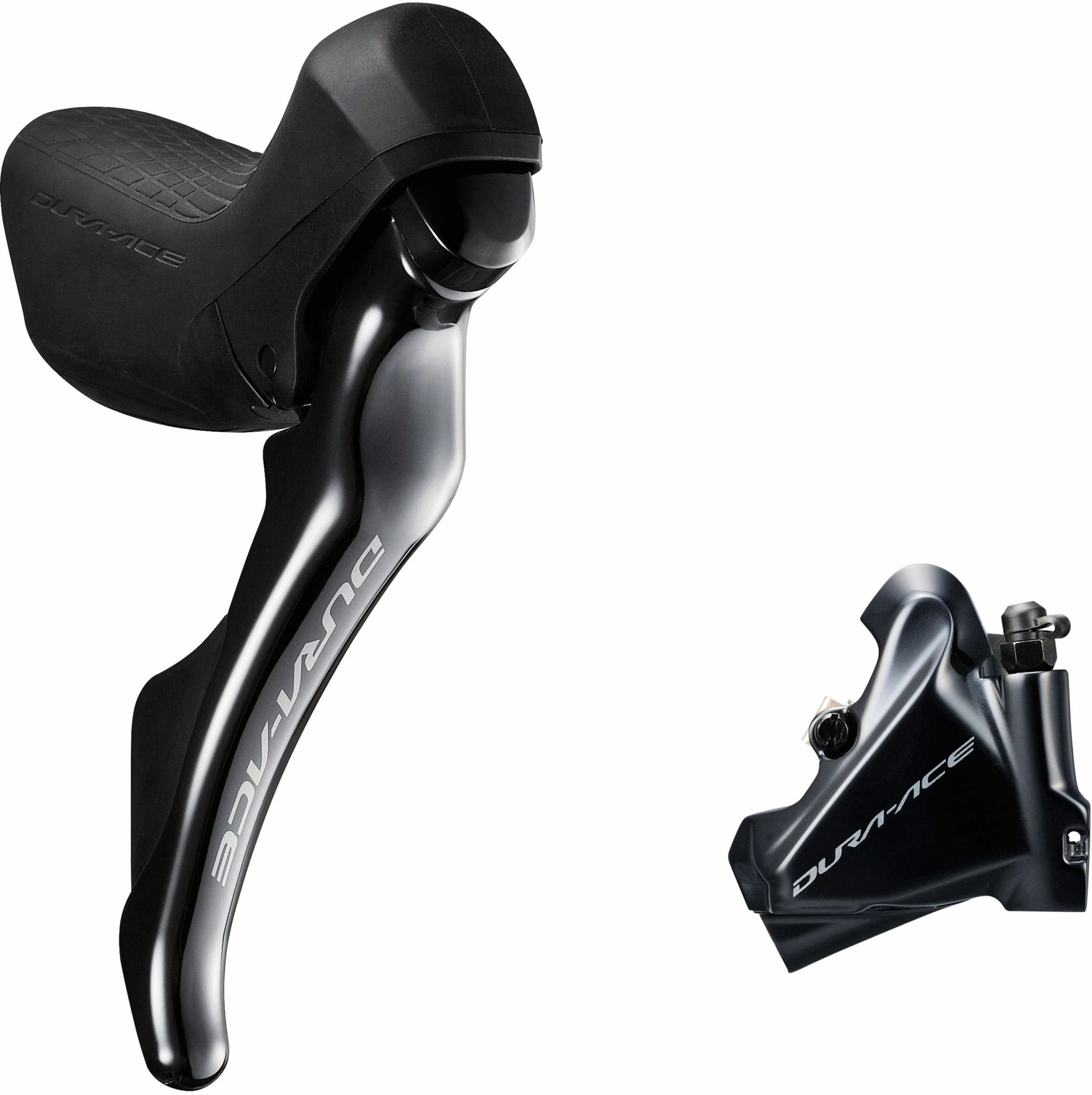

Shimano Dura-Ace ST-R9120 Hydraulic STI Lever And Flat Mount Caliper Set

Combining Shimano’s well-praised hydraulic disc brake technology with light action mechanical shifting, the Dura-Ace
R9120 levers have a shorter lever stroke, expanded reach adjust, and lighter front shift action.

The Dura-Ace R9100 series of Flat Mount disc brakes bring powerfully integrated brake performance to the highest
rungs of road cycling. The R9170 calipers are light weight while offering better control and confidence in race
conditions.

Technology

Dual Control Lever

DCL stands for Dual Control Lever. It has brake and shifting functions in the system and enables easy operation.

Ergonomic innovation is probably more critical to the higher standard performance than the added gearing. The shift
internals borrow the robustness from our MTB technology and are so smooth and effortless that one finger shifts
front and rear are possible. Indeed, shifting is the ultimate act of Shimano Total Integration, and simply has
to be experienced to be understood.

The Dura-Ace / Ultegra / 105 Dual Control Lever have an optimized structure with features that include the lighter
weight pivot section in the near side of the shifting unit and the integral shifting cable for lighter steering.
Its
many component parts are made so compact and precise to achieve unprecedented high-speed performance.

Servowave Action

When you pull a Servowave brake lever, initial pad travel is fast, so little lever movement is needed to bring the
pads into contact with the rotor. The power multiplication factor then increases rapidly at the pad-to-rim
contact
so more of the lever stroke is used to apply greater braking power with improved control.

Reach Adjust

Brake lever is equipped with a reach adjust mechanism. The distance from handlebar grip to lever can be adjusted to
suit any hand size, type of riding and individual rider preferences.

SP41

With OT-SP41 the entire length of the outer casing is pre-lubricated with a special silicone grease for quick and
precise shifting performance. OT-SP41 maximally reduces the inner cable friction to provide quick response to
operations and easy/effortless shifting. Moreover, power loss due to delay in shifting and fatigue by shifting
especially when you ride on the terrain with many ups and downs as well as a long distance is also reduced.

One Way Bleeding

“One Way Bleeding” was developed for quick and easy prevention of air in our hydraulic system. We have streamlined
the oil route throughout the system to prevent air bubbles from being captured in the system.

One way oil routing plus a funnel tool with mineral oil provides an easy and clean bleeding system.

Ice Technologies Freeza

Ice Technologies combined with Freeza disc brake rotor construction rapidly dissipates heat for more consistent
braking performance in extreme conditions, longer pad life, and less brake fade and noise.

• Lightweight clad rotors with heat dissipating paint on exposed aluminum layer segments provide superior
  cooling, consistent brake performance, and lighter operation under all conditions
• Clad brake pads with Aluminum/Stainless fins support rapid heat dissipation which helps reduce maintenance,
  provide longer pad life, and create less brake fade and noise

Ice Technologies and Freeza provide consistent braking performance with longer pad life, less brake fade and noise.

The lightweight and highly efficient three-layer sandwich structure of stainless steel–aluminum–stainless steel
enhances heat dissipation.

140°C reduction in heat (vs stainless steel disc brake rotor)

Reduce more 10°C by high heat dissipation paint (equipped: SM-RT900 and RT-MT900)

Features

• Precision-engineered high performance Dura-Ace hydraulic disc brake STI’s give you control, modulation and power with minimal effort in all riding conditions
• Dura-Ace R9100 STI are lightweight thanks to carbon fibre lever blades, carbon composite bracket body, and a titanium clamp band / fixing bolt
• Hydraulic brake lever provides excellent stopping power with less effort especially from the hood position
• Hydraulic reservoir tank provides pad to rotor clearance auto-adjust maintaining braking performance during pad wear
• Shift cables routed under the bar tape using Polymer coated inner wires make for a smooth shift action, providing faster, lighter shifting
• Vivid Index shifting with short stroke to the release levers gives a quick and accurate shift
• Gear shift cables can either be routed round the front or rear of the handlebar to suit all rider
  preferences
• Ergonomic shift arc follows natural hand movement with inward shift stroke distance reduced for rapid and precise gear changes
• Small volume ergonomically designed smooth lever hoods for added comfort
• Finely tuneable reach adjusters for the levers enable custom fitment for all hands
• Free stroke adjustment for pad to rotor contact setting
• Kit contains right or left hand bled ST-R9120 STI, BR-R9170 flat mount brake caliper with pads, hoses and mineral oil (without rotors or adapters)
