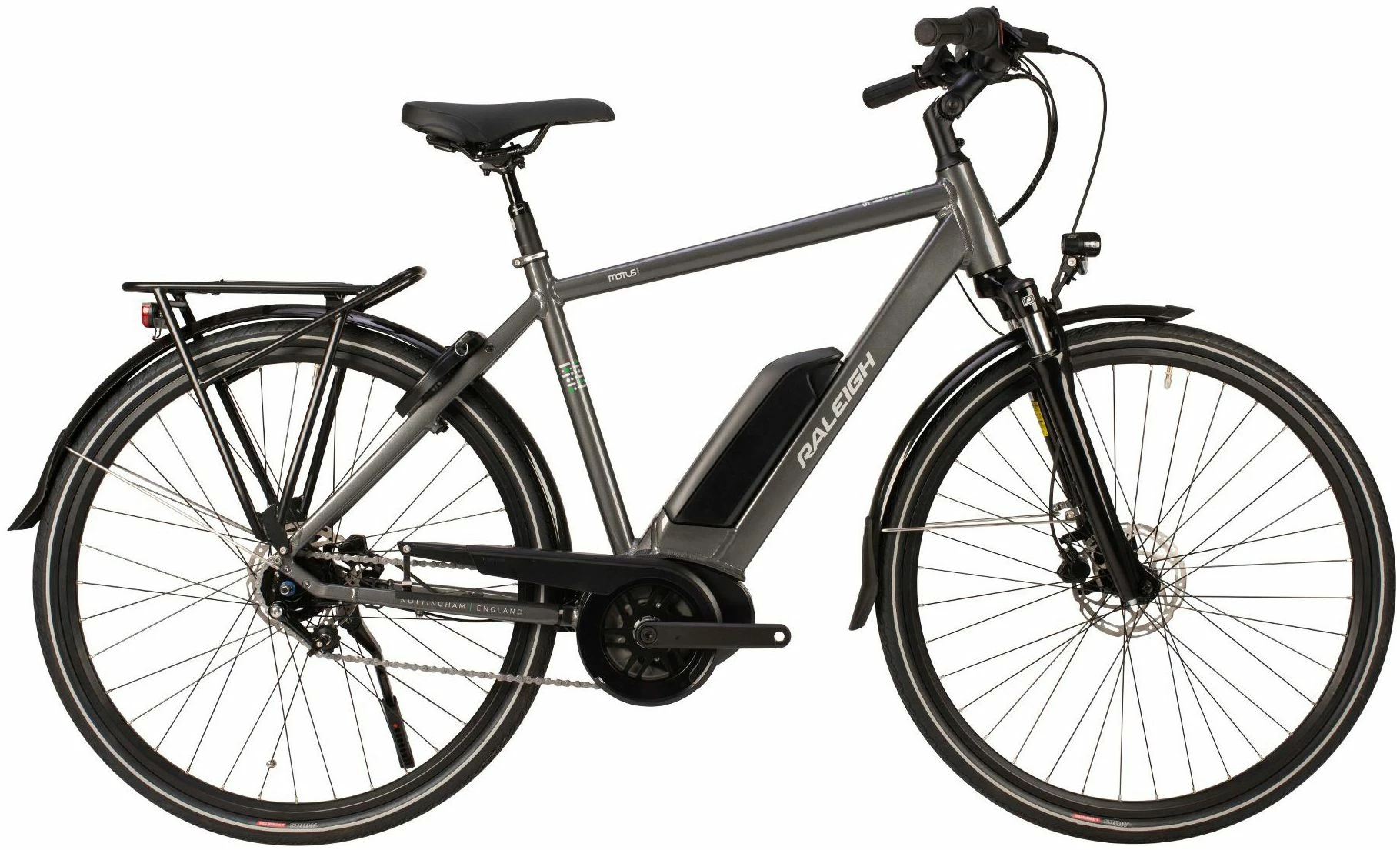

Raleigh Motus Tour Derailleur Open 2020 Electric Bike

Elevate the way you ride with the Raleigh Motus Tour; for the adventure ahead! Designed in Britain and made in
Europe, our mid-range Motus uses sophisticated technology to deliver a premium electric bike experience.

The 400WH battery will allow you to ride for up to an impressive 108 miles on a single charge*. The impressive Active
Line motor from Bosch is lightweight and almost completely noise free so you can be fully immersed on your ride.
What’s more, with a maximum assistance output of 250% you can travel further and explore more.

The refined Intuvia Display offers maximum clarity and convenience with the sizable display screen placed in the
centre of the handlebars for easy readability with the control unit placed safely on the left of the handlebar. The
gear shift indicator ensures you’re riding in the correct gear to optimise battery consumption to increase your
bike’s range and the smart Intuvia can even charge your phone!

The Motus Tour is a fully equipped with extra features and quality components such as disk brakes for ultimate
stopping performance, reflective ebike-specific tyres, a traditional bell, wheel lock for added security, adjustable
handlebar stem, suspension saddle and integrated lights. Plus, you get the added choice between hub or Derailleur
gearing systems dependant on your requirements.

Available in a range of frame styles, sizes and colours. * Depending on mode selected, rider weight and road and
weather conditions

Important

Please be aware that this bike is regulated in line with existing Electric Power Assisted Cycles regulations. Any
modification to the bike will invalidate the guarantee and in particular any modification which increases the power
of the motor and/or the top assisted speed of the bike may make the rider liable to prosecution. Excluding statutory
obligations Raleigh will not be held responsible for any injuries incurred following any modification to this
product.

Features

• Bosch 400wh PowerPack: Lithium ion batteries offer an impressive life expectancy and will last at least 1000
  full charges. The 400WH semi-integrated battery will allow you to ride for up to an impressive 108 miles on a
  single charge
• Bosch Active Line Motor: Re-engineered Active Line Motor from Bosch – feather light and quiet. The newly
  re-designed Active Line motor is 25% smaller than its predecessor, weighs in at a feather light 2.9kgs and is
  almost completely noise free so you can get the maximum enjoyment out of your journeys.
• Bosch Intuvia: Bosch displays show everything you need to know whilst riding. The sophisticated Intuvia Display
  offers maximum clarity and convenience with the display screen placed in the centre of the handlebars for easy
  readability and the control unit is safely on the left handlebar.

Specifications

• Brake Lever: Tektro T285 Hydraulic Disc brake
• Brake Type: Hydraulic Disc Brake
• Brakes Front: Tektro T285 Hydraulic Disc Brake
• Brakes Rear: Tektro T285 Hydraulic Disc Brake
• Fork: Suntour Nex Suspension Fork – 56mm – travel
• Frame: Alloy Frame AL6061
• Grips: Comfort Grip
• Handlebar: Comfort XLC Handlebar Black
• Headlight: Trelock Front Light
• Headset: Low Stack – semi integrated
• Left Shift Lever: Bosch Intuvia Controller
• Rear Light: Trelock Rear Light
• Rim: Black 36 Hole Disc Brake Compatible
• Stem: Adjustable Angle Alloy
• Battery: Bosch Power Pack Frame Mount 400Wh – 36V
• Battery Charging Time: 3.5 hours
• Battery Integration: External
• Battery Watts per Hour: 400Wh
• Display: Bosch Intuvia multifunctional display with operation unit & walk-assistance
• Display Bracket: Bosch Intuvia Display Holder
• Motor: Bosch Active Line
• Range: 108 miles
• Sensor: Bosch Speed Sensor
• Carrier: Alloy Rack
• Mudguards: Full Mudguards
• Saddle: Selle Royal Milo +
• Seat Clamp: Quick Release Alloy Clamp 34.9mm
• Seat Post: Alloy Suspension Seatpost 31.6
• Front Wheel Hub: Alloy 36 Hole Black Disc QR
• Rear Wheel Hub: Alloy Cassette Hub 36 Hole Disc QR
• Tubes: 700 x 38c Car Type FRT, Easy Change Rear
• Tyres: Mitas 700C x 42 with reflective stripe and double duty puncture protection
• Wheel Set: Alloy Double wall – 36 spoke – 700c on Alloy Disc Hub
• Bottom Bracket: Bosch Integrated in motor
• Chain: KMC 8 Speed
• Crankset: Raleigh Alloy Bosch Crankset
• Gear Shift: Derailleur Gear
• Number of Gears: 8
• Pedals: Comfort Pedals with Anti Slip
• Rear Derailleur: Acera 8 Speed
• Shift Lever: Shimano 8 Speed
• Sprocket: Shimano 22t Sprocket
