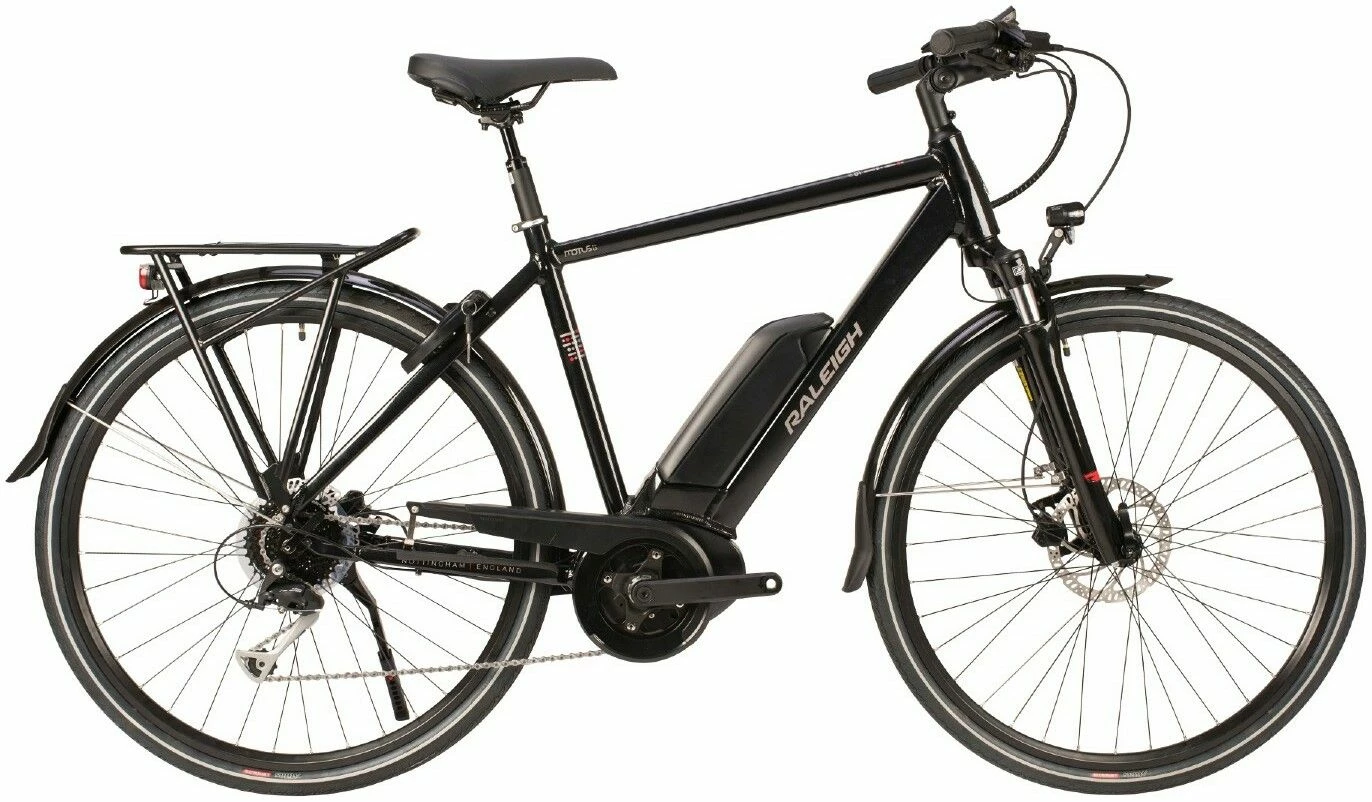

Raleigh Motus Grand Tour Derailleur Open 2020 Electric Bike

Featuring top specification components and sophisticated ebike technology, the Motus Grand Tour is our most
sophisticated electric bike model in the Motus range.

The Raleigh Motus Grand Tour boasts a powerful 500wh Bosch PowerPack battery and Active Line Plus motor for ultimate
performance. Delivering an impressive maximum power output of 270%, the Active Line Plus motor makes struggling up
hills a thing of the past. Expect to be impressed with the 500wh battery, averaging at 135 miles per single charge,
you can ride assured it won’t let you down.

Conveniently centrally located, you can keep track of your remaining range, battery life and speed via the Bosch
Intuvia display. For ease of use, the control unit is located right at your fingertips by your handlebar grip,
allowing you to change power modes safely and quickly.

Well equipped, the Motus Grand Tour is one of our best-specced bikes. With powerful, integrated lights, you’ll be
ready to go at any time of the day. You’ll never need to worry about muddy paths thanks to the protection offered
from the full mudguards. For safety and security, the Motus Grand Tour comes with a built in rear wheel lock and
reflective electric bike specific tyres. With Tektro T285 Hydraulic Disc brakes and Shimano 9 speed gears, you’re in
complete control. Hydraulic disc brakes stop you faster than traditional rim brakes, even in wet conditions. Shimano
gears give you smooth shifting and a usable range to get the maximum performance out of your Motus Grand Tour,
whether using electric assistance or not. Whether you’re looking to get back into cycling, start cycling or are
looking for some electrical assistance, the Raleigh Motus Grand Tour is the ideal choice. Designed with you in mind,
the Motus Grand Tour is an elegant electric bike, built for performance, comfort and the joy of adventure.

Features

• Bosch 500wh PowerPack: Lithium ion batteries offer an impressive life expectancy and will last at least 1000
  full charges. The 500WH semi-integrated battery will allow you to ride for up to an impressive 135 miles on a
  single charge
• Bosch Active Line Plus Motor: A little extra power output, offering extra assistance on moderate inclines. The
  Active Line Plus motor makes its first appearance on a Raleigh electric bike offering an almost completely noise
  free experience and a higher level of pedal rate detection to improve cycling efficiency so you can get the
  maximum enjoyment out of your journeys.
• Bosch Intuvia: Bosch displays show everything you need to know whilst riding. The sophisticated Intuvia Display
  offers maximum clarity and convenience with the display screen placed in the centre of the handlebars for easy
  readability and the control unit is safely on the left handlebar.

Specifications

• Brake Lever: Tektro T285 Hydraulic Disc brake
• Brake Type: Hydraulic Disc Brake
• Brakes Front: Tektro T285 Hydraulic Disc Brake
• Brakes Rear: Tektro T285 Hydraulic Disc Brake
• Fork: Suntour Nex Suspension Fork – 56mm – travel
• Frame: Alloy Frame AL6061
• Grips: Comfort Grip
• Handlebar: Comfort XLC Handlebar Black
• Headlight: Trelock Front Light
• Headset: Low Stack – semi integrated
• Left Shift Lever: Bosch Intuvia Controller
• Rear Light: Trelock Rear Light
• Rim: Black 36 Hole Disc Brake Compatible
• Stem: Adjustable Angle Alloy
• Battery: Bosch Power Pack Frame Mount 500Wh – 36V
• Battery Charging Time: 4.5 hours
• Battery Integration: External
• Battery Watts per Hour: 500Wh
• Display: Bosch Intuvia Multifunctional Display With Operation Unit & Push-Assistance
• Display Bracket: Bosch Intuvia Display Holder
• Motor: Bosch Active Line Plus
• Range: 135 miles
• Sensor: Bosch Speed Sensor
• Carrier: Racktime Alloy Rack With Integrated Light
• Mudguards: SKS Full Mudguards
• Saddle: Selle Royal Milo +
• Seat Clamp: Quick Release Alloy Clamp 34.9mm
• Seat Post: Alloy Suspension Seatpost 31.6
• Front Wheel Hub: Alloy 36 Hole Black Disc QR
• Rear Wheel Hub: Alloy Cassette Hub 36 Hole Disc QR
• Tubes: 700 X 38c Presta
• Tyres: Mitas 700C x 42 with reflective stripe and double duty puncture protection
• Wheel Set: Alloy Double wall – 36 spoke – 700c on Alloy Disc Hub
• Bottom Bracket: Bosch Integrated In Motor
• Chain: KMC 9 Speed
• Crankset: Raleigh Alloy Bosch Crankset
• Gear Shift: Derailleur Gear
• Number of Gears: 9
• Pedals: Comfort Pedals with Anti Slip
• Rear Derailleur: Alivio 9 Speed
• Shift Lever: Shimano 9 speed
• Sprocket: Shimano 9 speed 11-34 Cassette
