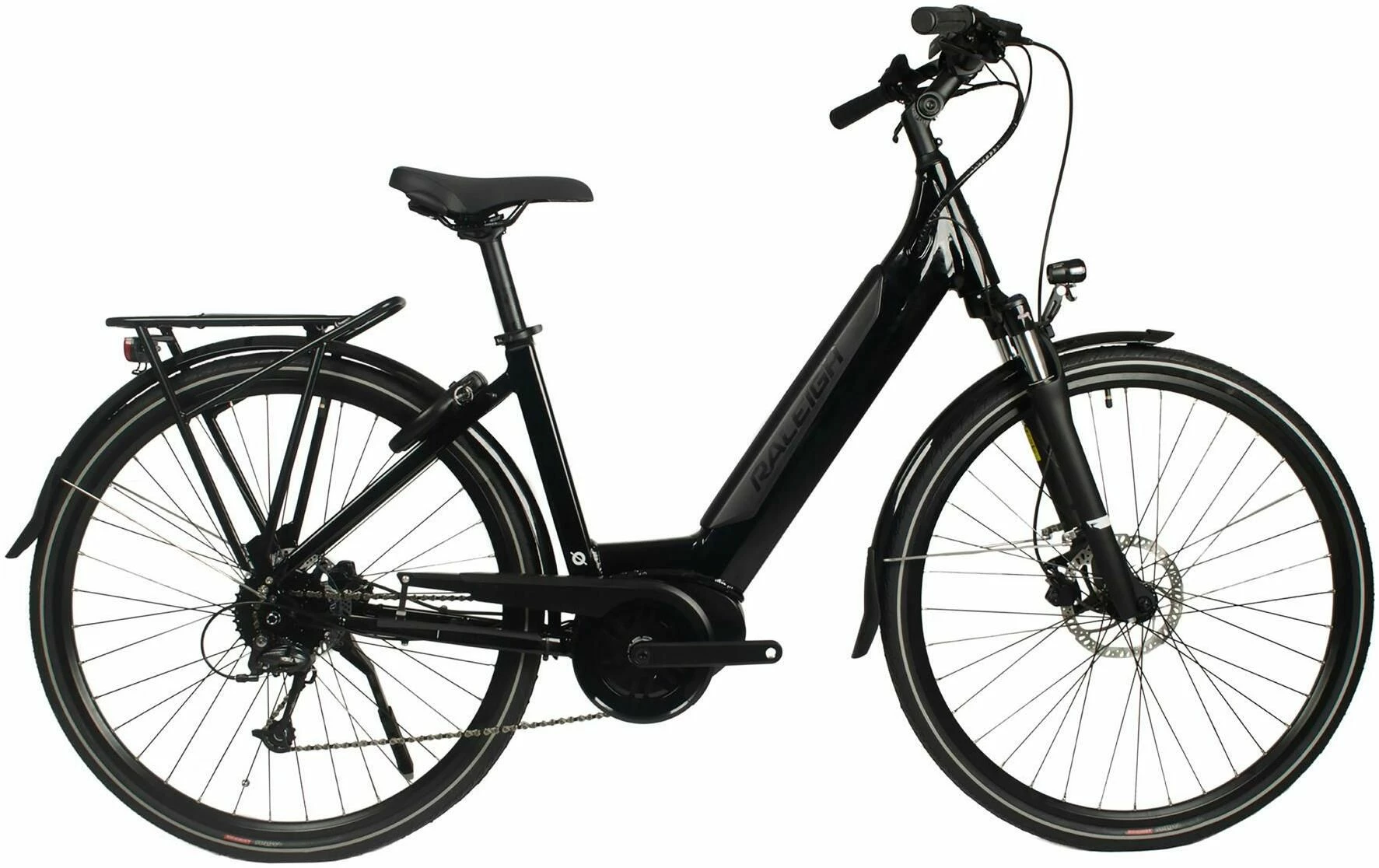

Raleigh Centros Derailleur Low Step 2020 Electric Bike

Designed in Britain and made in Europe, the all-new Centros is our most technologically advanced electric bike to
date and it’s back with a sleek new look. Effortless power and timeless style come together to give you a luxurious
ride that fits your lifestyle seamlessly.

If you’re looking for a subtle, discreet and stylish electric bike then the Centros is the bike for you. The fully
integrated 400WH battery from Bosch gives the frame a smooth finish and makes the design even more stunning. This
battery is exclusive to our Centros range and is capable of delivering up to 180km of effortless performance from a
single charge.

The Active Line plus motor has been re-engineered to offer an almost completely noise-free experience and can perform
over 1,000 measures per second to help provide the optimum level of assistance throughout your ride. With a maximum
power output of 270% of your pedal power, you’ll find that struggling up hills is a thing of the past. The luxurious
Bosch Intuvia Display offers maximum clarity and convenience with a display screen in the centre of the handlebars
for easy readability on the go and controls safely on the left handlebar.

The Centros has been designed to give the rider a luxurious experience on every ride with premium features such as
the integrated front and rear lights keep you safe on your commute as well as a rear wheel lock added for security.
Front suspension works to provide a smooth riding experience enhanced by the world’s most comfortable saddle from
Selle Royal. Disk brakes provide ultimate stopping power, and you’ll be prepared for any scenario with the bikes
fully equipped design featuring mudguards, a kickstand and pannier rack.

ImportantPlease be aware that this bike is regulated in line with existing Electric Power Assisted Cycles
regulations. Any modification to the bike will invalidate the guarantee and in particular any modification which
increases the power of the motor and/or the top assisted speed of the bike may make the rider liable to prosecution.
Excluding statutory obligations Raleigh will not be held responsible for any injuries incurred following any
modification to this product.

Features

• 400WH Fully Integrated Bosch Battery: The 400WH fully-integrated battery will allow you to ride for up to an
  impressive 180km on a single charge and integrates seamlessly into the frame giving the e-bike a sleek finish
• Bosch Active Line Plus Motor: The all new lightweight motor from Bosch performs over 1,000 measures a second and
  provides a maximum power output of up to 270% of your pedal power.
• Bosch Intuvia Display: Our most sophisticated system yet allows you to get the most from your ride with ease.
  The operating system is quick and easy to use and the central positioning and clear, large screen allows the
  rider to easilty monitor the performance throught a ride.

Specifications

• Brakes Front: Shimano M315 Hydraulic Disc Brake
• Brakes Rear: Shimano M315 Hydraulic Disc Brake
• Fork: Suntour Nex Suspension Fork 63mm Travel
• Frame: Alloy Frame AL6061
• Grips: Comfort Grip
• Handlebar: Comfort Handlebar Black
• Headlight: Axa Front Light
• Headset: Low Stack – semi integrated
• Left Shift Lever: Bosch Intuvia Controller
• Rear Light: Trelock Rear Light with Slowing Function
• Rim: Black 36 Hole Disc Brake Compatible
• Stem: Adjustable Angle Alloy
• Battery: Bosch Power Tube 400Wh – 36V
• Battery Charging Time: 3.5 hours
• Battery Integration: Internal
• Battery Watts per Hour: 400Wh
• Display: Bosch Intuvia Multifunctional Display With Operation Unit & Push-Assistance
• Display Bracket: Bosch Intuvia Display Holder
• Motor: Bosch Active Line Plus
• Range: 111 miles
• Sensor: Bosch Speed Sensor
• Carrier: Racktime Aluminium Rack
• Mudguards: Eurofender Full Mudguards
• Saddle: Selle Royal Milo +
• Seat Clamp: Quick Release Alloy Clamp 34.9mm
• Seat Post: Alloy Seatpost 31.6mm
• Front Wheel Hub: Alloy 36 Hole Black Disc QR
• Rear Wheel Hub: Alloy Cassette Hub 36 Hole Disc QR
• Tubes: 700 X 38c Presta
• Tyres: Mitas 700C x 42 with reflective stripe and double duty puncture protection
• Wheel Set: Double Wall Rim 36 Hole 700c On Alloy Disc Hub
• Chain: KMC E9 Speed
• Crankset: Alloy Bosch Crankset
• Gear Shift: Derailleur Gear
• Pedals: Comfort Pedals with Anti Slip
• Rear Derailleur: Shimano Deore 9 Speed
• Sprocket: Shimano 9 speed 11-34 Cassette
