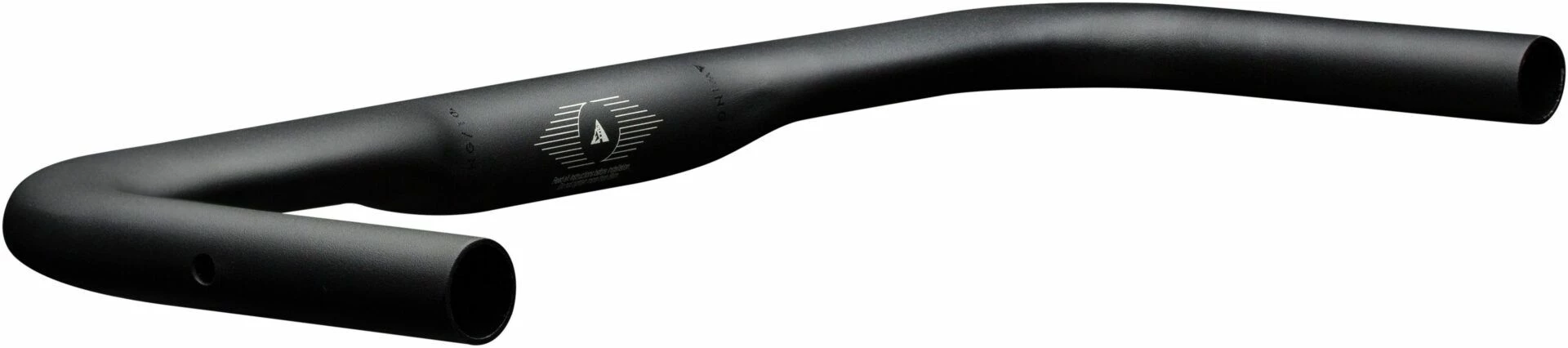

Profile Design Wing / 10A TT Triathlon Base Bar

The Wing / 10a offers great fit versatility – allowing the rider to fine-tune the grip height for their riding style
and comfort preferences. The straight hand grips are part of the flippable design that allows the grip height to be
modified by 10mm. For optimal aero performance, the bar should be set in the low position to increase the separation
from the armrests.

Aero

The Wing / 10a employs a truncated airfoil (Kamm Tail) to stay within UCI regulations while offering the performance of
a much deeper section. This, along with tidying up the underside of the wing where the cables used to exit has led
to a small improvement in performance. For optimal aero performance the bar should be set in the low position to
increase the separation from the armrests.

Specifcation

• Weight: 265g (38cm)
• Width: 36, 38, 40, 42, 44cm (center to center)
• Center Clamp Diameter: 31.8mm
• Clamp Width: 100mm (on all bar sizes)
• Clip Compatible: Yes
• Material: 6061-T6 AL
• Pursuit Reach: 160mm (center to tip)
• Grip Offset: ± 5mm
• Pursuit OD/ID: 23.7 / 20.3mm
• Drop Outsweep: No
