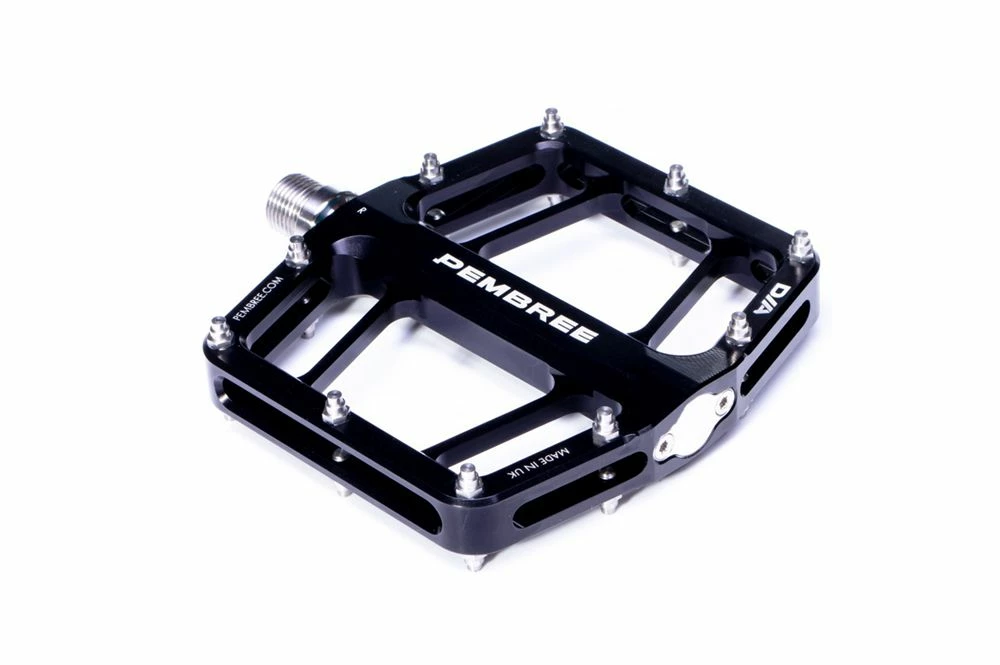

Pembree D2A Pedals

The Pembree D2A is designed as the ultimate racers flat pedal. Balancing perfectly between traction, strength and weight. Designed and manufactured by Pembree in the UK with the strictest environmental standards. Riders of the D2A benefit from unrivalled grip via Pembree designed and manufactured Traction Pins, the strength of a stainless-steel spindle and premium bearings. As always from Pembree the D2A pedal is totally carbon neutral.

Features

• Carbon Neutral
• Spindle: 17- 4 PH Stainless Steel
• Pedal Body: 2014 T6 Aluminium
• Traction Pins: Stainless Steel
• End Cap: 6082 T6 Aluminium
• Inner Bearings: IGUS JSM
• Outer Bearings: Sealed Ball Bearings
• Pins: 10 Traction Pins per side
• Body Dimensions: 100mm x 110mm x 15mm(centre)
• Weight: 446g
• Warranty: 5 years, 2 years bearings

Extended Features

Pedal Body

Large pedal size ensures class leading traction and under foot support. Chamfers around the pedal body ensures that mud is evacuated quickly.

• Material: 2014 T6 Aluminium. This is far stronger than the typical 6062 Aluminium that most pedals are made from. It was specifically developed for critical parts in the aerospace industry where strength and weight were paramount.
• Manufacturing Method: 5 axis CNC Milling from solid billet of aluminium
• Manufacturing Location: Pembree, East Sussex, England
• Sustainability: Widely and easily recyclable

Spindle

• Material: 17-4 PH Stainless Steel is a precipitation-hardening (PH) stainless steel that provides an outstanding combination of high strength, good corrosion resistance and good mechanical properties.
• Manufacturing Method: CNC Turned
• Manufacturing Location: Precision Products, Brighton, England. Aerospace accredited
• Sustainability – Widely and easily recyclable

Traction Pins

• Material: 304 Stainless Steel
• Manufacturing Method: CNC Turned
• Designed by Pembree with exceptional traction they are easily replaceable if damaged.
• Manufacturing Location: Precision Products, Brighton, England. Aerospace accredited
• Sustainability: Widely and easily recyclable

Shaft Seal

Shaft seals are designed specifically to keep contamination out of the inside of the pedal. Material: Nitrile Rubber and Steel

• Manufacturing Location: INA China
• Sustainability: Recyclable by Pembree

Sealed Ball Bearings

Pembree pedals are manufactured to a much tighter tolerance making them ideal for the highest quality Sealed Ball Bearings. They are sealed on both sides to ensure years of maintenance free riding.

• Manufacturing Location: TBC
• Sustainability: Recyclable by Pembree

End Cap

Slimline end cap maximises the distance between the ball bearings and the plain bearing, resulting in more a stable spindle, protecting the bearings and their lifetime.

• Material: 6082 T6 Aluminium
• Manufacturing Method: CNC Turned
• Manufacturing Location: Precision Products, Brighton, England. Aerospace accredited.
• Sustainability: Widely and easily recyclable

IGUS Plain Bearing

IGUS plain bearings are designed to provide years of use with little to no maintenance.

• Material: Polymer
• Manufacturing Location: IGUS Germany
• Sustainability: Recyclable by Pembree

Packaging

Cardboard is recycled paper and is in turn recyclable. This helps to reduce the carbon footprint of the product

• Material: Recycled Paper
• Manufacturing Location: Proteus, East Sussex
• Sustainability: Widely and easily recyclable
