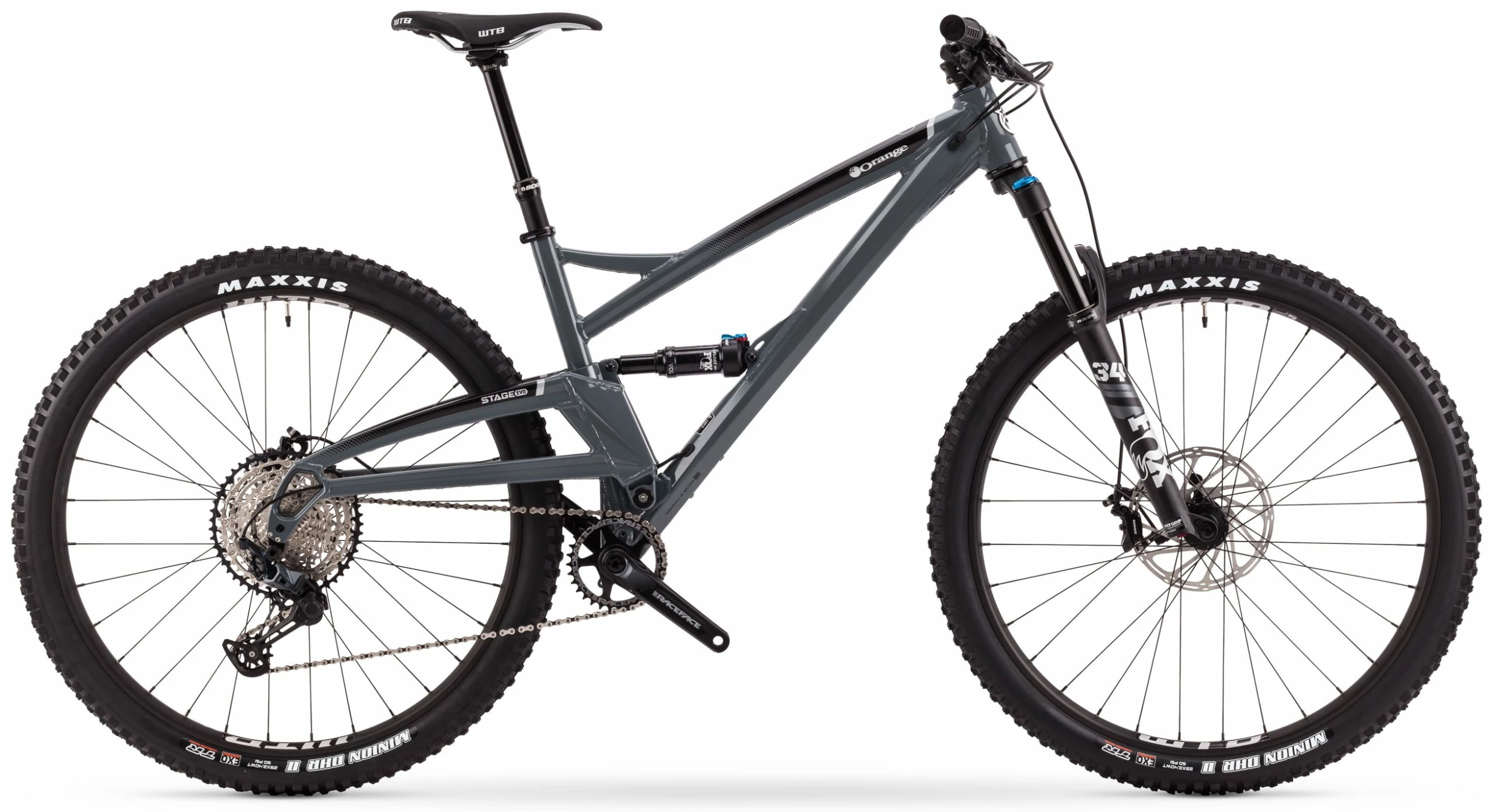

Orange Stage Evo Pro 2021 Bike

For those who love their wheels bigger, there’s the 29 inch wheeled Stage Evo, it features equally radical geometry
numbers, especially for a bike of its category. It majors on adaptability and as such shares the same Evo suspension
progression to give our tuned shocks that wonderful bottomless feel. Which wheel size you opt for is a personal
choice. If your local terrain brings you long climbs, big descents and teeth chattering root sections the 29er Stage
Evo is your perfect rig.

Frame Evolution

Instantly, you can see the frames are Orange, with our distinctive layout and profiles. They are fabricated in
6061-T6 Aluminium by the craftsmen at our Halifax Frame Works. Brand new tooling and jigs were specifically built
and developed for these new models, leaving no stone unturned when it comes to new frames’ feature list.

The laterally stiff single-pivot platform is a format we feel we own. We have more experience with this suspension
system than any other bike company out there. For us, working with component manufacturers to achieve the perfect
shock tunes for our frames is one of the most exciting aspects of the job. It’s a two-way street as the Orange
single-pivot system is a perfectly clean platform for manufacturers to develop their shocks with too, So it’s a
win-win situation for everyone.

The Evo frames have all the features you would expect from Orange and a few touches you probably may not notice at
first glance. To mention a few:
The Evo’s offset asymmetric pivot gives us scope to run various sizes of chainring or chain-lines (hey, you never
know).
The geometry is designed for a reduced offset fork which allows us to lengthen the cockpit and keep the riders
weight balanced in the sweet spot, while making the most of the front wheel’s grip in turns.
Small details like bottle bosses, cleaner cable routing and space for piggy-back shocks – even on a short
travel-platform, show we’ve been listening to our test riders’ feedback and implementing subtle changes that just
make everything better.

The Evo Geometry Concept

The thinking behind the Evo geometry on these two models is to bring the feel and confidence of the big-travel enduro
bike into the realm of the aggressive short-travel trail bike. With a lighter frame construction and audacious
angles these bikes are truly eye-opening.

The geometry has a familiar effective top tube length which means your cockpit is a comfortable space when climbing.
Flip that gradient downwards, slam the dropper post and step-up out of the saddle to descend and the Evo comes into
its own. The long reach gives the rider plenty of space to move around the bike, keeping the weight over the front
wheel – this is also helped by the reduced offset fork.

The slacker Evo head angle lets the fork do its job, right it in the firing line, and keeps everything stable with
its long wheel base.

Ultimately you will not believe this is a short-travel platform. Rapid, reactive and beautify balanced, the Evos defy
logic. They are the Evolution of the trail bike as we know it.

Why The Stage Evo?

• Brand New Frame designed and built in Britain
• 5 year frame warranty with Limited Lifetime Crash Replacement
• Single pivot suspension for the utmost performance, efficiency and reliability
• New Radically revised progressive suspension frame curve
• New Aggressive Evo geometry optimised for 130mm front/120mm rear travel
• Bottle cage mounts
• 29 inch wheels
• Boost 148 rear hub spacing
• Internal dropper post routing​

Specifications

Frame and Forks

• Frame: 6061-T6 Monocoque UK Formed Custom Aluminium Tubing
• Forks: Fox Performance 34 Float 130mm 29
• Headset: Cane Creek 49mm for Tapered Steerer

Drivetrain

• Crankset: Shimano Deore 32 Tooth
• Bottom Bracket: Shimano Hollow Tech II
• Rear Derailleur: Shimano SLX 12 Speed
• Freewheel: Shimano SLX 10-51 Tooth 12 Speed
• Chain: KMC 12 Speed

Braking/Shifting

• Shifters: Shimano SLX 12 Speeed
• Brakes: SRAM Guide RE 200mm / 180mm

Wheels

• Wheelset: WTB ST Light i30 on Strange 29
• Tyres: Maxxis Minion DHR II 2.4 EXO TR 29

Finishing Kit

• Handlebars: Burgtec RideWide Enduro DB 800mm
• Grips: Strange Grappler Lock-On
• Stem: Burgtec Enduro Black 42.5mm
• Seatpost: SDG Tellis 150mm
• Seat Clamp: Strange Bolted
• Saddle: WTB Silverado Comp
