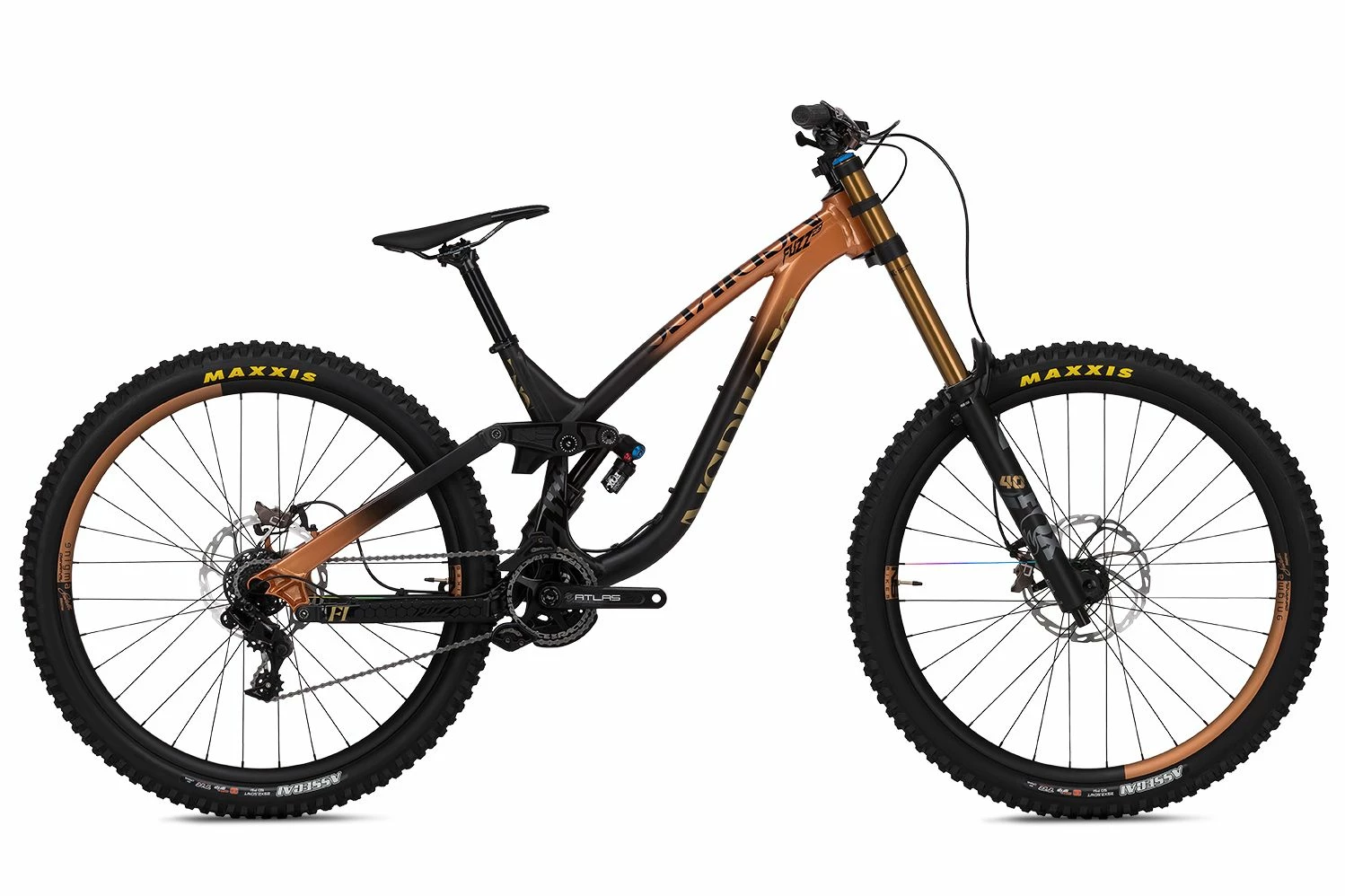

Ns-bikes NS Fuzz 29 1 2021 Bike

The Fuzz has been thrashed and flipped by Szymon Godziek at rampage and proved itself in the racing environment, taking podiums at major downhill events worldwide.

It’s been ridden at the WC and IXS downhill cup by polish national champ, Slawek Lukasik and the other fast boys from the NS factory racing team. Built around a super tough alloy frame, these bikes have an incredible reliability record. The bikes have one of the most progressive geometries on the market and have offset headset cups that allow reach to be adjusted to personal tastes and track requirements. A 4-bar horst link floating shock suspension design keeps the rear of the bike planted. The 29” versions sport a massive one piece rocker that keeps the longer rear end of the bike incredibly stiff. The frame is built with 6061-t6/ 6066-t6 aluminum tubes and double-pass welds for extra strength and we use big diameter max bearings for durability. There is an option of internal and external cable routing. Adjustable reach, super progressive geometry, dialed kinematics and great spec – this is what made this bike so popular among riders and reviewers. Available in 29” and 27.5” versions.

Features

• Offset Headset Cups Allow Reach To Be Adjusted: Reach can be adjusted by +/- 8mm.
• Massive One Piece Rocker: Keeps the longer rear end of the 29” bike incredibly stiff.
• 4-Bar Horst Link Suspension: 4-Bar Horst Link Suspension with unique floating shock design.
• Modern Gemetry: One of the most progressive on the market

Specifications

Frame and Forks

• Frame: NS Fuzz 29 with 190mm travel, 1.5” head tube with custom reach adjustable offset cups (+/- 16mm), AL6061-T6 +AL6066-T6, custom formed and butted tubes
• Forks: Fox Float 40 Factory 203mm travel, Grip 2, HSC, LSC, HSR, LSR, 110 x 20mm Boost, 1 & 1/8” steerer, 56mm offset
• Rear Shock: Fox Float X2 Performance with LSC, LSR, Trunnion 225 x 75mm

Drivetrain

• Rear Derailleur: Sram GX DH X-HORIZON™ 7 Speed
• Cassette: Mozartt Presto ST with bashguard
• Chain: Sram, 11 Speed
• Crankset: Race Face Atlas 165mm 36 Tooth
• Chainguide: Mozartt Presto ST with bashguard

Braking/Shifting

• Shifters: Sram GX DH, 7 Speed
• Brakes Levers: Hayes Dominion
• Brakes: Hayes Dominion A4, 200mm

Wheels

• Rims: NS Enigma Rock 29″, 32 Hole, tubeless compatible
• Spokes: Spokes with 14mm nipples
• Front Hub: NS Rotary 20 Boost 110 x 20mm disc (sealed bearings)
• Rear Hub: NS Rotary Cassette 157 x 12mm (sealed bearings)
• Tyres: Maxxis Assegai MaxxGrip 3C DH TR 29.5 x 2.50

Finishing Kit

• Handlebar: NS Licence 31.8, 820mm
• Grips: NS Hold Fast
• Headset: NS custom 1.5″ EX56/56, sealed bearings, reach adjustable offset cups (+/- 16mm)
• Stem: NS Direct Mount 31.8 (40-48mm / 2 positions)
• Seatpost: Kalloy, 30.9mm
• Saddle: Octane One Crit, CrMo hollow rails
