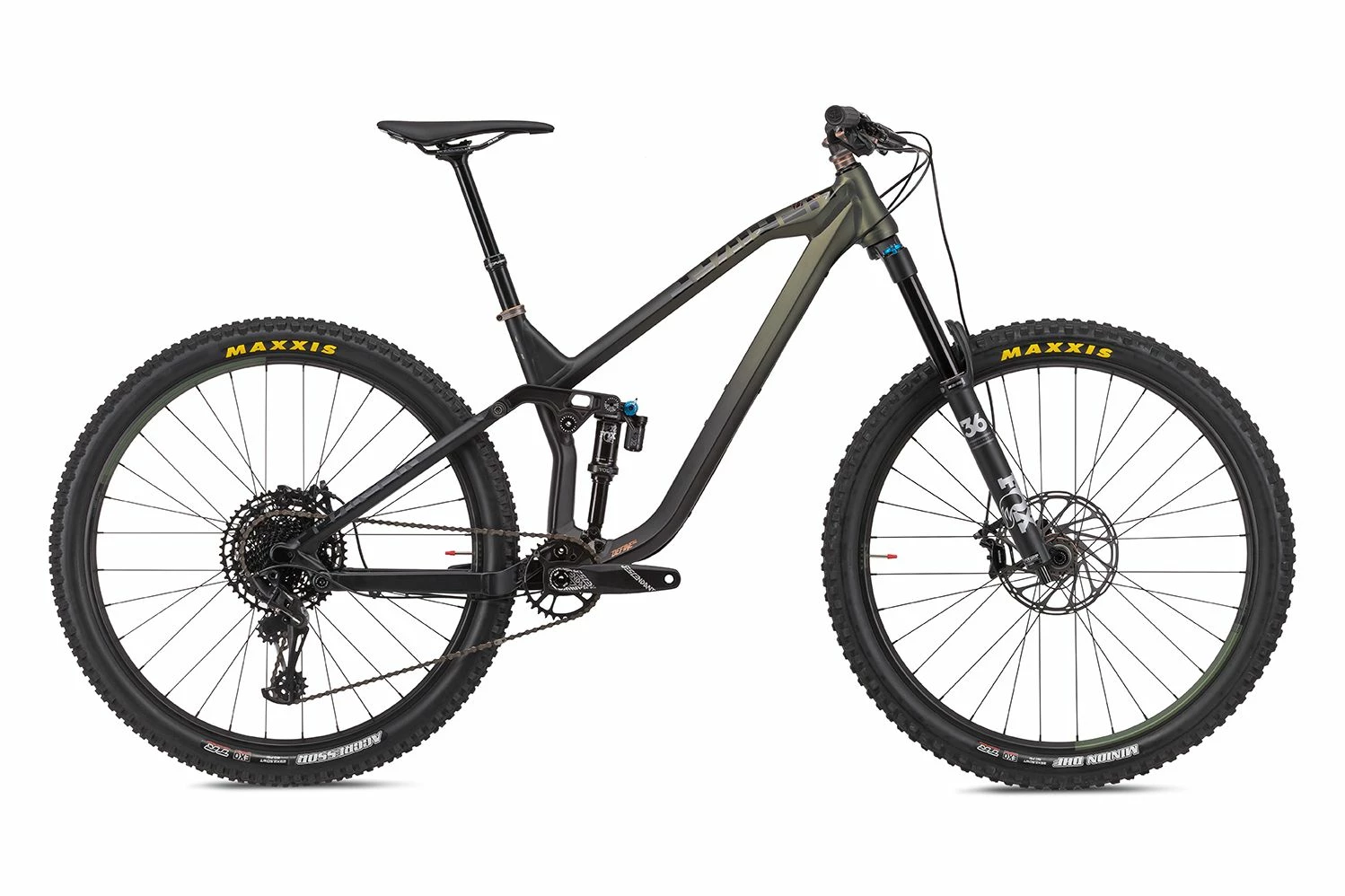

Ns-bikes NS Define AL 150 1 2021 Bike

The beautiful carbon Define is now available in metal. It was a big challenge to translate the complex lines of this
bike to another material, and we have sweated every detail of this high-end alloy frame to make it as light and as
sexy as possible. Some of the unique features include an adjustable BB height and semi-integrated cable guides – a
practical and elegant solution of the internal / external cable routing dilemma. Big sealed pivots keep it stable and
guarantee long periods of smooth, service free function. There are a few things that we borrowed directly from the
Snabb – and that is the kinematics of the 4-bar suspension that everyone loves (Pinkbike: “There is so little
pedal-induced bobbing at play here that it sort of boggles the mind”).

Features

Adjustable BB Height

You can raise the BB height by 5mm from the stock settings by using the adjustable shock mount or you can completely
transform the bike by changing the shock mount & shock (changes travel from 155 mm to 130 mm or vice versa).

Oversized Bearings, Sealed Main Pivot

The pivot that is most difficult to replace is hidden inside the frame and remains completely isolated from dirt and
water inside the frame.

Hybrid Cable Routing

The cables appear to be threaded through the downtube and chainstay…

Specifications

Frame and Forks

• Frame: NS Define AL with 150mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes,
• Forks: Fox Float 36 Performance Grip, 160mm travel, 3 position-Adjust with Open Mode Adjust, 110 x 15mm Boost, 1.5T, 44mm offset
• Rear Shock: Fox Float DPX2 Performance 3pos-Adj Evol LV Trunnion 205 x 62.5mm
• Headset: integrated tapered IS42 / IS52, sealed bearings

Drivetrain

• Crankset: Truvativ Descendant 6K DUB 170mm 32 tooth
• Rear Derailleur: SRAM GX Eagle, 12 speed
• Cassette: SRAM PG-1210,12 speed 11-50 tooth
• Chain: SRAM, 12 speed

Braking/Shifting

• Shifters: SRAM NX EAGLE, 12 speed
• Brakes: SRAM Guide RE
• Front Brakes: SRAM Guide RE, 200mm
• Rear Brakes: SRAM Guide RE, 180mm

Wheels

• Spokes: Spokes with 14mm nipples
• Rims: Octane One Solar 29”, tubeless compatible
• Front Hub: NS Rotary 15 Boost 15 x 110 disc (sealed bearings)
• Rear Hub: NS Rotary Cassette 148 x 12mm Boost (sealed bearings)
• Tyres: Maxxis DHF EXO/TR 29 x 2.5″ WT / Maxxis Aggressor EXO/DD/TR 29 x 2.5″ WT

Finishing Kit

• Handlebars: NS Bar 35, 800mm, 20mm rise
• Stem: NS Quantum Lite 35, 45mm
• Seatpost: X-Fusion Manic internal Small: 125mm, Medium: 150mm, Large: 170mm
• Saddle: Octane One Crit, CrMo hollow rails
