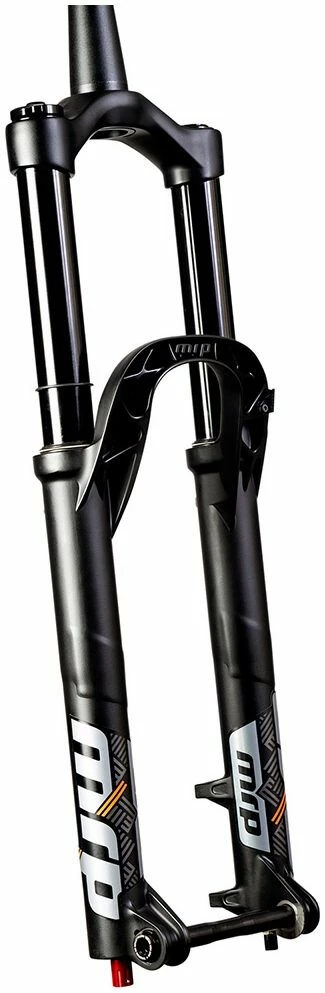

MRP Raven 2023 Fork

Utilizing the proven Ribbon chassis and sharing much of its technology, the Raven brings MRP’s renowned performance
to a new price point. Key differences from the Ribbon are the Huck Puck system in lieu of Ramp Control, a simplified
twin-tube damper, and the absence of PSST pressure relief valves on the lowers.

Features

• Outcast arch design with forward-facing weight reliefs to mitigate mud build up and deliver a distinctive look.
• New bladder-free damper utilizing a low-pressure IFP.
• Independently adjustable positive and negative air-chambers for greater tunability.
• Adjustable internal volume with Huck Puck system.
• “Boost” spacing and 35mm stanchions.

Specifications

• Stanchion Size: 35mm
• Steerer Option: Tapered Only (1.5 – 1.125″)
• Travel: 140, 150, 160, or 170mm
• Offset: 44mm
• Weight: 4.6 lbs. / 2.08 kg for 27.5″
• Brake Mount: 180mm PM (Disc only)
• Spring System: FulFill independent positive and negative chamber system. Adjustable internal volume with Huck Puck
  system.
• Tyre Clearance: 27.5″ Chassis: 27.5″ x 2.6″ on 35mm ID rim
• External Adjustment: 8-position low-speed compression and rebound.
• Internal Adjustment: Travel (140-170mm)
• Axle: “Boost” spacing – 15 x 110mm. “Tooled” bolt-on axle standard.
