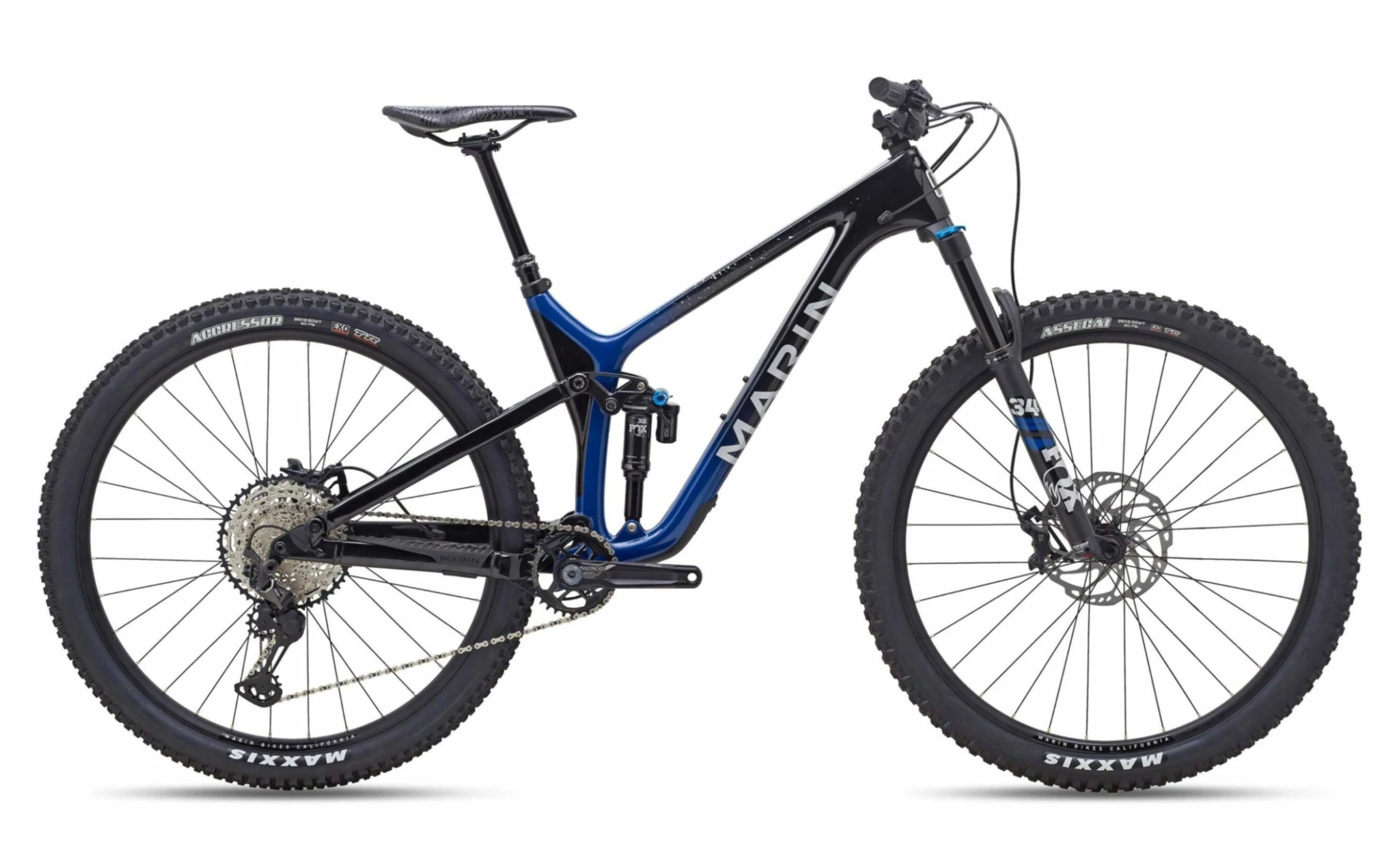

Marin Rift Zone 29 Carbon 2 2023 Bike

The Rift Zone is our most speed oriented MultiTrac bike, created for the rider looking for the speed and roll over
capabilities of 29” wheels in a trail capable package. Long, low, and slack trail geometry is more aggressive than
an XC race bike for more control at top speed, and more fun while chasing seconds.

Technology

Uniconditional Carbon Fiber Frame

The Rift Zone Carbon 1 and 2 models feature high modulus carbon fiber and monocoque construction to deliver the
lightest, most capable, Rift Zone that Marin has ever made.

Series 3 Aluminum Frame

Rift Zone 1, 2, and 3 models feature Series 3 aluminum frames, with detailed forgings, highly manipulated tubes, and
full internal cable routing, giving the rider a high feature and high-performing upgrade-worthy platform.

MultiTrac Suspension Technology

MultiTrac is an acclaimed suspension system, fine-tuned to have a balanced ride capable of absorbing big hits with an
efficient pedaling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump
sensitivity and the feeling of a long travel system on large drops and rocks.

Internal Routing

Both carbon and alloy frames sport full internal cable routing in the front triangle with Marin’s all-new internal
cable routing grommets, providing a clean and rattle free cable set up.

Specifications

Frame and Forks

• Frame: SUnidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 125mm Travel, MultiTrac
  Suspension Platform, 12 x 148mm Boost Thru-Axle, 73mm Threaded Bottom Bracket with ISCG05 Tabs
• Forks: Fox Performance 34 Float, 130mm Travel, 3-Position Micro Adjust Compression Adjustment, Rebound
  Adjustment, 15 x 110mm Kabolt Axle, 44mm Offset
• Rear Shock: Fox Float with Reservoir, Performance Series, EVOL Air Spring, Climb Switch, Rebound Adjustment,
  Custom Tune, 50 x 210mm, M8 x 30mm Top, M8 x 25mm Bottom
• Headset: FSA No 42/47, Sealed Cartridge Bearings, 1 1/8″ x 1 1/2”

Drivetrain

• Crankset: FSA Gradient, Modular 1x, 32 Tooth Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle,
  Boost
  Spacing
• Bottom Bracket: Mego EXO 73mm BSA
• Rear Derailleur: Shimano XT, 12-Speed, SGS
• Cassette: SunRace, Shimano SLX M7100, 12-Speed, 10-51 Tooth
• Chain: KMC X-12 Silver and Black

Braking/Shifting

• Shifters: Shimano SLX 12-Speed, I-Spec EV
• Front Brakes: Shimano SLX, 4-Piston Hydraulic Disc, Brake 203mm Rotor
• Rear Brakes: Shimano SLX, 4-Piston Hydraulic Disc Brake, 180mm Rotor
• Brake Levers: Shimano SLX Hydraulic, I-Spec EV

Wheels

• Rims: Marin Aluminum Double Wall, 29mm Inner, Welded Joint, Disc Specific, Tubeless Compatible
• Front Hub: Forged Alloy, 15 x 110mm, Disc, 32 Hole
• Rear Hub: Forged Alloy, 12 x 148mm, Quad Sealed Bearings, Disc, 32 Hole, Standard Freehub Body
• Spokes: 14g Stainless Steel
• Front Tyre: Maxxis Assegai 29 x 2.5”, 3C MaxxTerra, EXO, Tubeless Compatible
• Rear Tyre: Maxxis Aggressor 29 x 2.5”, 3C Maxx Terra, EXO, Tubeless Compatible

Finishing Kit

• Handlebars: Marin 35mm 7000 Alloy Bar, 780mm Length, 5 Degree Up, 8 Degree Back
• Grips: Marin Single Clamp Locking
• Stem: Marin CNC Stem, 35mm Length, 35mm Bar Bore
• Seatpost: TranzX, YSP23JL, 1x Remote, Size Small 125mm Travel, Size Medium and Large 150mm Travel, Size X-Large 170mm Travel, 30.9mm
• Saddle: Marin Trail Speed Concept Pro
