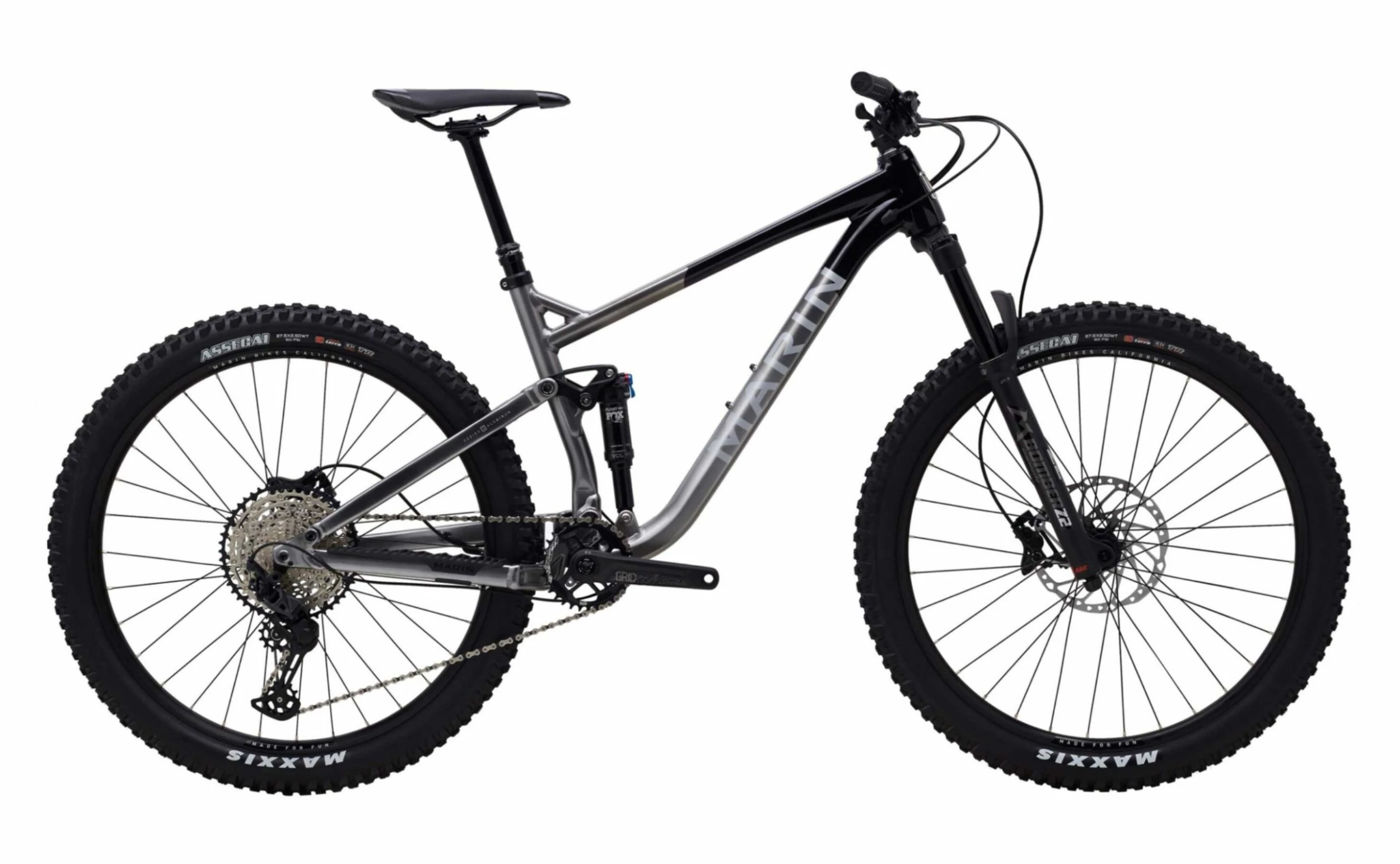

Marin Rift Zone 27.5 3 2022 Bike

The Rift Zone 27.5 is our most playful trail bike, made for the rider that catches a bit of air off of every root in
the trail, is always looking for an alternate line, and ends every ride with a smile. This is an all-around
suspension bike with trail performance far out stretching the asking price.

Key upgrades from Rift Zone 27.5 2:

• Marzocchi Bomber/Fox Float DPS suspension
• Shimano SLX drivetrain
• Shimano M420 4-piston brakes

Specifications

Frame and Forks

• Frame: Series 3 6061 Aluminum Frame, 27.5” Wheels, 120mm Travel, MultiTrac Suspension Platform, 148 x 12mm Boost
  Thru-Axle, 73mm Threaded Bottom Bracket with ISCG05 Tabs
• Forks: Marzocchi Bomber Z2 27.5″, Rail Damper with Sweep Adjustment, 130mm Travel, Kabolt Bolt-On Axle, 44mm
  Offset
• Rear Shock: Fox Float DPS, Performance Series, EVOL Air Spring, 3 Position Compression Adjustment, Rebound
  Adjustment, Custom Tune, 210 x 50mm, M8 x 25mm Hardware Top and Bottom
• Headset: FSA No 57, Sealed Cartridge Bearings, 1 1/8″ x 1 1/2”

Drivetrain

• Crankset: FSA Grid, Modular 1x, 32 Tooth Direct Mount Chainring, MegaTooth Technology, Boost Spacing
• Rear Derailleur: Shimano SLX, 12-Speed, SGS
• Cassette: Shimano, SLX 12-Speed, 10-51 Tooth
• Chain: KMC X-12 Silver and Black

Braking/Shifting

• Shifters: Shimano Deore, 12-Speed, SL-7100R, I-Spec EV
• Front Brakes: Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor
• Rear Brakes: Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, 180mm Rotor
• Brake Levers: Shimano BL-M4100 Hydraulic Lever, I-Spec EV Compatible

Wheels

• Rims: Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
• Front Hub: Shimano HF-MT410B, 110 x 15mm, Centerlock
• Rear Hub: Shimano HB-MT410B, 148 x 12mm, Centerlock, Microspline Freehub Body
• Spokes: 14g Black Stainless Steel
• Front Tyre: Maxxis Assegai, 27.5 x 2.5″

Finishing Kit

• Handlebars: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
• Stem: Marin 3D Forged Alloy, 35mm
• Seatpost: TranzX, YSP23JL, 1x Remote, Size Small 125mm Travel, Size Medium and Large 150mm Travel, Size X-Large
  175mm Travel,
  30.9mm
• Saddle: Marin Speed Concept
• Pedals: Not Included
