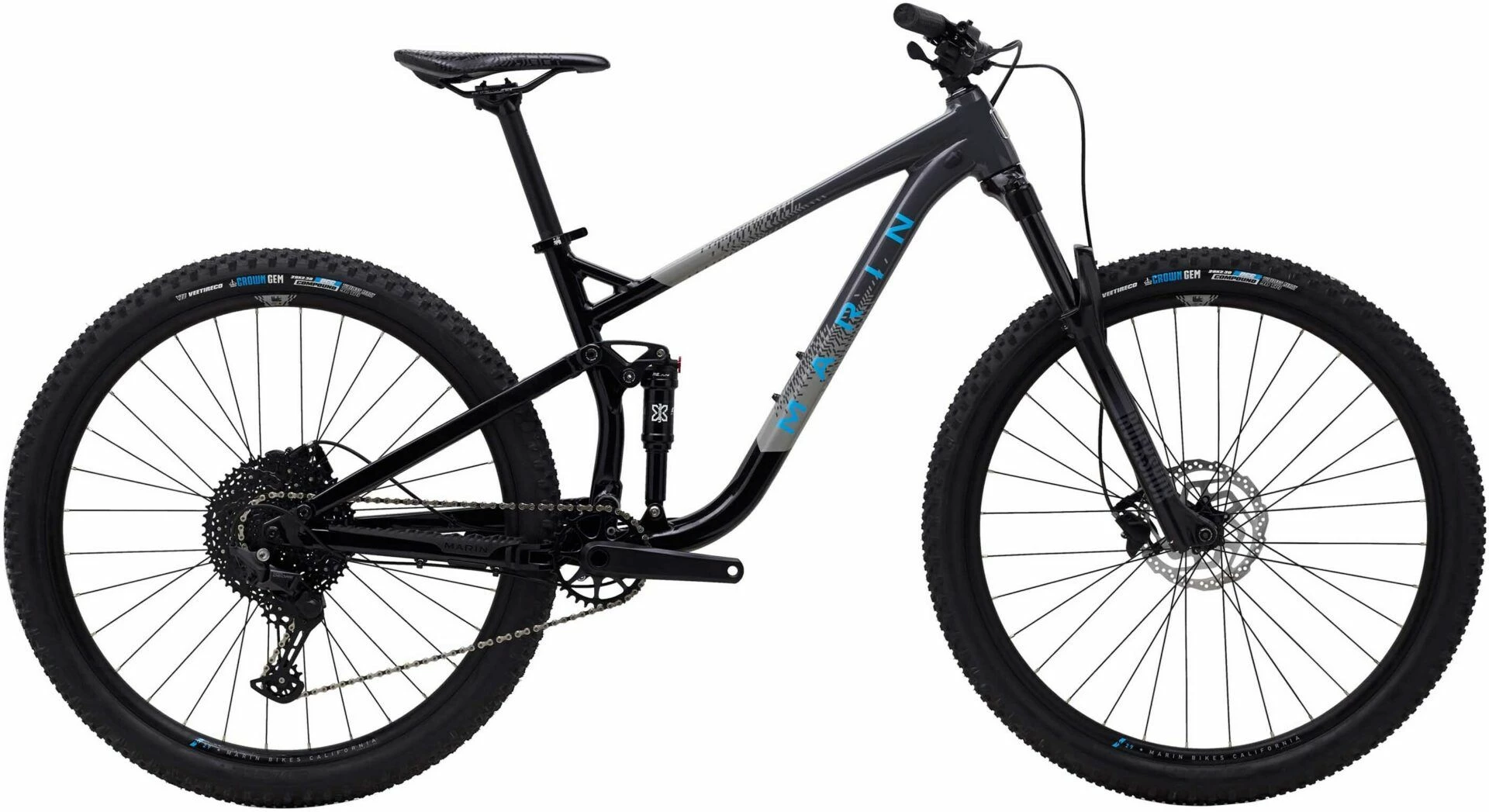

Marin Rift Zone 1 29 2022 Bike

The Rift Zone 29 is our most speed oriented MultiTrac bike, created for the rider looking for the speed and roll over capabilities of 29″ wheels in a trail capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds.

Features

• Fast paced, epic rides
• Pushing the envelope up and down the trail
• Chasing personal records

Technologies

• Series 3 Aluminum Frame: Rift Zone 1 features Series 3 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider a high feature and high-performing upgrade-worthy platform.
• Multitrac Suspension Technology: MultiTrac is an acclaimed suspension system, fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedaling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of a long travel system on large drops and rocks.
• Internal Routing: Both carbon and alloy frames sport full internal cable routing in the front triangle with Marin’s all-new internal cable routing grommets, providing a clean and rattle free cable set up.

Specifications

Frame and Forks

• Frame: Series 3 6061 Aluminum Frame, 29″ Wheels, 125mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (Upgradable To 148 x 12mm), 73mm Threaded Bottom Bracket with ISCG05 Tabs
• Forks: RockShox Recon Silver RL 29″, 130mm Travel, Solo Air, Compression and Rebound Adjustment, Alloy Tapered Steerer, Fast Black Uppers, 110 x 15mm Boost Spacing, Maxle Stealth, 42mm Offset
• Headset: FSA No 57E, Semi-Sealed Cartridge Bearings, 1-1/8″ x 1-1/2″
• Rear Shock: X-Fusion O2 Pro R, Custom Tune, 210 x 50mm, M8 x 25mm Hardware Top and Bottom

Drivetrain

• Crankset: Marin Forged Alloy, Integrated Steel 32 Tooth Narrow Wide Chainring, Boost Spacing
• Bottom Bracket: External Sealed Cartridge Bearing
• Rear Derailleur: Shimano Deore SGS, Shadow Plus, Direct Attachment, 11-Speed
• Cassette: SunRace, 12-Speed, 11-51 Tooth, ED Black
• Chain: KMC X-11 Silver and Black

Braking / Shifting

• Shifters: Shimano Deore, 11-Speed, SL-5100R
• Front Brake: Shimano BR-MT201 Hydraulic Disc, 180mm Rotor
• Rear Brake: Shimano BR-MT201 Hydraulic Disc, 180mm Rotor
• Brake Levers: Shimano BR-MT201 Hydraulic Disc

Wheels

• Rims: Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
• Front Hub: Shimano HF-MT400B, 110 x 15mm Axle Spacing, Centerlock
• Rear Hub: Shimano HB-MT200B, 141mm Quick Release, Centerlock, Standard Freehub Body
• Spokes: 14g Black Stainless Steel
• Tyres: Vee tyre Crown Gem 29 x 2.35″, Dual Control Compound, Tubeless Ready

Finishing Kit

• Handlebars: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
• Grips: Marin MTN, Closed End
• Stem: Marin 3D Forged Alloy, 35mm Reach
• Seatpost: Marin Alloy, 30.9mm Diameter
• Saddle: Marin Speed Concept
• Pedals: Not Included
