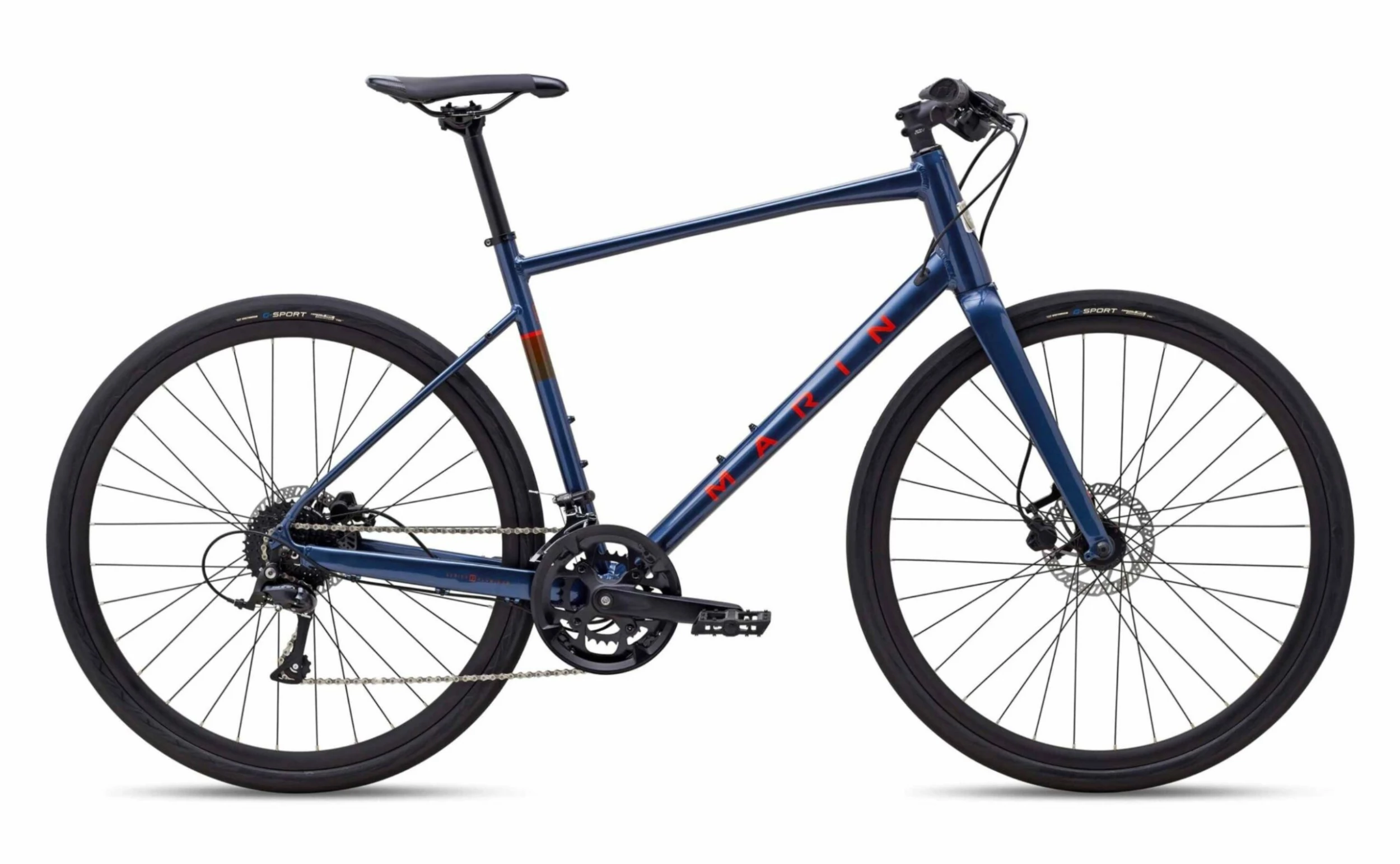

Marin Fairfax 3 2023 Bike

The Fairfax and Terra Linda make up our Fitness line, built for the flat-bar fitness road rider with the accessory
mounts and gear range for future upgrades.

Technology

Series 3 Frame

Series 3 Fitness frames feature butted and formed 6061 aluminum tubes with internal cable routing, flat mount disc
brakes, and forged dropouts with rack and fender mounts and an integrated kickstand mount.

Disc Brakes

Disc brakes on all Fairfax models provide smooth, controlled stopping in all conditions with minimal maintenance.

Specifications

Frame and Forks

• Frame: Series 3 Fitness, 6061 Aluminum, 700c Wheels, Relieved Tapered Head Tube and Bottom Bracket, Internal Cable Routing,
  Disc Specific Forged Dropouts, Fender, Rack, and Kickstand Mounts
• Forks: Marin Full Carbon with Tapered Steerer, Fender Eyelets
• Headset: FSA, No.42/CB

Drivetrain

• Crankset: Forged Alloy, 48 / 32 Tooth Chainrings, Ring Guard
• Bottom Bracket: Sealed Cartridge Bearings, Square Taper
• Front Derailleur: MicroSHIFT R9
• Rear Derailleur: Shimano Sora
• Cassette: Shimano, 9-Speed, 11-34 Tooth
• Chain: KMC X9

Braking/Shifting

• Shifters: MicroSHIFT R9 2 x 9-Speed Flat Bar Road Shifters
• Front Brakes: Tektro HDM275 Hydraulic Disc, 160mm Rotor
• Rear Brakes: Tektro HDM275 Hydraulic Disc, 160mm Rotor
• Brake Levers: Tektro Hydraulic

Wheels

• Rims: Marin Aluminum Double Wall, 19mm ID, 25mm Tall, Disc Specific
• Front Hub: Forged Aluminum Alloy, Disc, 32 Hole
• Rear Hub: Forged Aluminum Alloy, Disc, 32 Hole
• Spokes: 14g Stainless Steel
• Front Tyre: Vee Tire, Zilent, 700 x 35c, Puncture Protection, Wire Bead
• Rear Tyre: Vee Tire, Zilent, 700 x 35c, Puncture Protection, Wire Bead

Finishing Kit

• Handlebars: Marin Alloy Flat
• Grips: Marin Ergonomic Locking
• Stem: Marin 3D Forged Alloy
• Seatpost: Marin Alloy, 27.2mm
• Saddle: Marin Fitness Plush
• Pedals: Commute Platform
