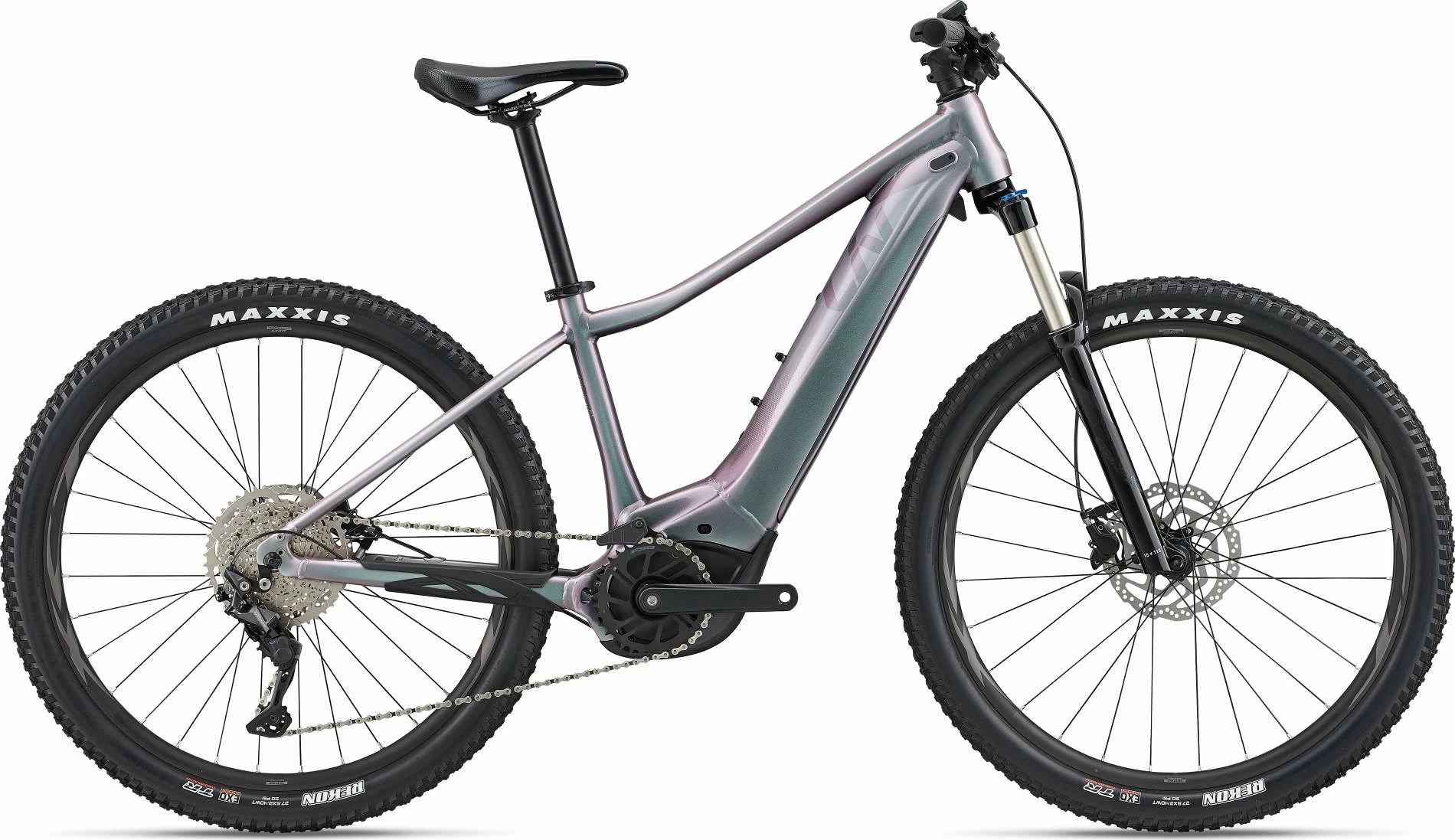

Liv Vall-E+ 2 2022 Womens Bike

Every ride justs got more epic.

Key Performance Factors

Accessible and Reliable

Access to new trails and experiences is easily within reach thanks to the up to 170 km* range of the ultra-reliable
EnergyPak Smart 500Wh battery. The SyncDrive Sport motor, powered by Yamaha, delivers 70Nm of torque and has six
speed control settings, with a maximum 350% support. *Actual range depends on several factors including weight,
elevation, terrain and acceleration.

Integrated Design

Along with the integrated speed sensor, the EnergyPak Smart battery is integrated into the downtube and easily
accessible.

Smooth Riding

Smart Assist Technology smooths out bumps, and the handlebar-mounted RideControl Dash is makes it easy to select
pedal assist functions and view battery levels.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the
rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail
surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

Ranges

• Extreme: 34 miles / 55km
• Good: 68 miles / 110km
• Ideal: 111 miles / 180km

Specifications

Frame and Forks

• Frame: ALUXX Aluminum, Overdrive 1½ – 1⅛” Head Tube, 141mm Boost QR, ISS, EnergyPak Plus Range Extender
  Compatible, Integrated KS18 Kickstand Mount
• Forks: SR Suntour XCR 32 Coil LO Boost 29/27.5 120mm travel, Tapered 1½ – 1⅛” steerer, lockout

Drivetrain

• Crankset: FSA Comet E-Bike crank arm set FSA MegaTooth Direct-mount 1X steel 36 Tooth
• Rear Derailleur: Shimano Deore, 10-speed, Shadow+
• Cassette: Shimano CS-M4100-10, 11-46 Tooth, 10-speed
• Chain: KMC e.10 Sport, e-bike optimised

Braking/Shifting

• Shifters: Shimano Deore
• Front Brakes: Tektro HD-M280, hydraulic disc, 180mm
• Rear Brakes: Tektro HD-M280, hydraulic disc, 180mm
• Brake Levers: Tektro HD-M280

Wheels

• Rims: Giant XCT 29″ / 27.5″ Tubeless Ready 25mm e-bike optimised
• Front Hub: Shimano HB-MT401-B
• Rear Hub: Shimano FH-MT200-B
• Spokes: Stainless Steel
• Front Tyre: Maxxis Rekon 2.4″, EXO, 60 TPI
• Rear Tyre: Maxxis Rekon 2.4″, EXO, 60 TPI

Finishing Kit

• Handlebars: Giant Connect TR Riser 31.8 x 690mm, 750mm (X-Small – Small: 690 / Medium – Large: 750)
• Grips: Liv Comfort Ergo Microtech Plus
• Stem: Giant Contact
• Seatpost: Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
• Saddle: Liv Sport
• Pedals: Aluminum Platform

Electric Power

• Motor: SyncDrive Sport, 70Nm, Powered by Yamaha
• Battery: EnergyPak Smart 500, 36V Integrated Lithium-IonEnergyPak Plus range extender compatible
• Display: RideControl Dash, full color LCD screen
• Controller: RideControl Dash, full color LCD screen
