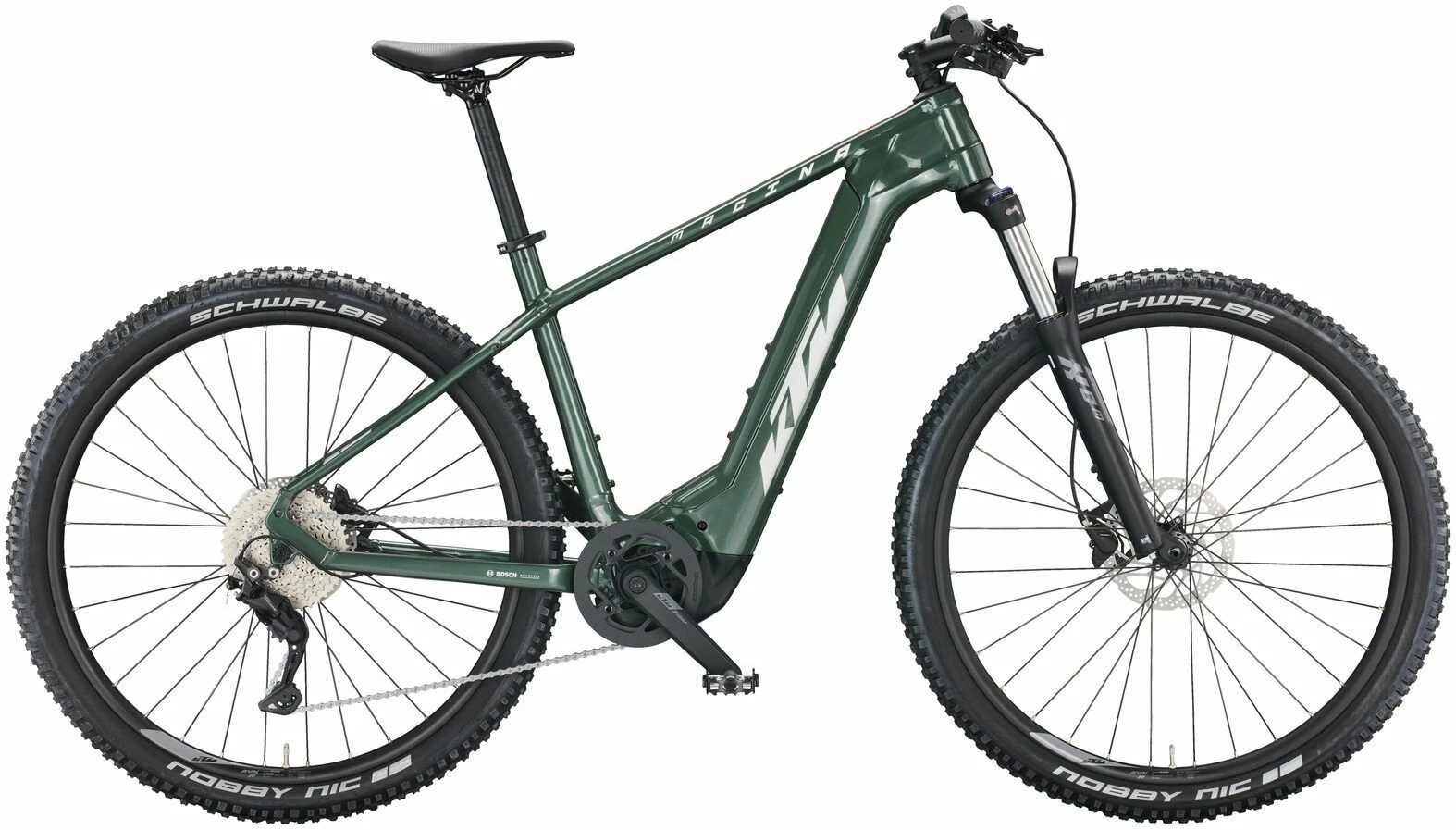

KTM Macina Team 793 2022 Electric Bike

Hunts You Through The Day

The KTM e-hardtail range offers a balanced handling package, well thought-out spec and different wheel size options.
The new MY22 frame is available in both 29-inch and 27.5-inch versions. Two further Team highlights are the
Light-Fender-Carrier (LFC) model with full equipment and the Team XL for a permissible system weight of 178kg. The
heart of these bikes is a newly developed frame, in combination with the new Bosch Smart System. With this
self-contained Bosch system, easily recognisable by the new control unit, you are ready for the digital future. The
system also includes the Kiox 300 display, the Bosch Performance Line CX motor, a 4A charger and the most powerful
Bosch PowerTube battery ever (750Wh) for even more range. In addition, the E-Bike Flow App opens the door to the
connected world and connects you with your bike. Thanks to the masterful work of our engineers, the proven KTM frame
geometry has been retained despite the new increase in battery size and capacity. Removing and reinserting the
battery is easier than ever before. Power Tube Top Loader (PTTL) is the name of KTM’s own innovation for this
user-friendly battery handling. All models are LFC-ready.

Technology

The Smart System

Fun on the move and a unique riding sensation – with the smart system, Bosch E-Bike Systems catapults E-Bikers into the
digital future.

The smart system – fully networked and always up-to-date thanks to regular ‘over the air’ updates. The E-Bike Flow
app, batteries, displays and drive units from Bosch E-Bike Systems offer every E-Biker a personalised experience.
Wheter on the way to work or on your favourite trail on the weekend: The technically and visually perfectly matched
components raise the riding enjoyment to the next level in everyday life as well as in leisure time.

Specifications

Frame and Forks

• Frame: Macina MTB 29″ Alloy 6061; PT750Wh Bosch Gen.4 / M-2706
• Forks: Suntour XCM 34 Coil 29″ NLO 120mm 15 xn110 Taper
• Headset: Acros AICR Internal 1.1/8≫1.5″ Angle Limit

Drivetrain

• Chainring: FSA Megatooth Steel 38 Tooth With Chainguard
• Crankset: KTM COMP ISIS 170mm Q16
• Rear Derailleur: Shimano Deore M4120-10 SGS Shadow
• Sprocket: Shimano Deore M4100-10 / 11-42
• Chain: KMC E10 EPT E-Bike

Braking/Shifting

• Shifters: Shimano Deore M4100-10 Display
• Brake: Shimano MT200 / MT200 2-Piston
• Rotor: Shimano RT30 CL 180 / EM300 CL 180

Wheels

• Front Wheel: KTM Line – Shimano MT410B CL 32 Hole 110-15TA / Ryde Rival30 32 Hole 622x30C / DT Champion 2.0
  Black
• Rear Wheel: KTM Line – Shimano MT400B CL 32 Hole 148-12TA / Ryde Rival30 32 Hole 622x30C / DT Alpine II 2.34
  Black
• Tyres: Schwalbe Nobby Nic Perf. Folding 62-622

Finishing Kit

• Handlebars: KTM Comp Flat 2X 720mm
• Grip: KTM Comp Lock
• Stem: KTM Comp 7°
• Seatpost: KTM Comp 30.9/400
• Saddle: KTM Line Sport
• Pedal: MTB-Pedal VP-195E Alloy

Electric Power

• Motor: Bosch Performance CX Gen.4 Smart System – 25km/H / 85Nm, Bosch PT-CX7R4
• Battery: Bosch PowerTube 750Wh Hor. Smart System
• Charger: Bosch Standard Charger 4A Smart System

More Info

• Permissible Total Weight: 144 g
• Weight: 25.2 Kg
