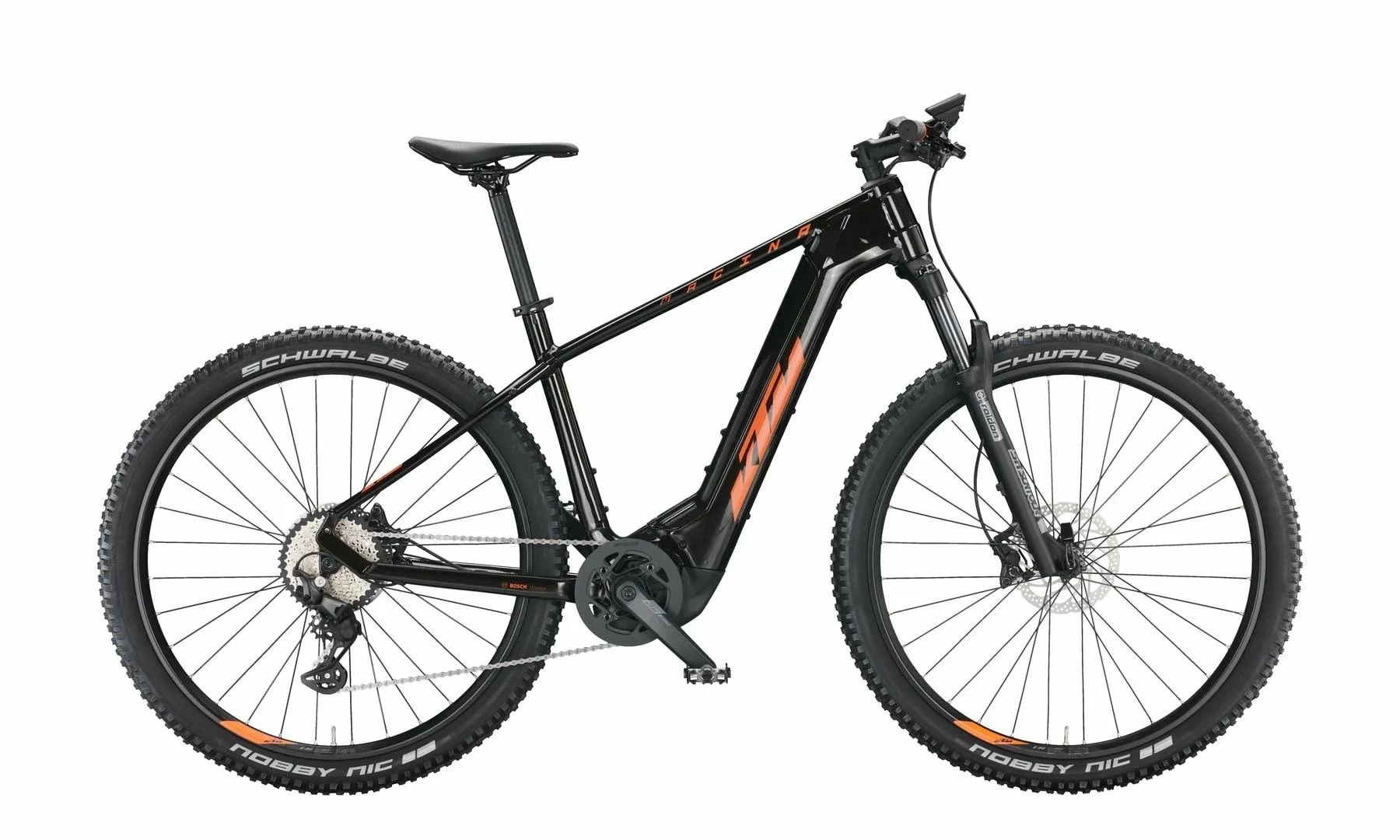

KTM Macina Team 792 2022 Electric Bike

Hunts You Through The Day

The KTM e-hardtail range offers a balanced handling package, well thought-out spec and different wheel size options.
The new MY22 frame is available in both 29-inch and 27.5-inch versions. Two further Team highlights are the
Light-Fender-Carrier (LFC) model with full equipment and the Team XL for a permissible system weight of 178kg. The
heart of these bikes is a newly developed frame, in combination with the new Bosch Smart System. With this
self-contained Bosch system, easily recognisable by the new control unit, you are ready for the digital future. The
system also includes the Kiox 300 display, the Bosch Performance Line CX motor, a 4A charger and the most powerful
Bosch PowerTube battery ever (750Wh) for even more range. In addition, the E-Bike Flow app opens the door to the
connected world and connects you with your bike. Thanks to the masterful work of our engineers, the proven KTM frame
geometry has been retained despite the new increase in battery size and capacity. Removing and reinserting the
battery is easier than ever before. Power Tube Top Loader (PTTL) is the name of KTM’s own innovation for this
user-friendly battery handling. All models are LFC-ready.

Technology

The Smart System

Fun on the move and a unique riding sensation – with the smart system, Bosch eBike Systems catapults eBikers into the
digital future.

The smart system – fully networked and always up-to-date thanks to regular ‘over the air’ updates. The eBike Flow
app, batteries, displays and drive units from Bosch eBike Systems offer every eBiker a personalised experience.
Wheter on the way to work or on your favourite trail on the weekend: The technically and visually perfectly matched
components raise the riding enjoyment to the next level in everyday life as well as in leisure time.

Shimano LinkGuide

New Deore XT and Deore with LinkGlide technology: smooth and seamless performance that’s made to last.

Say hello to reduced drivetrain wear and tear. Thanks to Shimano Deore XT and Deore with LinkGlide technology, you
can enjoy high-mileage, low-maintenance cycling for years to come – without worrying about having to replace or
repair components.

With the rapid growth of e-bikes and different riding styles, ‘drivetrain durability’ has
become a hot topic. At Shimano, we’ve noticed that many cyclists tend to ride in the same gear for long periods of
time. This has led to unusual wear and tear. Shifting – and riding – under torque has further reduced drivetrain
performance.

To solve this issue, we’ve designed and engineered new LinkGlide technology that’s specifically aimed at reducing
wear and tear on drivetrains. The result is a new era of durable, long-lasting drivetrains that deliver the seamless
shifting that Shimano is renowned for. Simultaneously, we’ve improved the overall performance of each component and,
in turn, pure pedalling enjoyment.

Deore XT (1×11 speed) and Deore (1×10 speed) with new LinkGlide technology are intended for use on a wide variety of
bikes and different riding styles but especially suited to high-torque e-bikes.

Tried and Tested:

LinkGlide technology builds upon HyperGlide+ technology – favoured by sports riders and racers who appreciate
quick shifts and having less grams on board. LinkGlide drivetrains have been specifically engineered to be more
durable yet still deliver smooth and decisive shifting – along with a great pedalling experience.

Under The Bonnet:

Deore XT and Deore with LinkGlide technology have been robustly engineered to significantly reduce daily wear and
tear. An optimised teeth profile and shifting gate will keep your chain on the bike – and keep chain skips at
bay –
for longer. You’ll also benefit from smoother shifting, down and up, and reduced pedal shock – particularly
suited
to the brisk acceleration and deceleration of e-bikes.

LinkGlide’s re-designed cassette teeth have a substantially thicker base and a unique chamfer that drastically
improves wear resistance in high torque applications. This increase in cassette durability prolongs smooth
driving performance and lengthens the amount of time before chain skips caused by wear start to happen.

Specification

Frame and Forks

• Frame: Macina MTB 29″ Alloy 6061; PT750Wh Bosch Gen.4 / M-2706
• Forks: Suntour Raidon 34 Air 29″ LOR 120mm 15×110 Taper
• Headset: Acros AICR Internal 1.1/8≫1.5″ Angle Limit

Drivetrain

• Crankset: KTM COMP ISIS 170mm Q16
• Chainrings: FSA Megatooth Steel 38 Tooth With Chainguard
• Rear Derailleur: Shimano Deore M5130-10 LG Shadow+
• Sprocket: Shimano LG600-10 / 11-43T
• Chain: Shimano LG500

Braking/Shifting

• Shifters: Shimano Deore M5130-10 LG Display
• Brakes: Tektro HD-M750 / E730 4-Piston
• Rotor: Tektro TR-45 2.3mm CL 180 / 180

Wheels

• Front Wheel: KTM Line – Shimano MT410B CL 32 Hole 110-15TA / Ambrosio E30 Trail 32 Hole 622 x 30TC / DT
  Champion 2.0 Black
• Rear Wheel: KTM Line – Shimano MT400B CL 32 Hole 148-12TA / Ambrosio E30 Trail 32 Hole 622 x 30TC / DT Alpine
  II 2.34 lack
• Tyres: Schwalbe Nobby Nic Perf. Folding 62-622

Finishing Kit

• Handlebars: KTM Comp Flat 2X 720mm
• Grips: KTM Comp Lock
• Stem: KTM Team MTB 7°
• Seatpost: KTM Comp 30.9/400
• Saddle: KTM Line Sport
• Pedals: MTB-Pedal VP-195E Alloy

Electronics

• Motor: Bosch Performance CX Gen.4 Smart System – 25km/H / 85Nm, Bosch PT-CX7K4
• Battery: Bosch PowerTube 750Wh Hor. Smart System
• Charger: Bosch Standard Charger 4A Smart System
• Display: Bosch Kiox TFT Display Smart System

More Info

• Permissible Total Weight: 143Kg
• Weight: 24.3Kg
