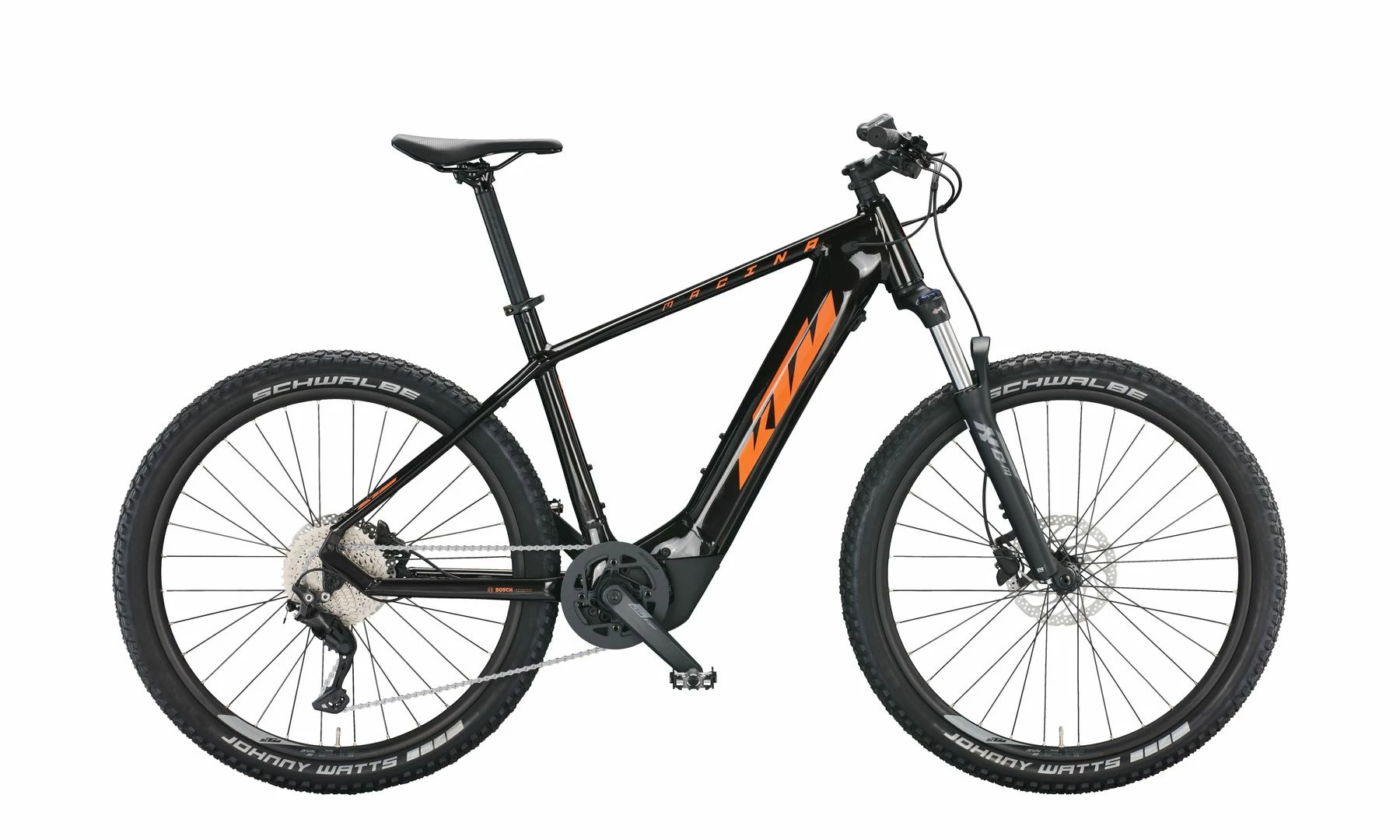

KTM Macina Team 673 2022 Electric Bike

Hunts you through the day. The KTM E-hardtail range offers a balanced handling package, well thought-out spec and
different wheel size options. You can choose between 27.5 and 29 inch. E-MTB hardtails tend to retail for around
€1,000 less than a similar-specced full suspension model, meaning that they’re often the most tempting option.
Another advantage is that they’re much easier to set-up. The Team bikes, with its 85Nm bosch performance CX motor
and the 625Wh Bosch Powertube battery seem to be unbeatable in terms of efficiency. For even more admissible total
weight this versatile companion is also available in the XL-Version. With a focus on women, four different GLORIOUS
models are waiting in the MACINA TEAM range. All bikes are LFC-ready.

Specifications

Frame and Forks

• Frame: Macina MTB 27.5″ Alloy 6061; PT625Wh Bosch Gen.4 / M-1676
• Forks: Suntour XCM 34 coil 27.5″ NLO 100mm 15 x 110mm taper
• Headset: KTM Team MTB 1.1/8″-1.5″ angle limit

Drivetrain

• Crankset: KTM COMP ISIS 170mm Q16
• Crankring: FSA Megatooth steel 38 Tooth with Chainguard
• Cassette: Shimano Deore M4100-10 / 11-42
• Chain: KMC e10 EPT E-Bike

Braking/Shifting

• Shifters: Shimano Deore M4100-10 display
• Brakes: Shimano MT200 / MT200 2-Piston
• Front Brake: Shimano RT30 CL 180mm
• Rear Brake: Shimano EM300 CL 180mm

Wheels

• Front Wheel: KTM Line – Shimano MT410B CL 32H 110-15TA / Ryde Rival30 32H 584 x 30c / DT Champion 2.0 black
• Rear Wheel: KTM Line – Shimano MT400B CL 32H 148-12TA / Ryde Rival30 32H 584 x 30c / DT Alpine II 2.34 black
• Tyres: Schwalbe Johnny Watts Perf. DD RaceGuard 60-584

Finishing Kit

• Stem: KTM Comp 7°
• Seatpost: KTM Comp 30.9 / 350mm
• Saddle: KTM Line Sport
• Pedals: MTB-Pedal VP-195E alloy

Electric Power

• Motor: Bosch Performance CX Gen.4 – 25km/h / 85Nm
• Battery: Bosch PowerTube 625Wh
• Display: Bosch Kiox TFT Display with Remote
• Charger: Bosch Standard Charger 4A
