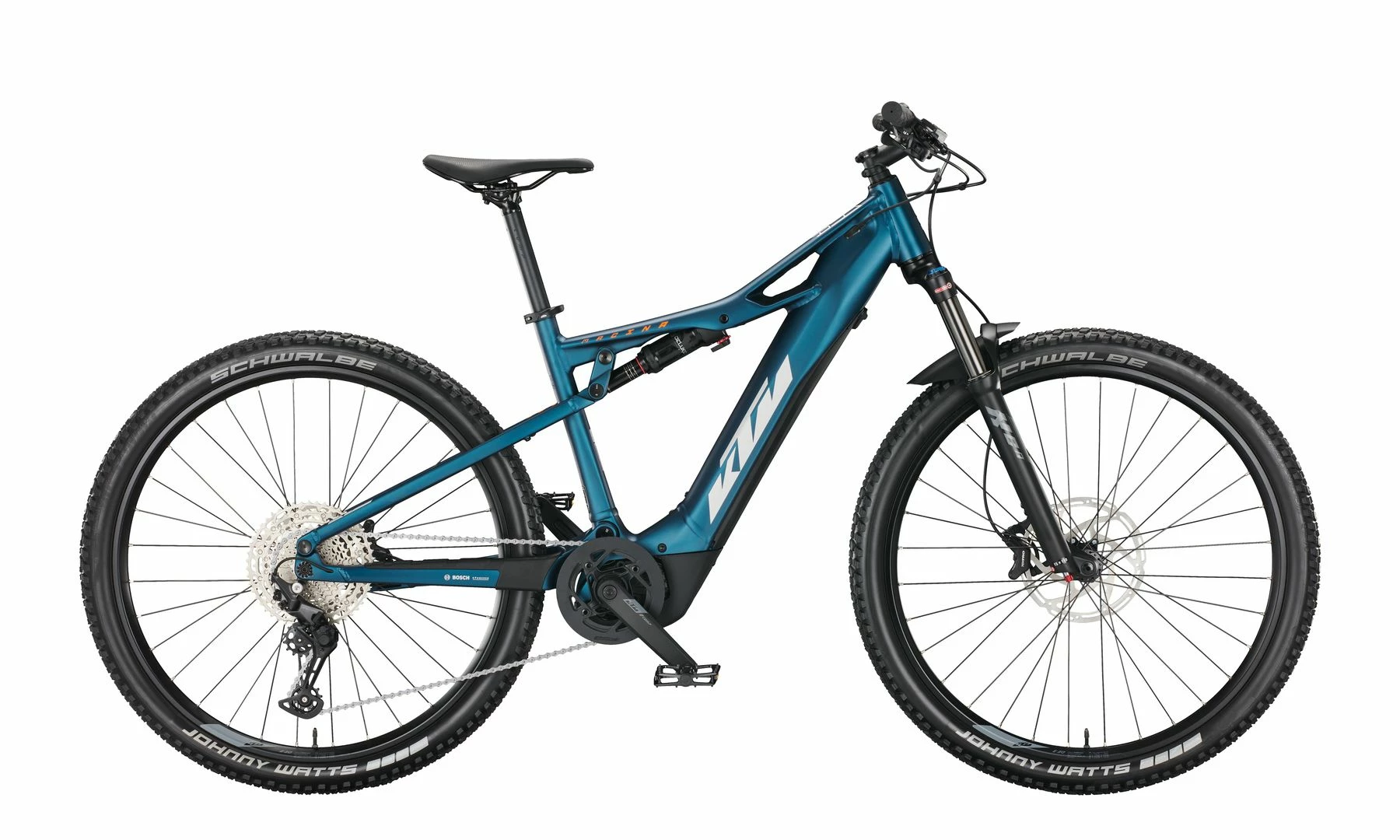

KTM Macina Chacana 691 2022 Electric Bike

Anyplace. Anywhere. Anytime. The Macina Chacana is your daily medicine against wanderlust! Compared to the trail
orientated Kapoho or Prowler models, the Chacana is a comfortable touring bike. The 691 and 591 models are both
powered by the powerful Bosch Performance CX motor. The Bosch PowerTube battery with 625 Wh (model 691) and 500 Wh
(model 591) seamlessly integrated in the down tube is just waiting to release its support and carry you out into the
wide world. 29″ wheels and 130 mm suspension travel ensure optimum driving stability, maximum comfort and traction
when the road takes you over rough and smooth. Are you ready to discover unspoilt nature? The Macina Chacana is it!

Specifications

Frame and Forks

• Frame: Macina Chacana 29″ Alloy6061 SLL-E 125mm; PT625 Bosch Gen.4 / M-0186
• Forks: Suntour XCR 34 Air 29″ LOR 130mm 15 x 110mm taper
• Rear Shcok: RockShox Deluxe Select+ 230 x 57.5mm
• Headset: KTM Team MTB 1.1/8″-1.5″ angle limit

Drivetrain

• Crankset: KTM COMP ISIS 170mm Q16, FSA Megatooth steel 36 Tooth with Chainguard
• Rear Derailleur: Shimano Deore M5100-11 SGS shadow+
• Cassette: Shimano Deore M5100-11 / 11-51 Tooth
• Chain: KMC e11 Sport EPT e-bike

Braking/Shifting

• Shifters: Shimano Deore M5100-11
• Front Brakes: Tektro TR-45 2.3mm CL 203mm
• Rear Brakes: Tektro TR-45 2.3mm CL 180mm
• Brake Levers: Tektro HD-M535 4-Piston

Wheels

• Front Wheel: KTM Line – Shimano MT410B CL 32 Hole 110-15TA / Ambrosio E30 Trail 32 Hole 622 x 30TC / DT Champion
  2.0 black
• Rear Wheel: KTM Line – Shimano MT400B CL 32 Hole 148-12TA / Ambrosio E30 Trail 32 Hole 622 x 30TC / DT Alpine II 2.34
  black
• Front Tyre: Schwalbe Johnny Watts Perf. DD RaceGuard 60-622
• Rear Tyre: Schwalbe Johnny Watts Perf. DD RaceGuard 60-622

Finishing Kit

• Handlebars: KTM Comp rizer15 720mm
• Grips: KTM Comp Lock
• Stem: KTM Team Trail35
• Seatpost: KTM Comp dropper internal
• Saddle: KTM Line Sport
• Pedals: MTB-Pedal flat VPE-527 alloy

Electric Power

• Motor: Bosch PERFORMANCE CX Gen.4 – 25km/h / 85Nm
• Battery: Bosch Powertube 500Wh
• Display: Bosch Purion LCD Display
• Charger: Bosch Compact Charger 2A
