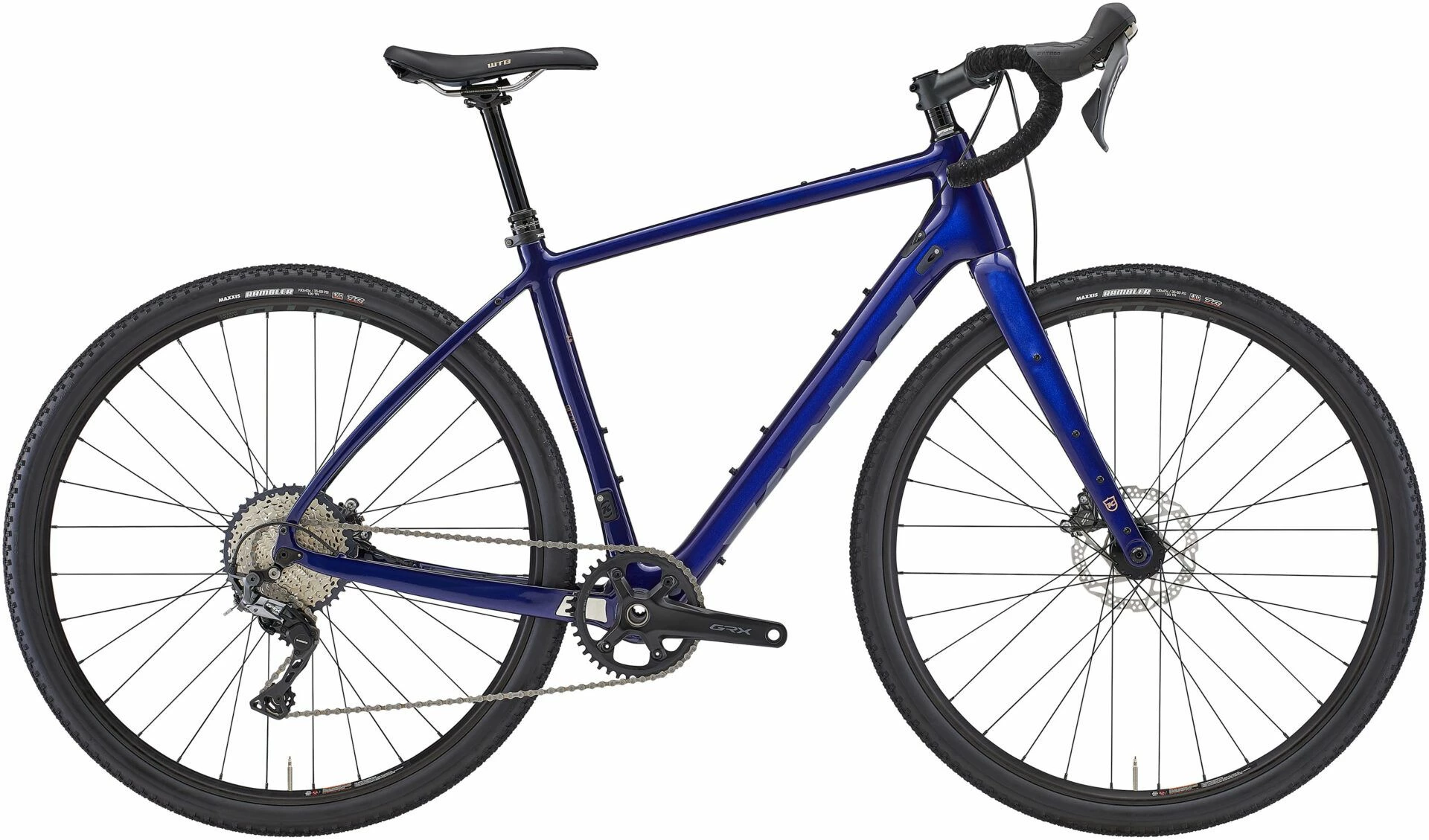

Kona Libre CR/DL 2022 Bike

The cream of the crop, the Libre CR DL leaves no stone…er piece of gravel unturned. This gorgeous Race Light Carbon frame provides both performance and comfort across varying terrain. The Libre CR DL features a Kona Verso Carbon fork and can carry a ton of gear via bento box mounts, 3-pack cage mounts, and numerous water bottle bosses. Bike packing not your thing? That’s cool too because this bike hauls ass over gravel, pavement, or whatever you want to throw at it. Engage the dropper post to slay that nasty little section of singletrack. You can be sure the grippy 45c tyres will have you covered.

Features

Kona Carbon

Designed to be lightweight and built to demanding standards. Carbon fiber has long been praised for its weight and strength, but rather than chase grams, we place our efforts on the performance that is possible when the right high-modulus fibers are in the right places. Our designers work very closely with our manufacturer to ensure there is no compromise to the desired ride characteristics, durability and – finally – weight stipulations that we expect from our bikes.

Integrated Headset

Integrated headsets are simple, light and effective headset systems whereby the bearing race cups are actually part of the head tube, and they are either machined away and left with the head tube, bonded (carbon), or welded in with steel or alloy. Like an internal headset, an integrated headset also reduces stack height, so the height of the stem and bars are more adjustable, giving the rider the best fit possible.

Tapered Head Tube

More girth at the bottom of the head tube better distributes shock force, prolonging the bearing life of the headset itself and eliminating brake shudder, while providing confident steering performance. The inherent strength of its triangular design also means a stronger steering position and improved balance, giving the rider more control in rough terrain. A zero-stack, tapered head tube also puts strength where the load is going-into the lower headset cup-maximizing bearing durability where it’s needed.

Tubeless Compatible Rims

Tubeless rims allow for tyres with more puncture resistance; the ability to run lower tire pressure, which provides better tire grip on the trail; lower rolling resistance; and weight savings over traditional tube and tire systems.

12 x 142mm Axle

12 x 142mm, 12 x 148 and 12 x 157 rear axle standards provide two major advantages to the Kona rider: the 12mm diameter of the rear axle provides the rear hub and frame with a stiff interface, while the 142 / 148 / 157mm outer diameter of the hub allows the wheel to be quickly and properly positioned in the frame before the rear axle is inserted. For 2017, you’ll see the 12 x 148 Boost standard in the mix. Boost spacing provides more tire clearance at the chainstay yoke, while the rear wheel is stiffer and more durable relative to a 12 x 142 thru-axle.

Specifications

Frame and Forks

• Frame: Kona Race Light Carbon
• Forks: Kona Verso Full Carbon Flat Mount Disc
• Headset: FSA No.42ACB

Drivetrain

• Crankset: Shimano GRX 600
• Chainrings: 40 Tooth
• Bottom Bracket: Shimano PF86
• Rear Derailleur: Shimano GRX 812
• Freewheel: Shimano SLX 11-42 Tooth 11 Speed
• Chain: Shimano 105

Braking / Shifting

• Shifters: Shimano GRX 600 with Integrated Dropper Lever
• Brakes: Shimano GRX 400
• Front Rotor: Shimano RT54 160mm (Centerlock)
• Rear Rotor: Shimano RT54 160mm (Centerlock)
• Brake Levers: Shimano GRX

Wheels

• Rims: Easton EA 70AX Wheelset
• Front Hub: Easton EA 70AX 100 x 12mm
• Rear Hub: Easton EA 70AX 142 x 12mm
• Spokes: Easton EA 70AX Wheelset
• Front Tyre: WTB Riddler TCS DUAL 700c x 45mm
• Rear Tyre: WTB Riddler TCS DUAL 700c x 45mm

Finishing Kit

• Handlebars: Easton EA70AX
• Grips: Velo Shock-Proof Bar Tape
• Stem: Easton EA70
• Seatpost: TranzX Dropper +RAD Internal 31.6mm
• Seat Clamp: Kona Clamp
• Saddle: WTB Volt
