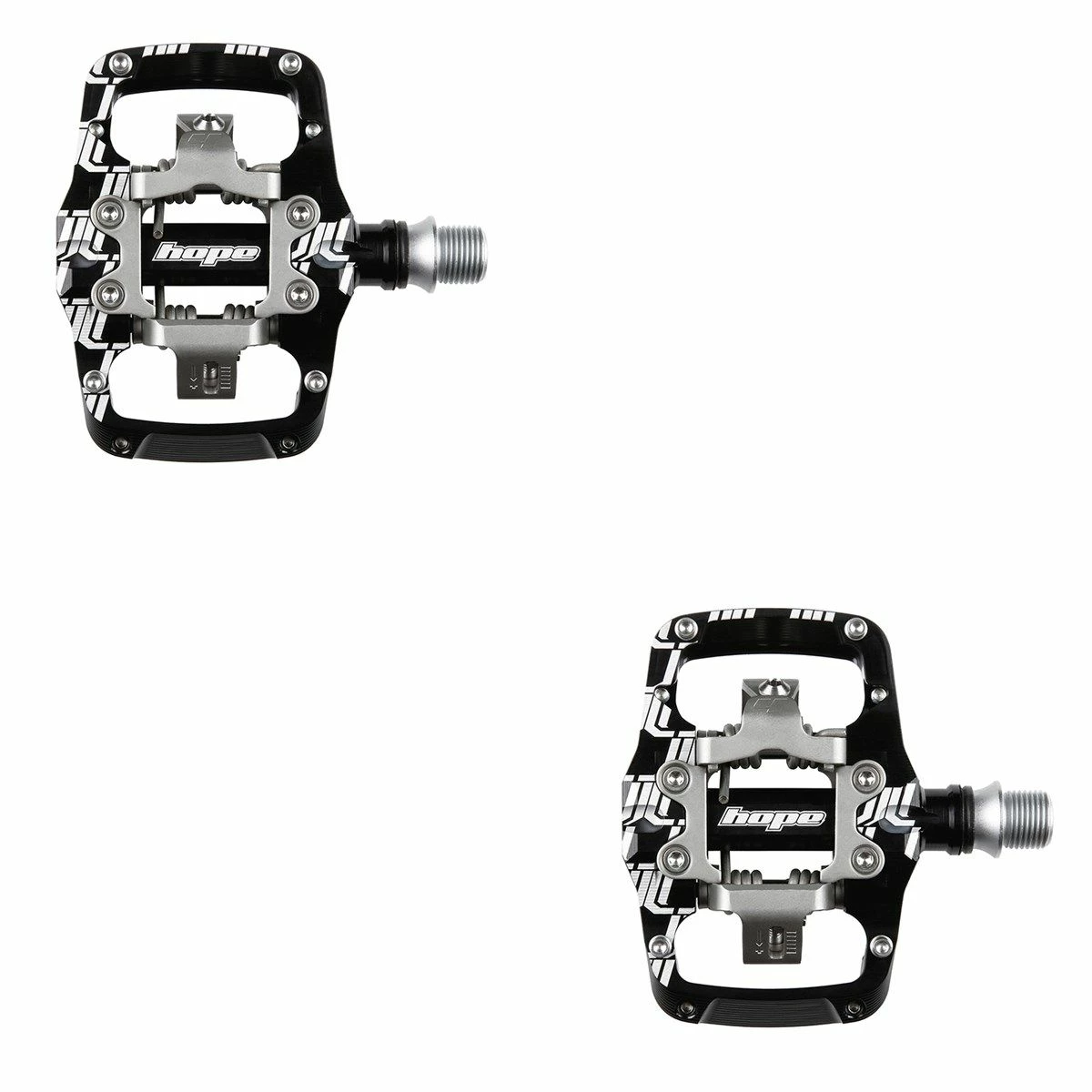

Hope Union Trail Pedals

The TC Union Clip Pedal

Key Features

• Dual mechanism designed for easy pedal entry, secure cleat holding and positive, consistent release
• Dual sided
• Fully CNC Machined pedal bodies
• Stainless steel clips and cleats
• Pedals supplied with two cleats options
• Large shoe / pedal contact area for maximum power transfer and stability
• Replaceable pins for increased grip on Union TC (8 pins)
• Available in 6 colour options

Technical Specification

• Pedals run on three cartridge bearings and a maintenance free IGUS bush for smooth long term durability
• Fully serviceable and re-buildable
• Axle is high strength Cr-Mo, heat treated and plated
• Titanium axle upgrades available
• Q-Factor – 55mm
• Pedals supplied with two cleats options; 4°or 5° of free float and 12° or 13° release angle respectively. Both
  cleats also allow 2mm of lateral (side to side) float.
• Large platform with option of 7 pins per side or foot plates to give maximum contact between the shoe and pedal
  and so provide the greatest stability.
