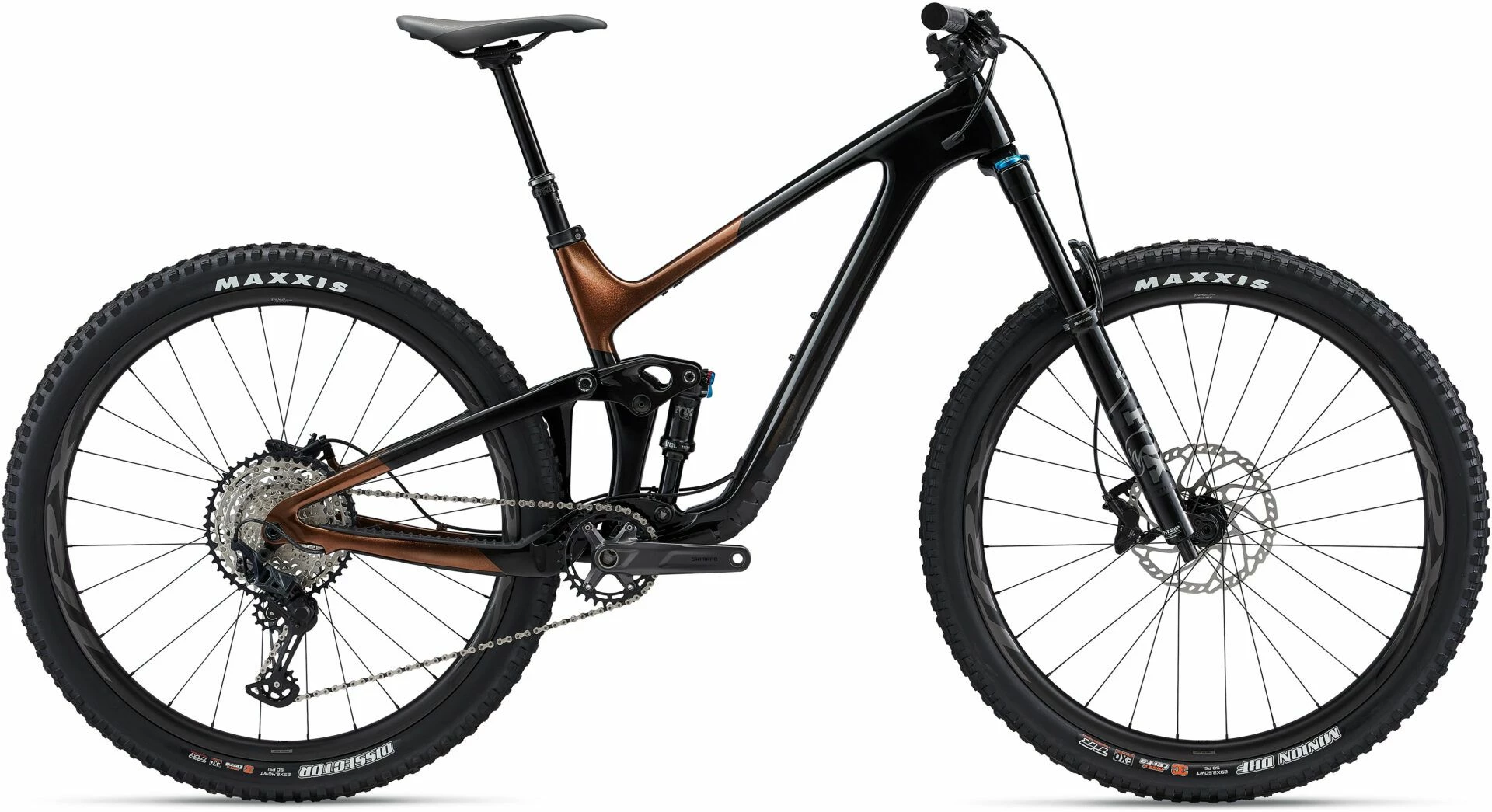

Giant Trance X Advanced Pro 29 2 2022 Bike

From fast, rowdy descents to technical terrain, this progressive trail bike gives you active suspension, adjustable frame geometry, and everything you need to up your singletrack game.

Features

29er confidence and control: 29-inch wheels optimized to roll over technical terrain with balance and stability, giving you more momentum on tricky climbs and confidence to fly on fast singletrack descents. Added clearance for up to 2.5-inch tyres.

Progressive suspension: Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 135mm of full rear-wheel travel (and 150mm up front), it features an Advanced Forged Composite upper rocker arm for increased stiffness and strength plus lower overall frame weight.

Adjustable geometry: A flip chip lets you change the headtube and seattube angles, along with the bottom bracket height, to fine-tune the handling. You can choose the low position (65.5/77.2 head/seattube angle and 40mm BB drop) for fast, open terrain, or high (66.2/77.9 head/seattube angle and 30mm drop) for slower, tighter singletrack.

Technologies

• Advanced Composite Technology: Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
• Advanced Forged Composite Technology: A state-of-the-art high-pressure moulding process is used to produce complex-shaped carbon fibre components that are lighter, stiffer and stronger than similar components made from aluminium. This technology is used in critical performance parts such as Maestro Suspension rocker links.
• Maestro Suspension Technology: Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
• Over Drive: Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4″ lower and 1 1/8″ upper for road, 1 1/2″ lower and 1 1/8″ upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
• Tubeless System: Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
• Flip Chip Maestro: The flip chip allows riders to quickly adjust the geometry of their Maestro-equipped mountain bike to better suit how and where they ride. It lets riders change the headtube/seattube angles and bottom bracket height via eccentric (offset, two-position) hardware located on the upper rocker arm.

Specifications

Frame and Forks

• Frame: Advanced-Grade Composite Front And Rear Triangles, 135mm Maestro Suspension, Flip Chip, 12 x 148mm Thru-Axle
• Forks: Fox 36 Float Rhythm, 150mm, GRIP Damper, Boost 15 x 110mm Kabolt, 44mm Offset, Custom Tuned For Giant
• Rear Shock: Fox Float DPS Performance, 185 x 55mm, Custom Tuned For Giant

Drivetrain

• Crankset: Shimano M511, 30 Tooth, Small: 165mm, Medium: 170mm, Large: 170mm, X-Large: 170mm
• Bottom Bracket: Shimano, Press Fit
• Rear Derailleur: Shimano SLX RD-M7100
• Cassette: Shimano SLX, 10 x 51 Tooth
• Chain: KMC X-12

Braking/Shifting

• Shifters: Shimano SLX SL-M7100, 1 x 12 Tooth
• Brakes: Shimano Deore BR-MT6120, Hydraulic, Shimano RT-66 Rotors, Front: 203mm, Rear: 180mm
• Brake Levers: Shimano Deore BL-M6100

Wheels

• Rims: Giant TRX 2 Carbon 29 WheelSystem, 30mm Inner Width
• Hubs: Giant TRX 2 Carbon 29 WheelSystem
• Spokes: Giant TRX 2 Carbon 29 WheelSystem
• Tyres: Front: Maxxis Minion DHF 29 x 2.5″ WT, 3C MaxxTerra, EXO, TR Rear: Maxxis Dissector 29 x 2.4″ WT, 60 TPI, 3C Max Terra, EXO, TR

Finishing Kit

• Handlebars: Giant Contact TR35, 780 x 35mm, 20mm Rise
• Grips: Giant Tactal Pro Single, Small: 120mm, Medium: 120mm, Large: 130mm, X-Large: 130mm
• Stem: Giant Contact SL 35, Small: 40mm, Medium: 40mm, Large: 50mm, X-Large: 50mm
• Seatpost: TranzX Travel-Adjustable Dropper, Remote, Small: 120-150mm Travel / 459 x 30.9mm Medium: 140-170mm Travel / 499 x 30.9mm Large: 170-200mm Travel / 525 x 30.9mm X-Large: 170-200mm Travel / 525 x 30.9mm
• Saddle: Giant Romero SL
• Pedals: Not Included
