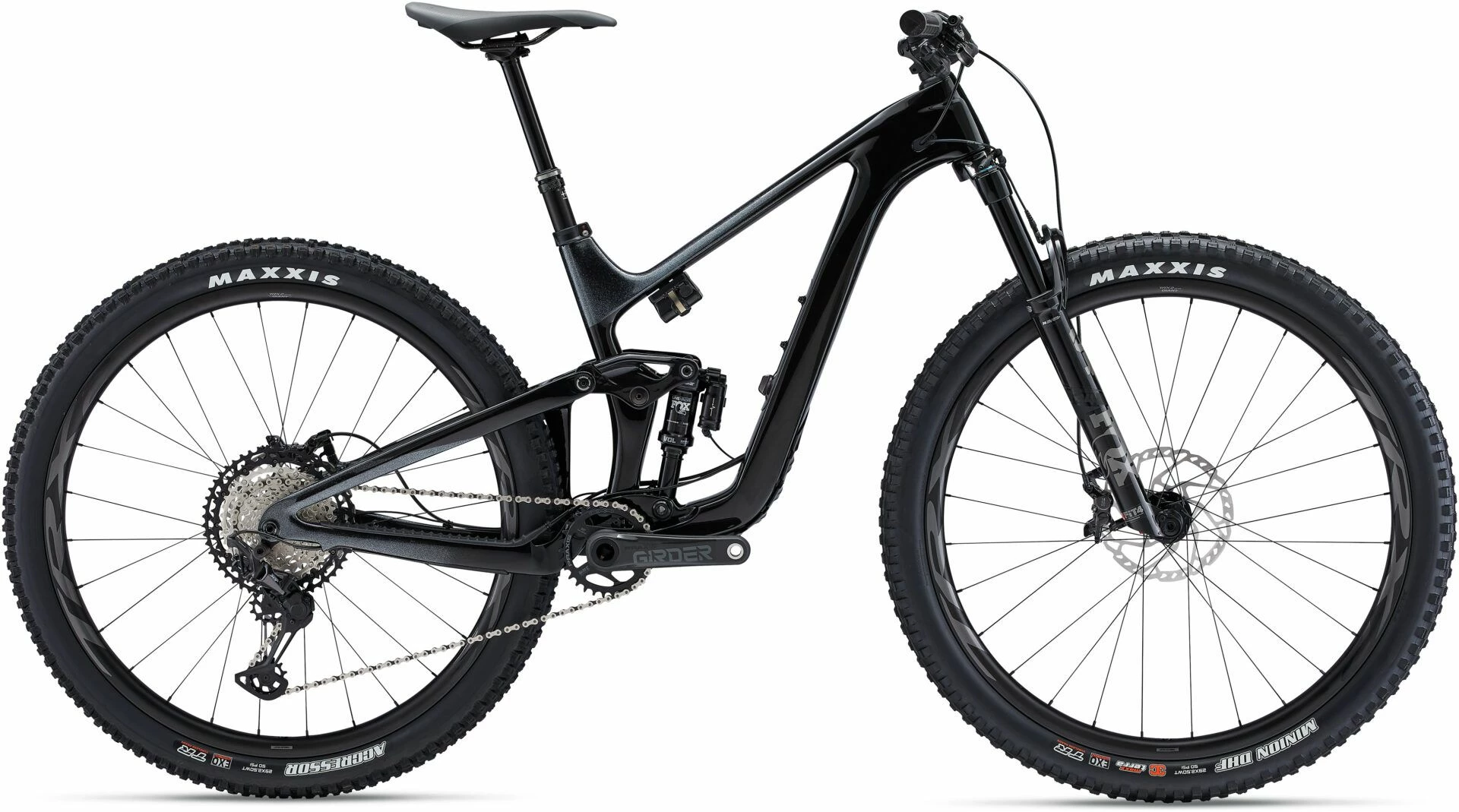

Giant Trance Advanced Pro 29 1 2022 Bike

Shred hard and shred fast with this lively 29er. It’s built on an all-new full-composite frame with adjustable geometry, giving you smooth control to blitz technical trails at speed.

Features

Adjustable frame geometry: New flip chip feature lets you change the head tube and seat tube angles, as well as the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style.

29er confidence and control: Larger 29-inch diameter wheels optimized to roll over rough terrain with balance and stability, giving you the momentum to tackle technical climbs and the confidence to fly on fast, rugged singletrack descents.

Progressive trail design: Lightweight Advanced-grade composite frameset features a longer reach and steeper seat tube for aggressive trail riding and improved climbing capabilities. Updated Maestro rear suspension features 120mm of rear wheel travel paired with a 130mm fork up front.

Technologies

• Advanced Composite Technology: Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
• Advanced Forged Composite Technology: A state-of-the-art high-pressure moulding process is used to produce complex-shaped carbon fibre components that are lighter, stiffer and stronger than similar components made from aluminium. This technology is used in critical performance parts such as Maestro Suspension rocker links.
• Maestro Suspension Technology: Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
• Over Drive: Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4″ lower and 1 1/8″ upper for road, 1 1/2″ lower and 1 1/8″ upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
• Tubeless System: Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
• Flip Chip Maestro: The flip chip allows riders to quickly adjust the geometry of their Maestro-equipped mountain bike to better suit how and where they ride. It lets riders change the headtube/seattube angles and bottom bracket height via eccentric (offset, two-position) hardware located on the upper rocker arm.
• Power Core: A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeter wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.

Specifications

Frame and Forks

• Frame: Advanced-Grade Composite Front And Rear Triangles, 120mm Maestro Suspension, Flip Chip, 12 x 148mm Thru-Axle
• Forks: Fox 34 Performance Elite Live Valve, 130mm, FIT4 Damper, Boost 15 x 110mm Kabolt, 44mm Offset, Custom Tuned For Giant
• Rear Shock: Fox Performance Elite Live Valve, 185 x 50mm, Custom Tuned For Giant

Drivetrain

• Crankset: Praxis Girder Carbon, 30 Tooth, Small: 165mm, Medium: 170mm, Large: 170mm, X-Large: 170mm
• Bottom Bracket: Shimano, Press Fit
• Rear Derailleur: Shimano Deore XT RD-M8100
• Cassette: Shimano Deore XT M8100, 10 x 51 Tooth
• Chain: KMC X-12

Braking/Shifting

• Shifters: Shimano Deore XT SL-M8100, 1 x 12 Tooth
• Brakes: Shimano Deore XT BR-M8120, Hydraulic, Shimano RT-66 Rotors, Front: 180mm, Rear: 180mm
• Brake Levers: Shimano Deore XT BL-M8100

Wheels

• Rims: Giant TRX 2 Carbon 29 WheelSystem, 30mm Inner Width
• Hubs: Giant TRX 2 Carbon 29 WheelSystem
• Spokes: Giant TRX 2 Carbon 29 WheelSystem
• Tyres: Front: Maxxis Minion DHF 29 x 2.5″ WT, 3C MaxxTerra, EXO, TR Rear: Maxxis Aggressor 29 x 2.5″, EXO, TR, Tubeless

Finishing Kit

• Handlebars: Giant Contact SLR TR35, Composite, 780 x 35mm
• Grips: Giant Tactal Pro Single, Small: 120mm, Medium: 120mm, Large: 130mm, X-Large: 130mm
• Stem: Giant Contact SL 35, Small: 40mm, Medium: 40mm, Large: 50mm, X-Large: 50mm
• Seatpost: TranzX Travel-Adjustable Dropper, Remote, Small: 120-150mm Travel / 459 x 30.9mm Medium: 140-170mm Travel / 499 x 30.9mm Large: 170-200mm Travel / 525 x 30.9mm X-Large: 170-200mm Travel / 525 x 30.9mm
• Saddle: Giant Romero SL
• Pedals: Not Included
