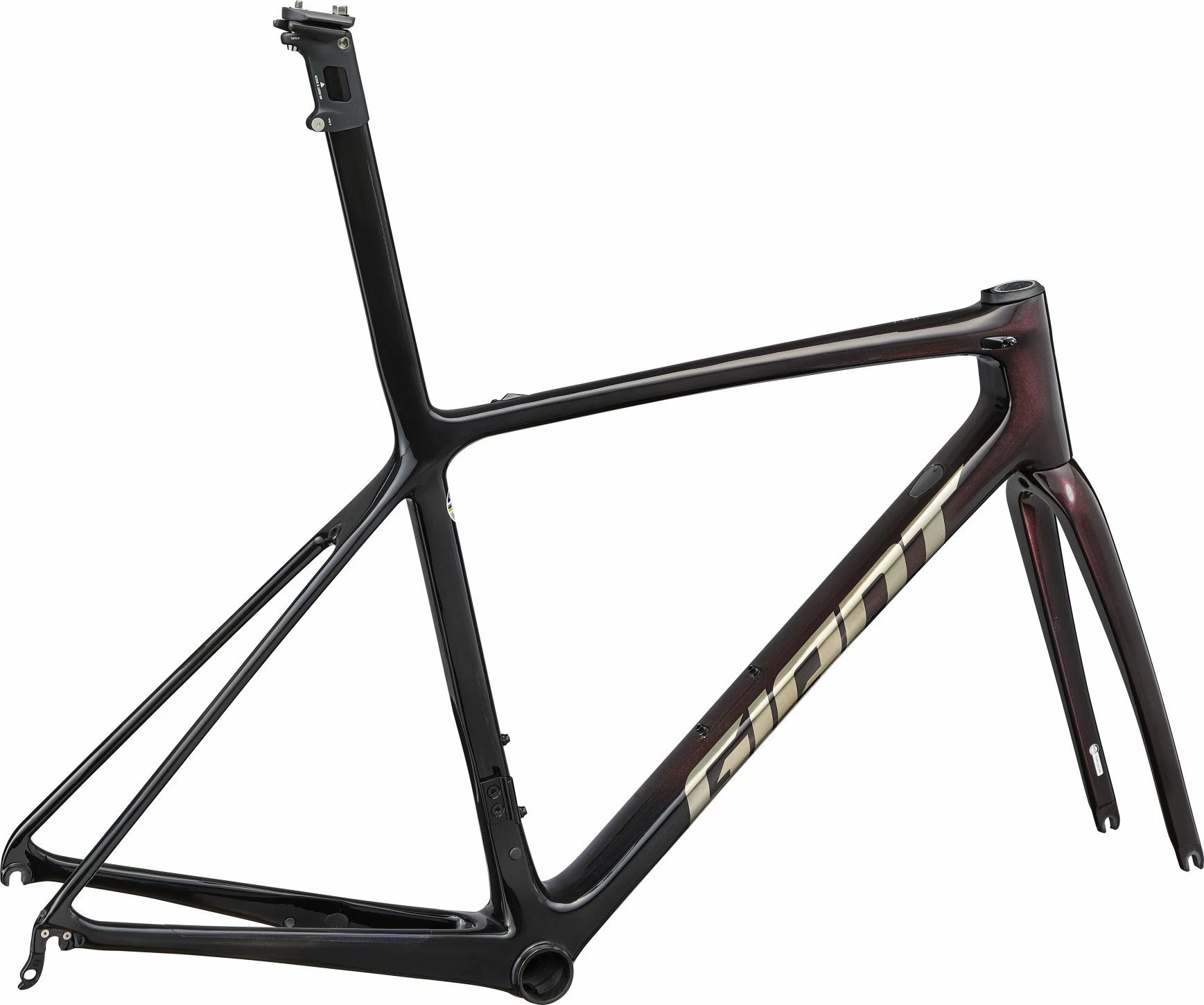

Giant TCR Advanced SL 2023 Frameset

Technologies

Advanced SL Composite Technology

Professional Grade raw carbon fiber is woven in Giant’s composite factory to produce their lightest, stiffest and
highest quality frames. This is the technology used by Giant’s pro racers in almost every cycling discipline.

Compact Road Design

Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of
high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller
front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a
perfect fit.

OverDrive 2

The most advanced steerer tube technology in today’s Giant bikes. Designed to offer unprecedented front-end steering
performance, the system’s oversized headset bearings (1 1/2” lower, 1 1/4” upper) and tapered steerer tube work in
harmony to provide supreme steering stiffness.

Powercore

A massively oversized bottom-bracket / chainstay area features a fully integrated, 86-millimeter wide bottom-bracket
design (92-millimeter wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside
and stability on the non-driveside.

Specifications

• Frame: Advanced SL-Grade Composite, integrated seatpost
• Forks: Advanced SL-Grade Composite, full-composite OverDrive 2 steerer
• Seatpost: Advanced SL-Grade composite, integrated design, -5/+15mm offset
• Extras: 2 ISP clamps plus shims, headset plus spacers, cable guides and plugs for mechanical shifting, Di2 and
  eTap, RideSense Bluetooth / ANT+, 28mm max tyre size
