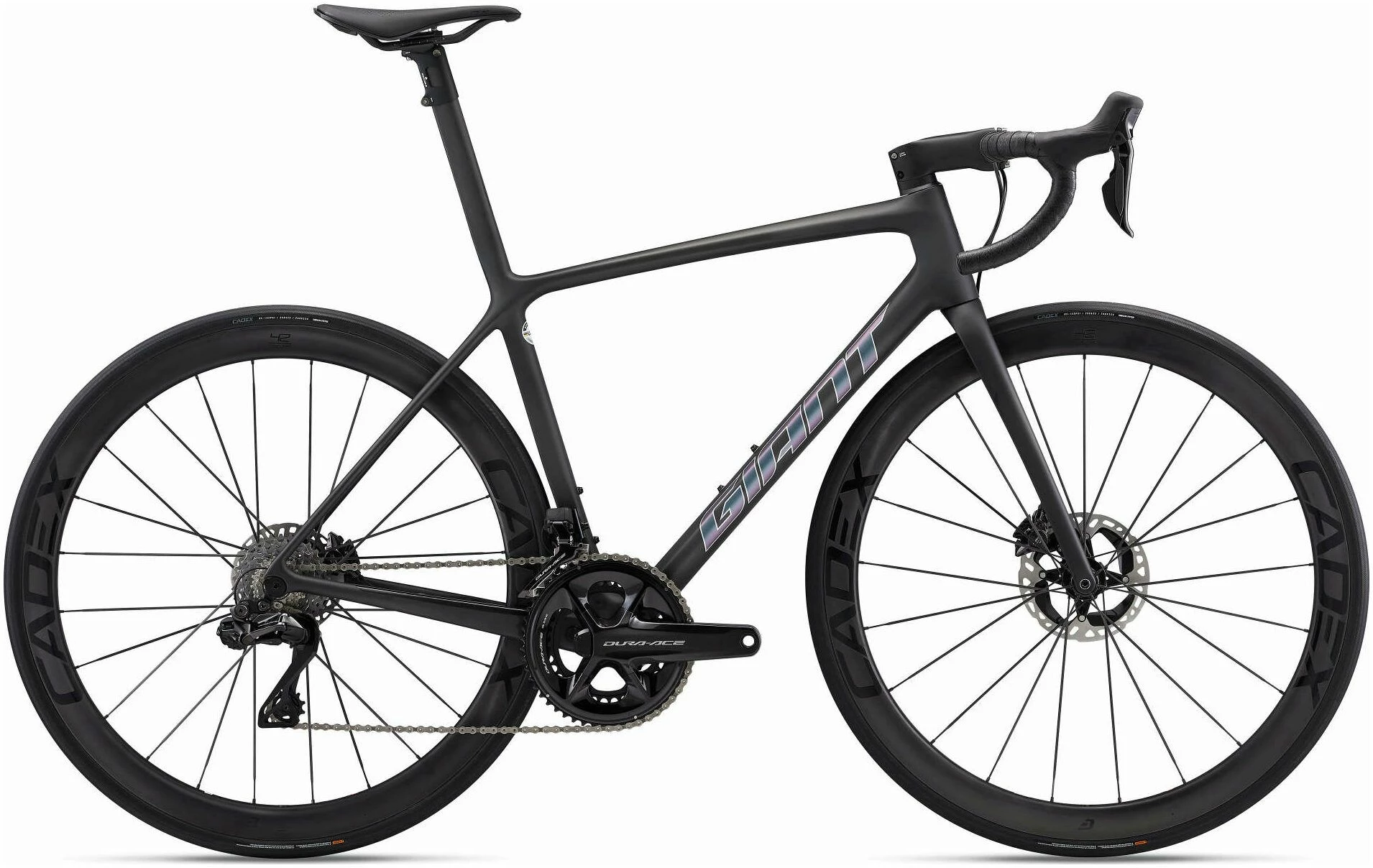

Giant TCR Advanced SL 0 Disc Dura-Ace 2022 Bike

The latest generation of our flagship road racing series has been winning the biggest races in the world for more
than three decades. It’s the ultimate all-rounder for the performance obsessed.

Key Performance Factors

Class-leading Efficiency

With the highest pedalling stiffness-to-weight ratio of any bike in its class and aero
tube shaping, this frameset is engineered to give road racers superior climbing capabilities, aerodynamic efficiency
and sprint stiffness for race-winning performance.

Advanced Aerodynamics

This is where the TCR’s most quantifiable gains can be found compared to previous
generation models. Every tube shape was analysed, engineered and tested to create an overall structure with
significantly lower drag at a wider range of yaw angles.

Total Control

Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in
variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling,
while added frame and fork clearance allows for larger diameter tyres up to 32mm.

Technologies

Advanced SL Composite Technology

Professional Grade raw carbon fiber is woven in our composite factory
to produce our lightest, stiffest and highest quality frames. This is the technology used by Giant’s pro racers
in almost every cycling discipline.

Overdrive 2

The most advanced steerer tube technology in today’s Giant bikes. Designed to offer
unprecedented front-end steering performance, the system’s oversized headset bearings (1 1/2″ lower, 1 1/4″
upper) and tapered steerer tube work in harmony to provide supreme steering stiffness.

Compact Road Design

Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road
revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the
headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it
easier for riders of all sizes to have a perfect fit.

Tubeless System

Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride.
Giant’s Tubeless System makes it easier than ever to experience all these benefits.

Megadrive

A massive rectangular downtube and oversized toptube work in unison to provide superior front
end lateral and torsional steering precision. The precisely engineered, rectangular shaped downtube yields
unprecedented steering and pedaling stiffness.

Powercore

A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter
wide bottom-bracket design (92-millimeter wide for off-road bikes). Asymmetric chainstays provide additional
stiffness on the driveside and stability on the non-driveside.

Ridesense Ready

This frame comes prepared to accept the Giant RideSense sensor and accompanying
hardware.

Specifications

Frame and Forks

• Frame: Advanced SL-Grade Composite, Integrated Seatpost, Disc
• Forks: Advanced SL-Grade Composite, Full-Composite OverDrive 2 Steerer, Disc

Drivetrain

• Crankset: Shimano Dura-Ace, 36/52 With FC-9200P Power Meter Small: 170mm, Medium: 172.5mm, Medium / Large: 172.5mm, Large: 175mm
• Bottom Bracket: Shimano, Press Fit
• Rear Derailleur: Shimano Dura-Ace Di2 ST-R9250 Max 34 Tooth
• Front Derailleur: Shimano Dura-Ace Di2 ST-R9250
• Cassette: Shimano Dura-Ace, 12-Speed, 11 x 34 Tooth
• Chain: Shimano Dura-Ace M9100

Braking/Shifting

• Shifters: Shimano Dura-Ace Di2 ST-R9270 2×12
• Brakes: Shimano Dura-Ace Di2 Hydraulic, Shimano RT-MT900 Rotors Front: 160mm, Rear: 140mm
• Brake Levers: Shimano Dura-Ace Di2

Wheels

• Rims: CADEX 42 Disc Hookless WheelSystem (19mm Inner Rim Width)
• Hubs: CADEX 42 Disc WheelSystem, 12mm Thru-Axle
• Spokes: CADEX 42 Disc WheelSystem
• Tyres: CADEX Race, Tubeless, 700 x 25c (Effective Width 26.5mm), Folding

Finishing Kit

• Handlebars: Giant Contact SLR Small: 40cm, Medium: 42cm, Medium / Large: 42cm, Large: 44cm
• Grips: Stratus Lite 2.0
• Stem: Giant Contact SLR Small: 90mm, Medium: 100mm, Medium / Large: 110mm, Large: 110mm
• Seatpost: Advanced SL-Grade Composite, Integrated Design, -5/+15mm Offset
• Saddle: Giant Fleet SLR
• Pedals: Not Included
