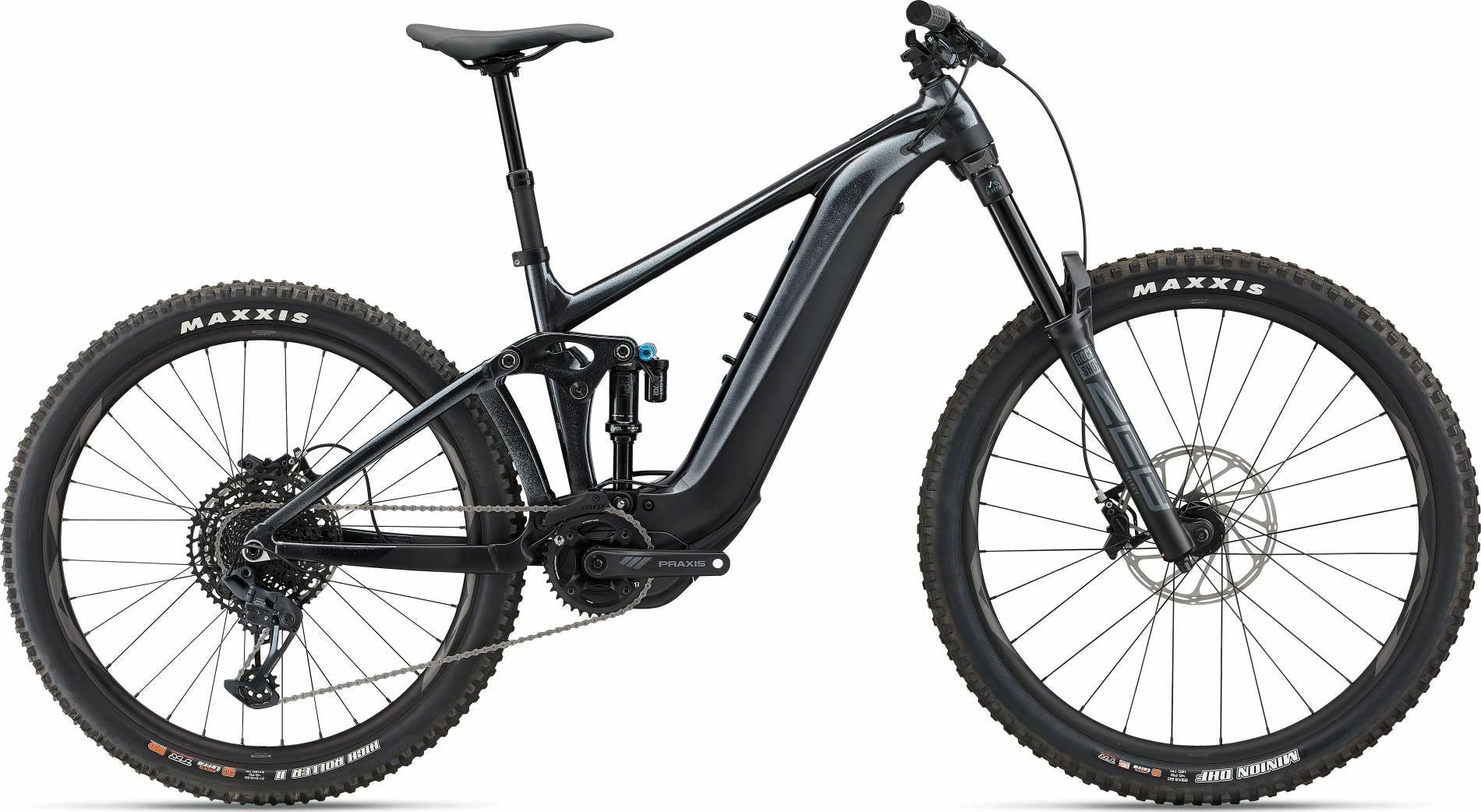

Giant Reign E+ 2 2022 Electric Bike

Every trail, every steep climb, every thrilling descent. Tested and developed by Giant’s E-bike enduro pros, this
updated trail ripper gives you the power to enjoy the best parts of the ride again and again.

Key Performance Factors

Trail Technology

Proven Maestro rear suspension (160mm) and a powerful but compact SyncDrive Pro motor technology boost your
capabilities on steep climbs and rugged descents.

Total Control

RideControl Ergo 3 offers integrated, user-friendly button controls that are easy to use. The Giant E-bike App gives
you tuning options and E-bike specific fitness tracking.

Long-lasting Power

Climb steep mountains and enjoy fun descents all day long with the downtube-integrated EnergyPak

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the
rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail
surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions
typically occur when riding with a heavy load, strong headwinds or excessive climbs.

EnergyPak Smart 625 / SyncDrive Pro

• Extreme: 60km / 37 miles
• Good: 120km / 74 miles
• Ideal: 190km / 118 miles

Specifications

Frame and Forks

• Frame: ALUXX SL-grade Aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system,
  ‘Boost’
  148 x 12mm, UDHTM derrailleur hanger
• Forks: RockShox ZEB Select 29er, 170mm travel, Charger RC damper, 15 x 110mm Boost, Maxle Stealth
• Rear Shock: Fox Float DPX2 Performance, EVOL Large Volume sleeve, 2-position lever, 205 x 62.5mm Trunnion
  mount,
  custom tuned

Drivetrain

• Crankset: SRAM X-Sync Eagle 36 Tooth chainring Praxis E-Cadet+ custom forged crankarm set (Small /
  Medium:
  160mm, Large / X-Large: 165mm)
• Chain Guide: MRP 1X HD2 custom co-molded chain guide
• Rear Derailleur: SRAM GX 12-speed
• Cassette: SRAM PG-1230, 11-50 Tooth, 12-speed
• Chain: SRAM NX Eagle PowerLock

Braking/Shifting

• Shifters: SRAM NX
• Front Brakes: SRAM Code R, hydraulic disc, 220mm
• Rear Brakes: SRAM Code R, hydraulic disc, 200mm
• Brake Levers: SRAM Code R

Wheels

• Front Rim: Giant AM 29″ Tubeless ready, 30mm inner width
• Rear Rim: Giant AM 27.5″ Tubeless ready, 30mm inner width
• Front Hub: Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, 15 x 110mm Thru-axle
• Rear Hub: Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, 12 x 148mm Thru-axle
• Front Spokes: Race
• Rear Spokes: Sapim E-Lite
• Front Tyre: Maxxis Minion DHF 29 x 2.6″ foldable, Tubeless, EXO+, 3C MaxxTerra
• Rear Tyre: Maxxis High Roller II 27.5 x 2.5″ foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound

Finishing Kit

• Handlebars: Giant Contact Trail, 800 x 35mm
• Stem: Giant Contact SL 35mm
• Seatpost: Giant Contact Switch, dropper, 30,9mm (Small: 125mm, Medium: 150mm, Large / X-Large: 170mm)
• Saddle: Giant Romero Trail
• Pedals: Flat pedal

Electric Power

• Motor: SyncDrive Pro, 85Nm, powered by Yamaha
• Battery: EnergyPak Smart 625WhEnergyPak Plus range extender compatible
• Display: RideControl GO, frame integrated LED displayANT+ Wireless display compatible
• Controller: RideControl Ergo 3, grip integrated
• Charger: EnergyPak 6A smart charger

Extras

• Extra: Tubeless kit (liquid, valves, levers, manual, tool)
• Lock: Torx 25 Battery Lock with built-in Torque limiter
• Optional Lighting: Giant Recon series e-bike lights available and direct connectable
