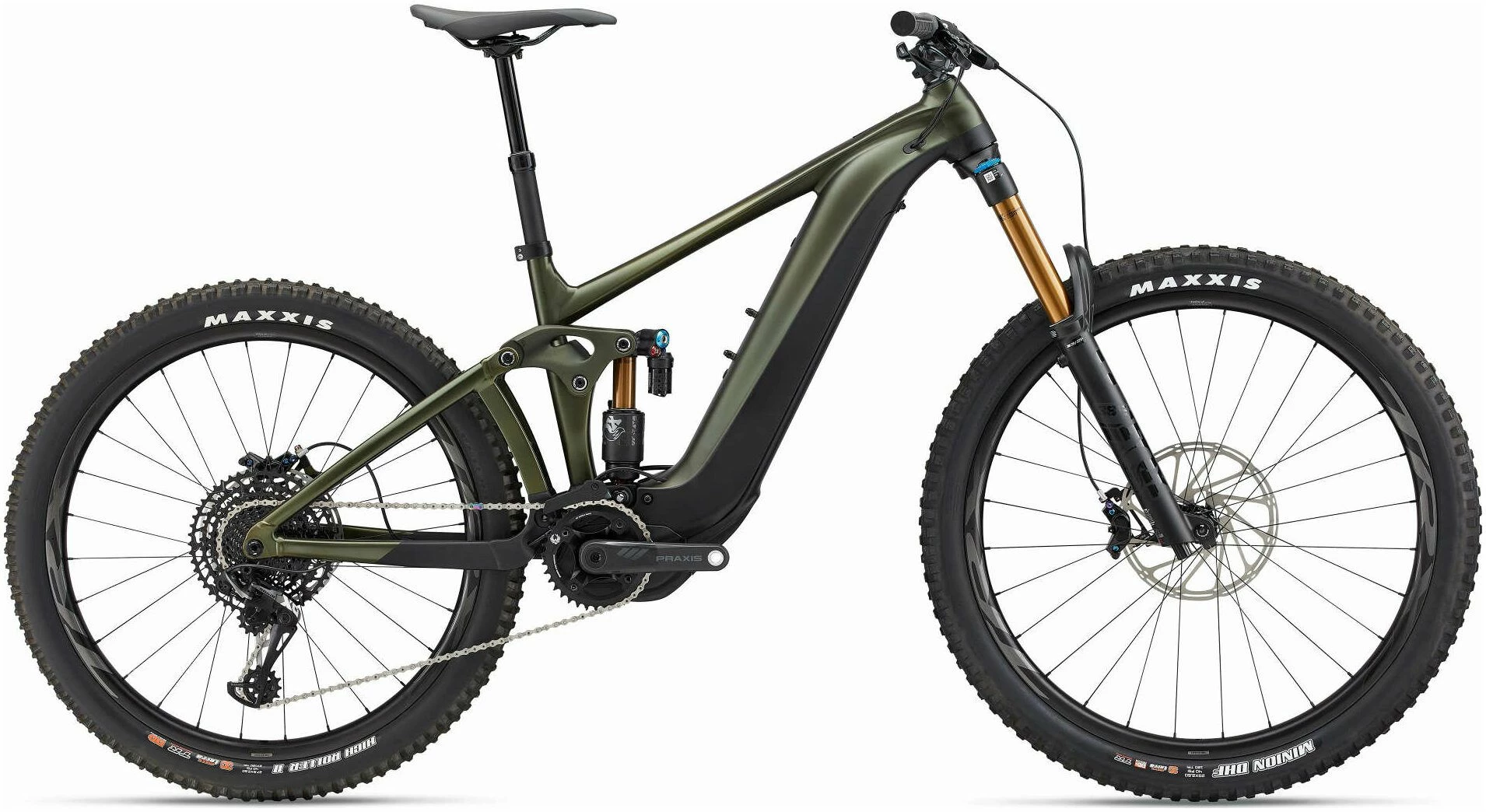

Giant Reign E+ 0 2022 Electric Bike

Every trail, every steep climb, every thrilling descent. Tested and developed by Giant’s E-bike enduro pros, this
updated trail ripper gives you the power to enjoy the best parts of the ride again and again.

Key Performance Factors

Trail technology

Proven Maestro rear suspension (160mm) and a powerful but compact SyncDrive Pro motor technology
boost your capabilities on steep climbs and rugged descents.

Total control

RideControl Ergo 3 offers integrated, user-friendly button controls that are easy to use. The Giant
E-bike App gives you tuning options and E-bike specific fitness tracking.

Long-lasting power

Climb steep mountains and enjoy fun descents all day long with the downtube-integrated EnergyPak

Technologies

Aluxx SL Aluminum Technology

This High-Performance level, state-of-the-art aluminum material is made
predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature
unique welding technologies for a high-performance ride quality.

Hybrid Cycling Technology

Hybrid Cycling Technology is a system that combines electric power with human power to produce a smart,
natural and powerful E-bike riding experience. It’s an integrated group of technologies that includes our
RideControl control unit, EnergyPak battery systems and SyncDrive motor.

Maestro Suspension Technology

Four strategically positioned pivot points and two linkages all work together to
create a single floating pivot for the most active, efficient and independent suspension system on the trail.

Syncdrive Pro

SyncDrive Pro powered by Yamaha is designed for high-performance E-bike riding. Giant tuned the
motor to make it more powerful, producing a performance-oriented riding style. The lightweight, compact
SyncDrive Pro motor is used primarily on Giant’s high-performance models.

Smart Assist

All SyncDrive motors have Smart Assist technology, which adjusts the support to match the rider’s
needs. By using information from multiple sensors, both rider input and terrain feedback are used to determine
the optimal amount of pedaling assistance. SyncDrive is the only e-bike system that utilizes both rider input
and terrain feedback. It gives you a smooth, natural riding experience with ample power when you need it, while
also conserving power when you don’t need as much.

Energypak

Giant’s latest EnergyPak battery systems feature streamlined designs that are integrated with the
E-bike for a sleek and modern profile. Giant E-bikes offer several different EnergyPak options including the
EnergyPak Smart and EnergyPak. Each one is designed to optimize the E-bike experience for a specific style of
riding.

Ridecontrol Ergo 3

This updated control system features clean buttons that are integrated with the handlebar
grips. You can install the three-button control on the left or right side, making it easy to switch power modes.
You also have the option of adding a second control on the other side. Using the RideControl App, you can
configure it to your own personal preferences.

Ridecontrol Go:

Available on premium Giant E-Bikes, RideControl Go features a multipurpose button integrated
into the top tube. Colored LEDs allow you to switch power modes from the top tube and keep a clean handlebar
setup. The lights also display battery level and support mode.

Specifications

Frame and Forks

• Frame: ALUXX SL-Grade Aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro Suspension System,
  ‘Boost’
  148 x 12mm, UDHTM Derrailleur Hanger
• Forks: Fox 38 Float Factory 29er, 170mm Travel, GRIP2 VVC Damper, Boost 110 x 15 Kabolt Floating Axle, With
  Fender, E-Bike Optimised
• Rear Shock: Fox Float X2 Factory, EVOL Large Volume Sleeve, 2-Position Lever, 205 x 62.5mm Trunnion Mount,
  Custom
  Tuned

Drivetrain

• Crankset: SRAM X-Sync Eagle 36 Tooth ChainringPraxis E-Carbon Custom Carbon Crankarm Set (Small / Medium:
  160mm,
  Large / X-Large: 165mm)
• Rear Derailleur: SRAM XO1 Eagle
• Front Derailleur: MRP 1X HD2 Custom Co-Molded Chain Guide
• Cassette: SRAM PG-1230, 11-50 Tooth, 12-Speed
• Chain: SRAM XO1 Eagle PowerLock

Braking/Shifting

• Shifters: SRAM XO1 Eagle
• Brakes: SRAM Code RSC, Hydraulic Disc, Front: 220mm / Rear: 200mm
• Brake Levers: SRAM Code RSC

Wheels

• Rims: Giant E-TRX 27.5″ / 29″, Tubeless Ready, 30mm Inner Width
• Hubs: Giant E-TRX Front: 110 x 15mm Rear: 148 x 12mm Thru-Axle
• Spokes: Giant E-TRX
• Front Tyres: Maxxis Minion DHF 29 x 2.6″ Foldable, Tubeless, EXO+, 3C MaxxTerra
• Rear Tyres: Maxxis High Roller II 27.5 x 2.5″ Foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound

Finishing Kit

• Handlebars: Giant Contact Trail SL, 35 x 800mm
• Grips: Giant Tactal Pro-E, Single Lock-On
• Stem: Giant Contact SL 35
• Seatpost: Giant Contact Switch, Dropper, 30,9mm (Small: 125mm, Medium: 150mm, Large / X-Large: 170mm)
• Saddle: Giant Romero SL Trail
• Pedals: Flat Pedal

Electric Power

• Motor: SyncDrive Pro, 85Nm, Powered By Yamaha
• Battery: EnergyPak Smart 750WhEnergyPak Plus Range Extender Compatible
• Charger: EnergyPak 6A Smart Charger
• Display: RideControl GO, Frame Integrated LED DisplayANT+ Wireless Display Compatible
• Controller: RideControl Ergo 3, Grip Integrated

Extras

• Lights: Optional:- Giant Recon Series E-Bike Lights Available And Direct Connectable
• Lock: Torx 25 Battery Lock With Built-In Torque Limiter
• Includes: Tubeless Kit (Liquid, Valves, Levers, Manual, Tool)
