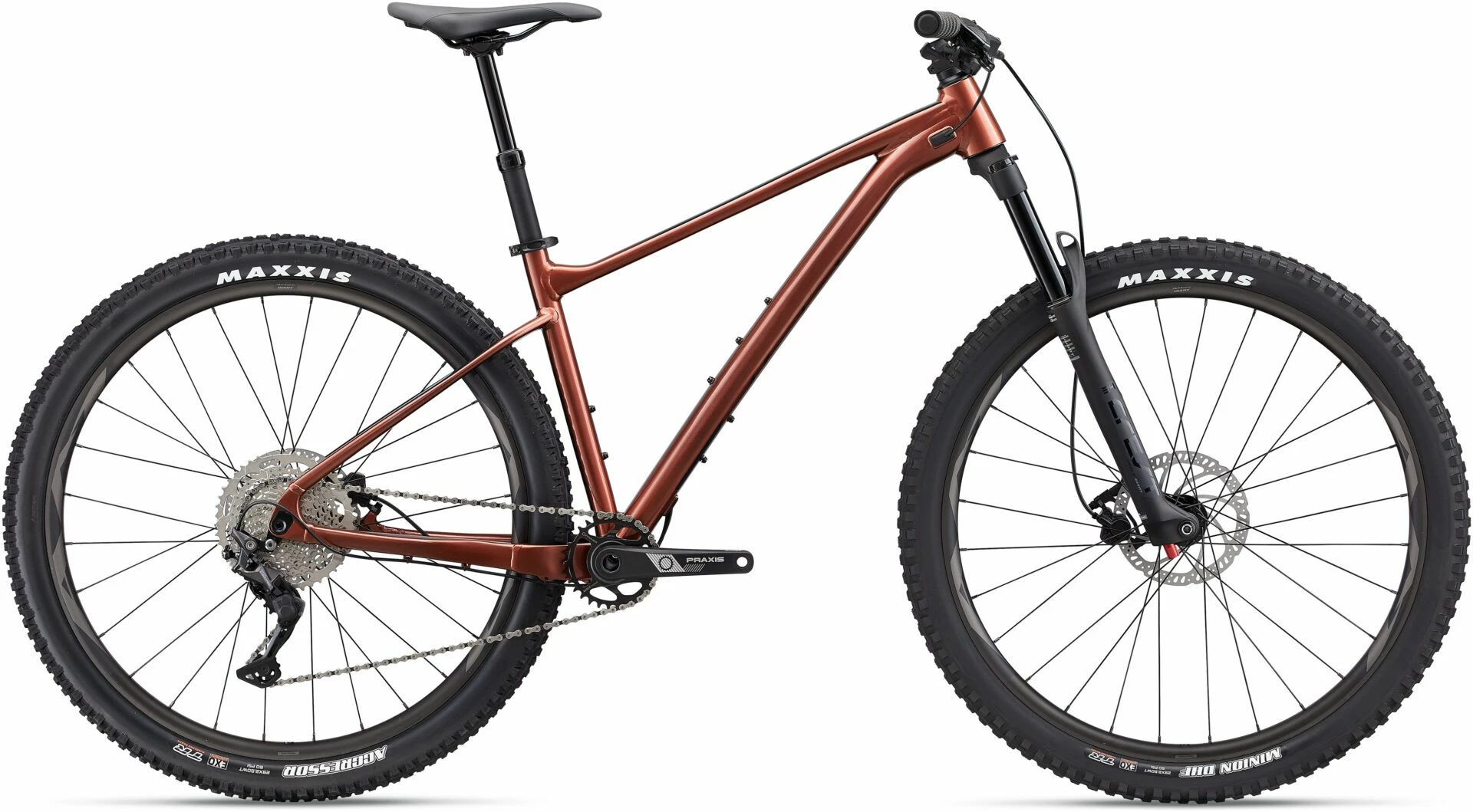

Giant Fathom 29 2 2022 Bike

Crank up steep climbs with smooth efficiency. Swoop down singletrack descents with speed and confidence. This hardtail 29er delivers a balanced ride on XC terrain.

Features

Trail tuned design: Balanced geometry with a 75-degree seattube angle puts the rider in a powerful pedaling position on climbs, while a slacker 66-degree head angle boosts confidence and control on technical descents.

Responsive handling: Lightweight ALUXX SL aluminium hardtail frame offers agile acceleration and manoeuvrability to help riders climb, corner and hammer the flats with efficiency and speed.

Smooth control: Giant Crest 34 suspension fork with 130mm of travel absorbs roots, rocks and ruts. Grippy, high-volume tyres boost traction on rugged terrain. And a dropper seatpost with handlebar remote lets you adjust saddle height on the fly for confident positioning on changing terrain.

Technologies

• Aluxx SL Aluminium Technology: This High-Performance level, state-of-the-art aluminium material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for high-performance ride quality.
• Over Drive: Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4″ lower and 1 1/8″ upper for road, 1 1/2″ lower and 1 1/8″ upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
• Tubeless System: Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

Specifications

Frame and Forks

• Frame: ALUXX SL-Grade Aluminum
• Forks: Giant Crest 34 RCL, 130mm, 44mm Offset, Boost 15 x 110mm

Drivetrain

• Crankset: Praxis Cadet M24, 30 Tooth, Small: 165mm, Medium: 170mm, Large: 170mm, X-Large: 170mm
• Bottom Bracket: Praxis, Press Fit
• Rear Derailleur: Shimano Deore M-5120
• Cassette: Shimano Deore M4100, 11 x 46 Tooth
• Chain: KMC X10

Braking/Shifting

• Shifters: Shimano Deore M-4100, 1 x 10 Speed
• Brakes: Tektro HDM 275, Hydraulic, Tektro Rotors, Front: 180mm, Rear: 180mm
• Brake Levers: Tektro HDM 275

Wheels

• Rims: Giant AM 29, Tubeless Ready Sleeve-Joint Rim, 30mm Inner Width
• Hubs: Alloy, Sealed Bearing
• Spokes: Stainless Steel
• Tyres: Front: Maxxis Minion DHF, 29 x 2.5″ WT, EXO/TR Rear: Maxxis Aggressor, 29 x 2.5″ WT, Foldable, EXO/T

Finishing Kit

• Handlebars: Giant Contact TR35, 780 x 35mm
• Grips: Giant Sole-O
• Stem: Giant Contact SL 35, Small: 40mm, Medium: 40mm, Large: 50mm, X-Large: 50mm
• Seatpost: Giant Contact Switch Dropper, Remote, Small: 125mm Travel / 395 x 30.9mm Medium: 125mm Travel / 395 x 30.9mm Large: 150mm Travel / 440 x 30.9mm X-Large: 170mm Travel / 450 x 30.9mm
• Saddle: Giant Romero
• Pedals: Not Included
