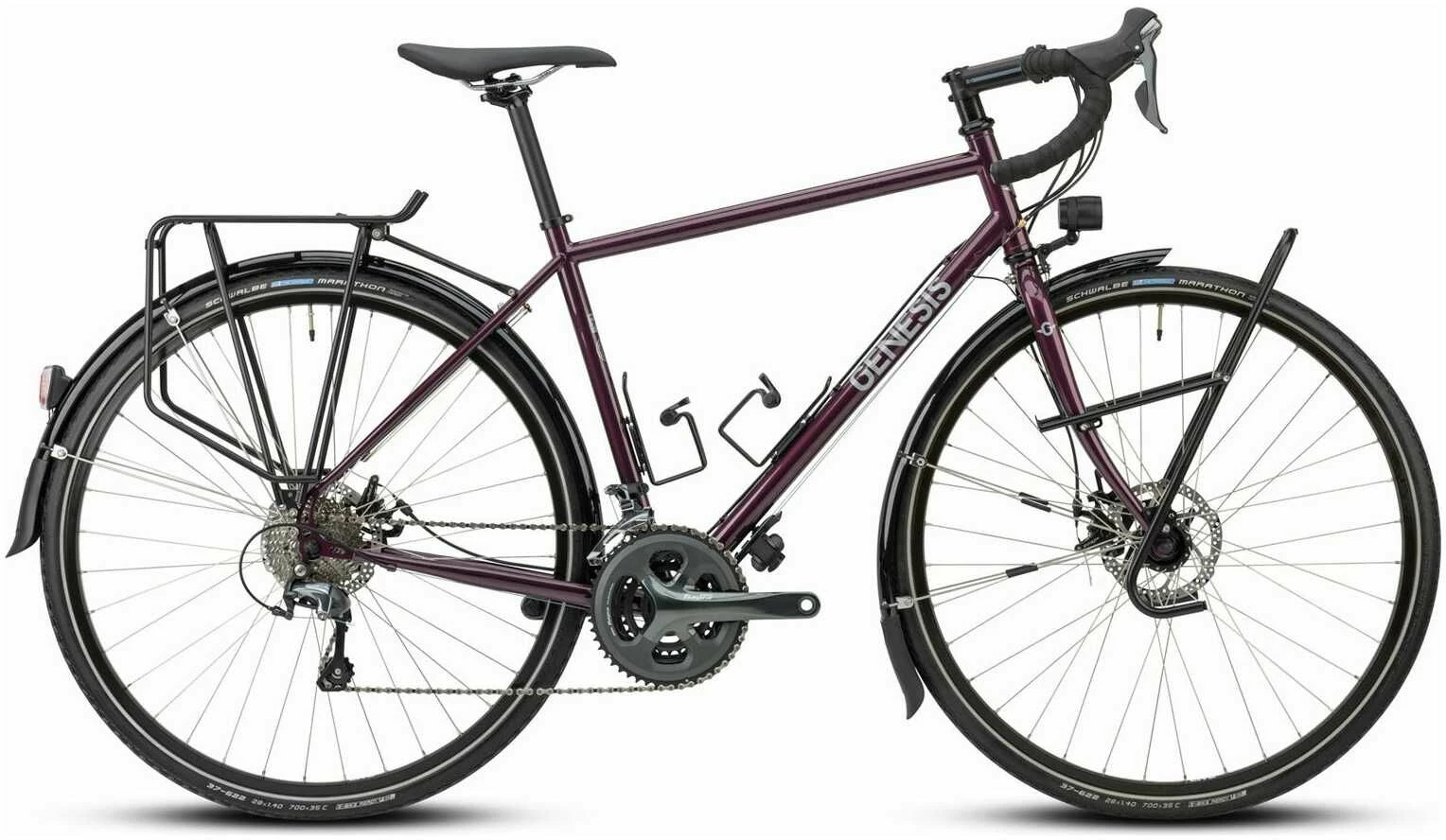

Genesis Tour De Fer 30 2021 Bike

The bike you’d turn to if you were to quit your job and embark on an impromptu pedal-powered world tour!

Build-wise, we dressed the frame with durable, no-nonsense components that we knew from personal experience are
tour/expedition worthy and should last the sorts of high-mileages for which the bike was intended.

The spec list should, by all accounts, read like a cyclo-tourist’s wish list; even going so far as to include a
Shimano dynamo hub! Expedition-ready straight from the box – just add rider, luggage and a strong sense of
adventure.

Specifications

Frame and Forks

• Frame: Steel Crossbar Design
• Forks: Genesis Full Chromoly
• Headset: PT-1770 EC34 Upper / EC34 Lower

Drivetrain

• Chainset: Shimano FC-4703 50-39-30 Tooth X-Small = 165mm, Small = 170mm Medium, Large, X-Large = 175mm
• Bottom Bracket: Shimano BB-ES300
• Front Derailleur: Shimano Tiagra FD-4703
• Rear Derailleur: Shimano Tiagra RD-4700-GS Medium Cage
• Cassette: Shimano CS-HG500-10 11-32 Tooth
• Chain: KMC X10

Braking / Shifting

• Brake Levers: Shimano Tiagra ST-4700 3 x 10 Speed
• Brakes: TRP Spyre-C Mechanical Disc
• Shifters: Shimano Tiagra ST-4700 3 x 10 Speed

Wheels

• Rims: Sun Ringle Rhyno Lite
• Hubs: Shimano Front – DH-UR700-3D / Rear FH-M6000
• Spokes: Steel 14G
• Tyres: Schwalbe Marathon

Finishing Kit

• Handlebars: Genesis Alloy X-Small = 400mm, Small, Medium = 420mm, Large, X-Large = 440mm
• Bar Tape: Genesis
• Stem: Genesis Alloy 31.8mm -6 Deg 100mm
• Seatpost: Genesis Alloy 27.2 X-Small, Small, Medium = 350mm Large, X-Large = 400mm
• Saddle: Genesis
• Pedals: NW-91K With Cage
