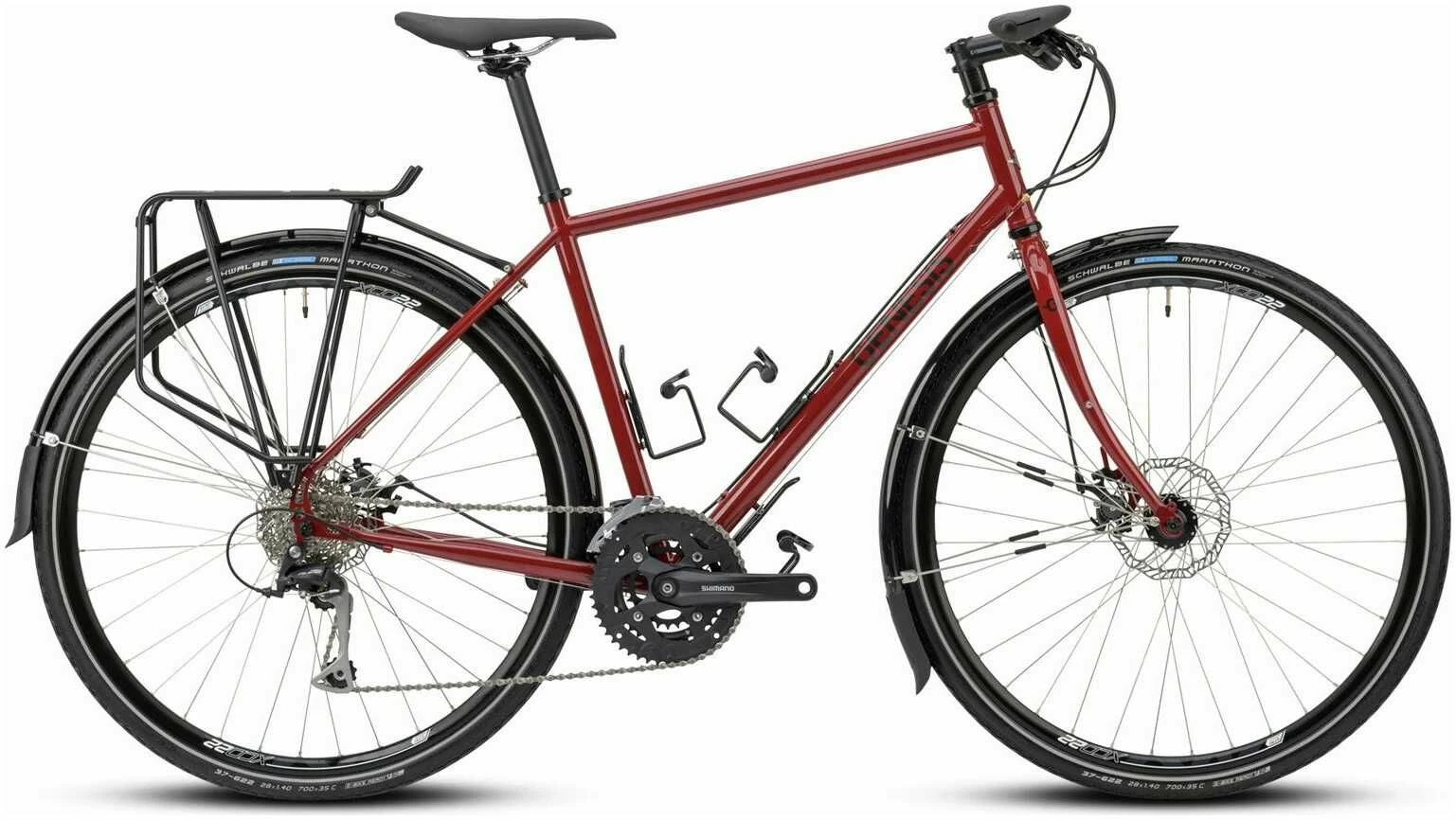

Genesis Tour De Fer 10 Flat Bar 2021 Bike

The Tour de Fer 10 represents our vision of affordable escapism; a bike designed for the sole purpose of carrying
rider and luggage long distances efficiently and in comfort, without leaving a sizable dent in your pocket. Our
flat-bar variant takes every element of our country-crossing legend and matches it with a more upright position,
perfect for those needing the ultimate comfort.

As our entry-level model, affordability is at the forefront of our considerations, without cutting corners that
would’ve been detrimental to the ride or long-term ownership. This meant choosing rugged, reliable kit that will
last the high mileage for which we intend the bike to be used.

Most of what makes it so good for touring is also 100% applicable to commuting. Everyday practicalities like large
volume, puncture resistant Schwalbe Marathon tyres, tough 36H wheelset, powerful, controlled disc brakes, Tubus
Cargo rear rack and custom length and extra-long Chromoplastic mudguards.

Tour de Fer 10 is just as suited as a daily commuter as it is a cross-continent tourer. Where will you take yours?

Specifications

Frame and Forks

• Frame: Steel Crossbar Design
• Forks: Genesis Full Chromoly
• Headset: PT-1606 EC34 Upper / EC34 Lower

Drivetrain

• Chainset: Shimano FC-T4010 48-36-26 Tooth X-Small, Small, Medium = 170mm, Large, X-Large = 175mm
• Bottom Bracket: Shimano BB-ES300
• Front Derailleur: Shimano Alivio FD-T4000
• Rear Derailleur: Shimano Alivio RD-T4000-SGS 9 Speed
• Cassette: Shimano CS-HG400-9 11-32 Tooth
• Chain: KMC X9

Braking / Shifting

• Brake Levers: Shimano BL-T4010
• Brakes: Promax DSK-717RS Mechanical Disc
• Shifters: Shimano Alivio SL-M4000 3 x 9 Speed

Wheels

• Rims: Jalco XCD22
• Hubs: KT-K08
• Spokes: Steel 14G
• Tyres: Schwalbe Marathon 700 x 37c

Finishing Kit

• Handlebars: Genesis Alloy 18mm Rise 8 Deg Backsweep X-Small = 580mm, Small, Medium = 600mm, Large, X-Large =
  620mm
• Grips: Genesis
• Stem: Genesis Alloy 31.8mm -6 Deg 100mm
• Seatpost: Genesis Alloy 27.2 X-Small, Small, Medium = 350mm Large, X-Large = 400mm
• Saddle: Genesis
• Pedals: NW-91K With Cage
