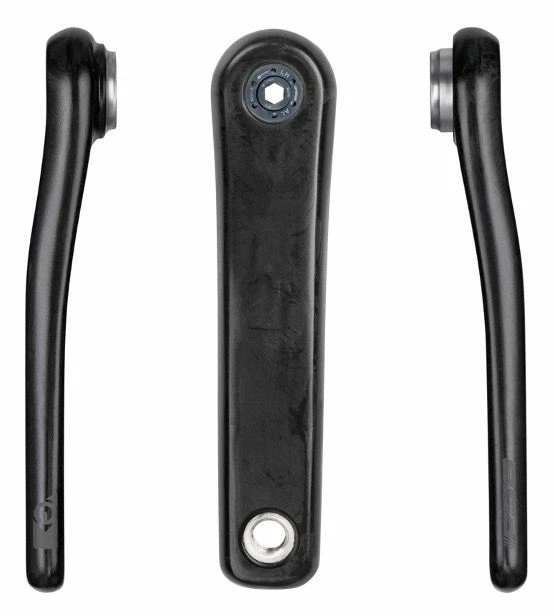

FSA CK-8685-1 ISIS E-Bike Crankset

FSA Carbon crank arm set compatible with Fazua engine.

Features

• Hollow carbon crank arms
• ISIS drive
• Color graphics

Specifications

• Bottom Bracket Diameter: 18.7mm
• Material: Carbon
• Weight: 273g (Pair)

Sizing

Motor, Q-Factor, Clearance;

Bosch G4 (ISIS): 170mm, 142mm

Brose MAG (ISIS): 183mm, 155mm

Yamaha PW-X2 (ISIS): 160mm, 132mm

Fazua (ISIS): 168mm, 140mm

Nidec (ISIS): 177mm, 149mm

Polini 137 (ISIS): 170mm, 142mm

Polini 144 (ISIS): 177mm, 149mm

SACHS (ISIS): 168mm, 140mm

Q-Factor is the distance between the outsides of the crank arms.
Clearance is the distance between the insides of the crank arms. Please make sure the clearance is wider than the
width of your bike’s chainstays.
