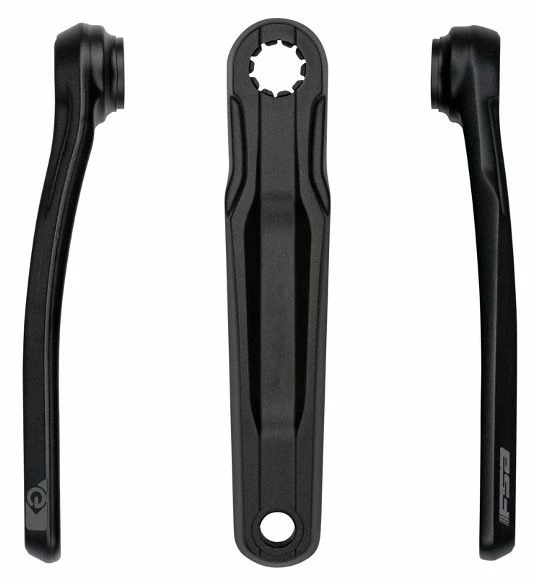

FSA CK-762 ISIS E-Bike Crankset

FSA CK-762 alloy crank arm set compatible with Bosch Gen3 engine.

Features

• Forged AL6061/T6 crank arms
• ISIS drive
• Bead blasted anodised black

Specifications

• Bottom Bracket Diameter: 22.0mm
• Material: Forged AL6061/T6
• Weight: 450g

Sizing

Motor, Q-Factor, Clearance;

Bosch G4 (ISIS): 177mm, 148mm

Brose MAG (ISIS): 191mm, 162mm

Yamaha PW-X2 (ISIS): 168mm, 139mm

Fazua (ISIS): 176mm, 147mm

Nidec (ISIS): 185mm, 156mm

Polini 137 (ISIS): 178mm, 149mm

Polini 144 (ISIS): 185mm, 156mm

SACHS (ISIS): 176mm, 147mm

Q-Factor is the distance between the outsides of the crank arms.
Clearance is the distance between the insides of the crank arms. Please make sure the clearance is wider than the
width of your bike’s chainstays.
