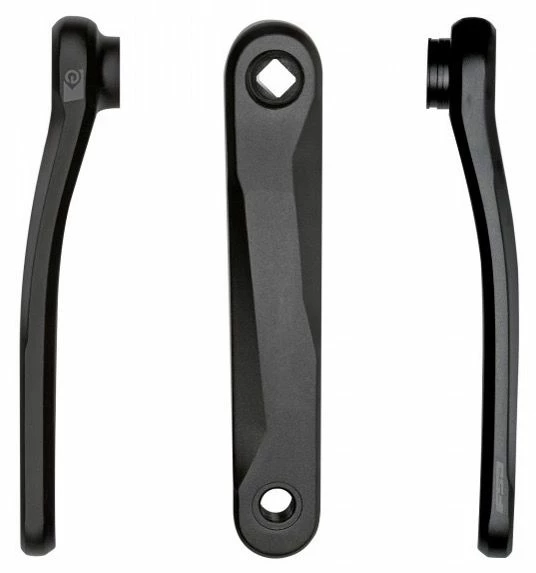

FSA CK-746-2 JIS E-Bike Crankset

FSA crank arm set compatible with Yamaha PW and Shimano engines.

Features

• Forged AL6061/T6 crank arms
• JIS spindle
• anodised black, laser graphics

Specifications

• Bottom Bracket Diameter: 22.5mm
• Material: Forged AL6061/T6
• Weight: 477g

Sizing

Motor, Q-Factor, Clearance;

Yamaha PW ST/TE (JIS): 188mm, 160mm

Shimano E5000 (JIS): 180mm, 152mm

Q-Factor is the distance between the outsides of the crank arms.
Clearance is the distance between the insides of the crank arms. Please make sure the clearance is wider than the
width of your bike’s chainstays.
