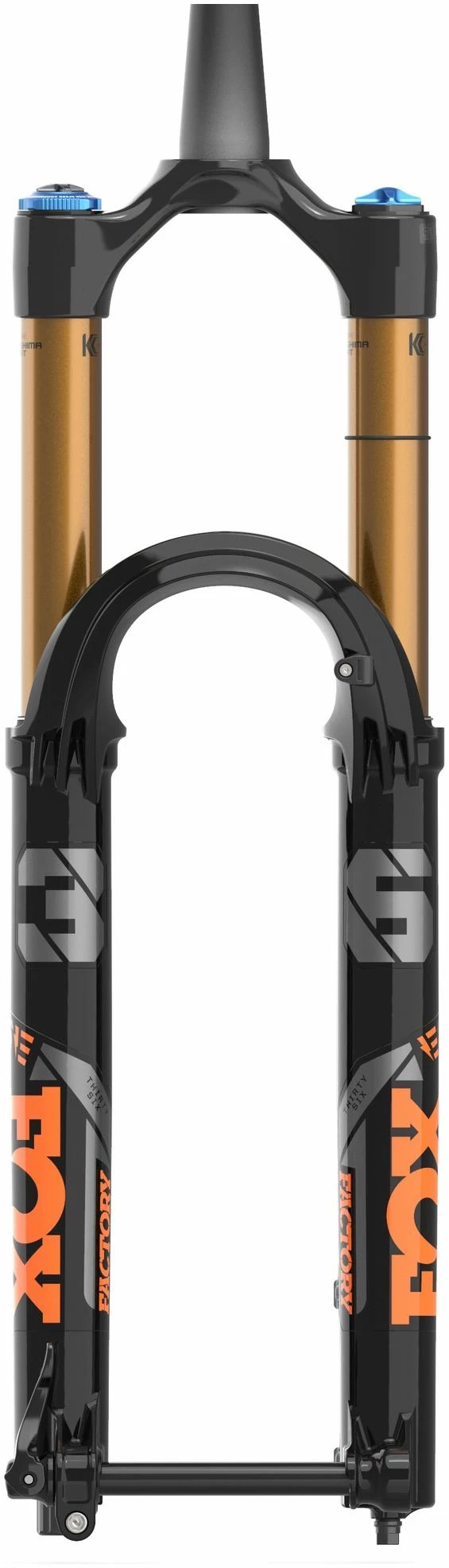

Fox 36 Float Factory E-Bike+ GRIP2 2021 Fork

Smoother stiffer and more tunable than ever before

With all new design inside-and-out, plus an unmatched combination of smooth performance, tunability, stiffness, and
lightweight – we took the award-winning 36 and optimized it for E-Bike applications.

“Factory” says it all – feature-packed and designed to exceed the demands of our Factory-level riders. What we sell
is what they race. Factory Series products feature slippery smooth, ultra-durable Genuine Kashima Coat.

Smoother

Floating Axle

Floating axles might look similar to other axles, but in fact they offer a distinct performance advantage due to
their unique ability to match the exact width of the fork’s wheel mounting surface precisely to the front hub
flange spacing, thus creating perfect chassis alignment and eliminating unwanted friction between the upper and
lower fork legs. Floating axles provide much smoother suspension movement throughout the entire range of the
fork’s travel, notably improving sensitivity and overall ride quality.

The all-new 36 and 38 come equipped with a new quick-release lever operated patent-pending floating axle system,
combining the benefit of a floating axle with the ease of a tool-free quick-release. with this system, spacing
is locked in via a floating sleeve, allowing repeated front wheel removal and reinstallation while maintaining
perfect fork alignment. Floating sleeve positioning comes preset from the factory so if you are unsure of how to
operate the floating axle system or simply don’t want to bother with it, you can just install the front wheel
and get on with your ride.

Available optionally is the new Kabolt-X, a lightweight bolt-on floating axle exclusively for the all-new 36 and
38 that not only shaves grams but also increases torsional stiffness via its sleeveless, single-sided pinch bolt
design. Chassis alignment must be reset each time the front wheel is removed and reinstalled on both the
Kabolt-X and 40 floating axles, but the end result is the same – perfect alignment and perfect performance.

Lower Leg Channels

As a fork compresses, the air volume within the lower legs decreases, increasing air pressure. The more the fork
compresses, the more pressure increases. This effect can have the unintended consequence of preventing full
travel from being achieved. Our lower leg channels help alleviate this issue by dramatically increasing air
volume within the lower legs and thereby reducing the amount of additional unintended pressure ramping.

Another benefit of these channels is that lower leg bath oil is circulated to the upper reaches of the lower
legs, continuously lubricating the foam rings and bushings as the fork compresses and extends through its
travel.

Bleeders

Our lower leg bleeders allow for atmospheric pressure equalization at the simple press of a button. Pressure
build-up in the lower legs dramatically decreases fork performance, preventing full travel from being achieved,
and diminishing small bump sensitivity and responsiveness.

Stiffer

Lower Leg Arch

Stiffness-to-weight is the ultimate metric for bicycle design. Engineers invest countless hours poring over every
ounce of material in an effort to optimize this critical ratio. Our all-new lower leg design pulls out all the
stops, shaving every possible gram while making sure not to compromise stiffness or strength requirements of
modern enduro and gravity style riding.

Modern frame designs and geometry trends require modern suspension design solutions. The arch design of the
all-new 36, 38, and 40 is designed to pair perfectly with modern Enduro and Downhill bikes. Head tube profiles
have grown larger and larger, and fork offsets shorter and shorter. Our new arch shape takes this need into
account by jutting forward to provide ample headtube clearance at full compression. State-of-the-art computer
modeling techniques helped us to create an organic lower leg shape that optimizes stiffness with the absolute
minimal amount of material.

More Tunable

GRIP2

Our GRIP2 damper is the benchmark for unparalleled ride quality and ultra-precise on-the-fly adjustability. For
2021, we’ve taken GRIP2 to the next level by adding our patented VVC technology to the high-speed compression
circuit.

VVC is a proprietary variable valve control system that allows for external fine-tuning of suspension
performance. GRIP2 achieves with the twist of a knob what typically requires the time consuming and complicated
task of completely disassembling and reassembling the fork.

Float Evol

Evol technology increases negative air spring volume, optimizing small bump sensitivity. Evol’s linear spring
curve delivers plushness off the top, extra mid-stroke support, and more tunable bottom-out progression.

The benefits of Evol are further enhanced by our new Lower Leg channels and Bleeders, which both function to
reduce air pressure captured in the lower legs, allowing the Evol air spring to operate freely without
unintended interference.

Features:

• New chassis
• New air/oil channels
• New lower leg design, highly optimized for maximum stiffness to weight
• New arch shape offers improved head tube clearance with shorter rakes
• Updated GRIP2 damper now with dual VVC (Variable Valve Control) on HSC and HSR circuits
• Matching 8-click HSC and HSR adjustment on Grip2 forks and X2 shocks
• Increased crown diameter to match modern frame shape profiles
• Updated Evol air spring
• Optional mudguard with sturdy 4-point direct-mount attachment protects upper tubes and dust wipers from dirt and
  debris

Specifications:

• Damper: GRIP2 with Dual VVC (Variable Valve Control)
• Travel: 140mm / 160mm
• Wheel Size: 27.5-inch / 29-inch
• Offset: 44mm / 51mm
• Air Spring: Float Evol
• Axle: 15QR x 110mm
• Steerer: 1.5 Tapered
• Rotor Size: 180mm Direct Post Mount, up to 230mm Compatible
• Upper Leg Finish: Genuine Kashima Coat
