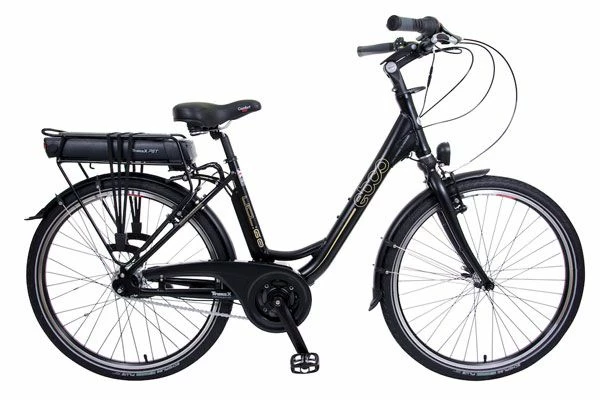

Ebco Urban Commuter UCL-60 Electric Bike

New for 2016 the EBCO UCL-60 with its Low Step aluminium frame, features the latest Middle Motor (M25) technology from TranzX. By integrating the motor into the bottom bracket and connecting directly to the chain ring the acceleration, efficiency and performance are increased producing a comfortable and efficient riding experience. Matched to a high level finishing kit and a 400wh lithium battery the UCL-60 gives a range of 30 – 45 miles.

FRAME & FORK

Urban commuting low step 44cm/48cm frames built in T6 high grade aluminium and finished in satin black with head stock suspension 30mm travel forks.

WHEEL SET

26″ wheels with Schwalbe Energizer Plus tyres featuring a puncture resistant belt.

ELECTRIC DRIVE SYSTEM

TranzX PST 36volt 250W M25 Central Motor matched to a precise motor controller and DP16 LCD display screen with 3 power support modes, turbo mode, remaining range and easy start function taking the bike up to 4mph and auto light sensor.

BATTERY

• Lithium-ion 36V 11AH (396WH) battery which locks securely and is removable for charging (charger supplied).
• Range: 30 – 45 miles average range in eco mode
• Recharge Time: 5-6 hours from flat. (Less from part charged) GEAR SYSTEM

  Shimano Nexus 7 speed hub gears with Shimano Nexus Revoshift shifter.

  BRAKING SYSTEM

  Tektro V-brakes front and rear

  COMFORT PACK

  Adjustable handlebar stem, comfort bars and grips, EBCO comfort suspension gel saddle, mudguards, chain guard and side kick-stand.

  SAFETY PACK

  Spanninga ROXEO lighting system and integrated Comus R88 rear light, reflective sidewall tyres.

  Complies with EN15194 EU Standard
