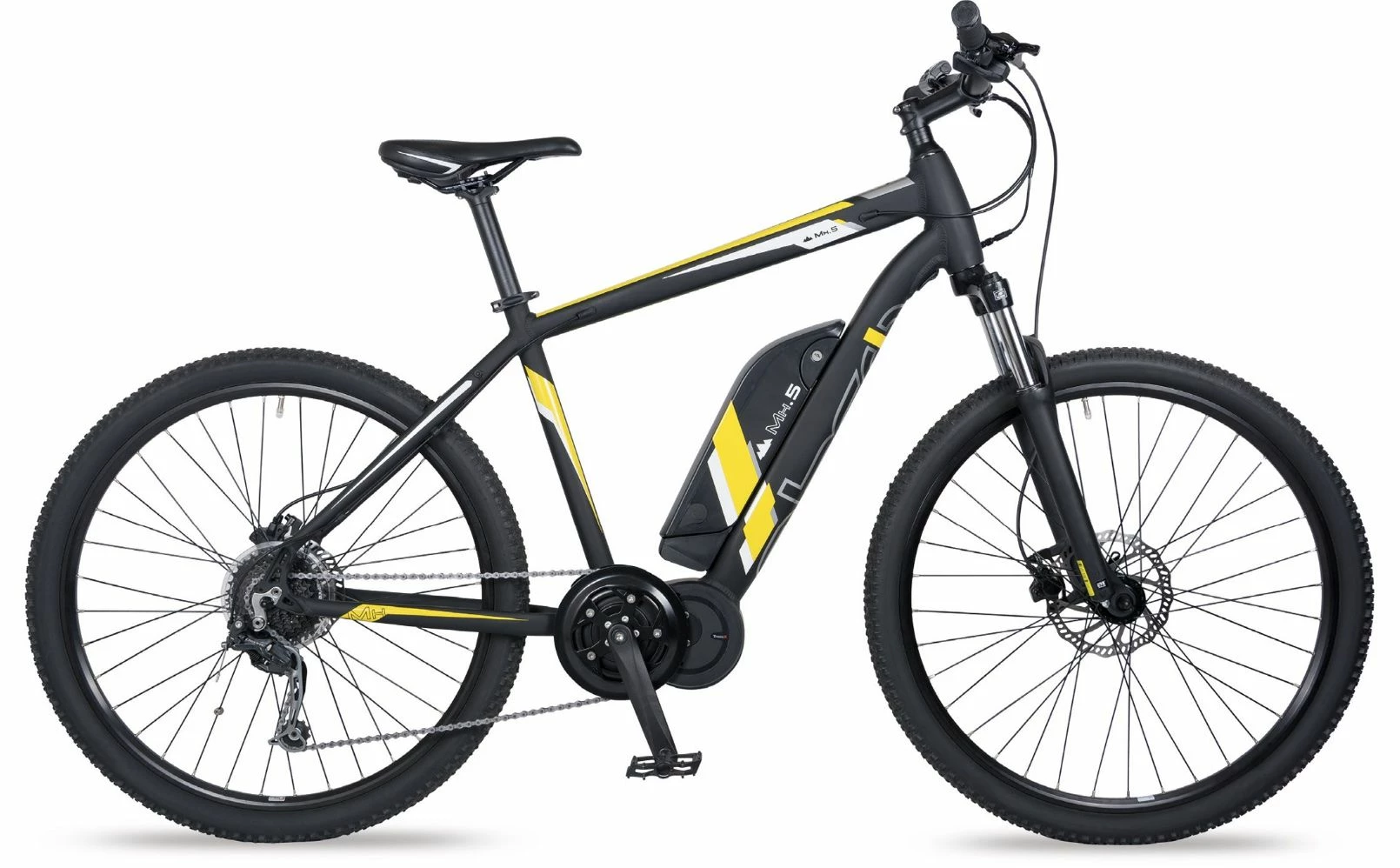

EBCO MH-5 Electric Bike

The MH-5 brings the exhilaration of e-mountain bike riding to a very competitive price point without compromising the
ride. The T6 alloy frame is matched to a Suntour Suspension fork (with lock out) with the Tranzx M16 GT Mid-Engine
driving the power through the bottom bracket.

Shimano Deore 9 speed gear system gives you a wide selection of gears and the frame fitting Lithium Ion 36V 400Wh
battery will give you a range of 35-55 miles. Tektro Hydraulic disc brakes and Kenda off road tyres look after
stopping duties and performance finishing kit completes the package.

Specification

Frame and Forks

• Frame: 6061-T6 Alloy With Internal Cable Routing
• Fork: Suntour XCT

Drivetrain

• Rear Derailleur: Shimano Deore M592 Shadow
• Cassette: 11-34T
• Speed: 9-Speed Shimano Deore

Braking/Shifting

• Brakes: Tektro Draco Hydraulic

Finishing Kit

• Pedals: Included

Electronics

• Motor: TransX M16 GT Mid-Drive
• Battery: TranzX BL19 36V 11Ah (396Wh)
• Maximum Speed: 15.5mph assisted speed
• Maximum Range: 55 miles
• Recharge Time: 5-6 hours
• Display: DB27
