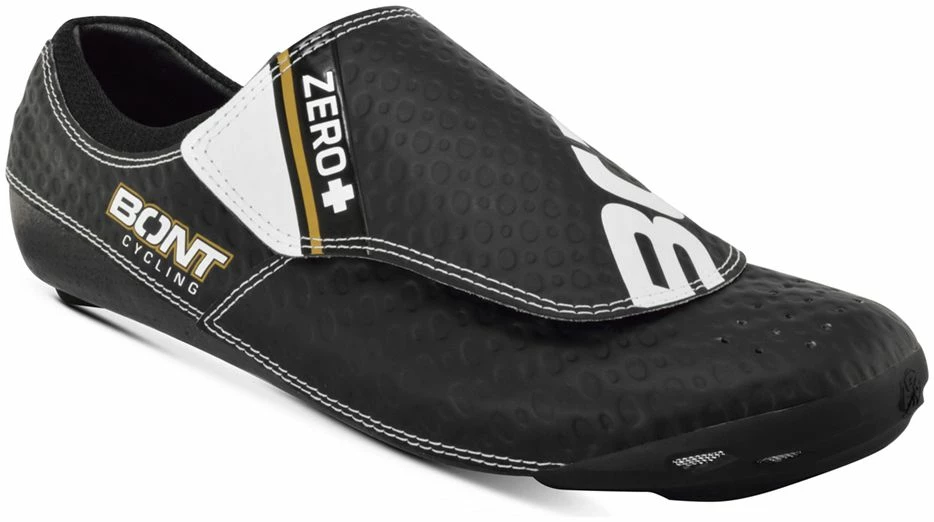

Bont Zero+ Road Shoes

Lighter, Stronger, Faster. No model typifies the brand premise more perfectly than the Zero +.

With an improved anatomical last for even greater power transfer and support, full uni-directional carbon chassis and
the new Durolite upper dimpled for improved aerodynamics, the 2017 Bont Zero+ is truly Lighter, Stronger & Faster.

Durolite Outer Skin

Strength to weight ratio’s have always played an important part in Bont cycling shoe design as all materials
considered and developed for products within the Bont range must comply to strict standards. Durolite has been
developed and chosen for the Zero+ upper and liner for its extremely durable nature and light weight.

Unidirectional Carbon Chassis

The Zero+ has been upgraded to a matt carbon unidirectional finish to improve the aesthetics of the sole and further
reduce the weight of the shoe.

Retention System

BOA IP1 retention system has been introduced into the Zero+ design with dual directional and quick release dials for
easy entry and exit. The nylon coated Kevlar wiring has been positioned to maximise the dispersion of retention load
across the top of the foot.

TPU Toe Protector

The toe protector not only protects the front area of the shoe from wheel rub and impact, but also houses ventilation
holes for improving airflow through the shoe.

Ventilation

The Zero+ is highly ventilated via integrated top mesh panels and ventilation holes throughout the side microfiber
panels.

Anti Stretch

Between the outer leather and the liner we add a material that is proprietary to Bont to stop the cycling shoe from
stretching over time. This material has similar strength characteristics to Kevlar. The material is stitched to the
outer leather and bonded to the liner so it can never move or be removed, it becomes part of the cycling shoes
structure. This layer assits in pedalling efficiency by maintaining a supportive structure over the top of the foot
in the upward part of the pedal stroke.

Last Design

A last is a replica of a foot that the cycling shoe is built around. Last makers do not make cycling shoe lasts, they
only make shoe lasts so perfecting a cycling shoe last requires a great deal of expertise in functional biomechanics
and ongoing research. At Bont, we have been perfecting our performance footwear lasts since 1975 and the process is
ongoing. We believe we place more importance and thus place more effort into our last than any other cycling shoe
brand and it is the reason that Bont cycling shoes continue to be a leader in providing the most functional and
correct anatomical support to cyclists than any other brand on the market. Our motto in terms of cycling shoe fit is
simple, “We make shoes for cycling, not walking.”

Carbon Fiber

Bont carbon fiber is sourced exclusively from the world’s #1 carbon manufacturer, Toray of Japan. The base of the
Vaypor XC is made by hand utilizing uni-directional carbon fiber which is embedded with epoxy thermo setting resin.
The fibers are hand laid in the matrix according to the strain they will have to bear. The Vaypor XC utilizes
unidirectional carbon fiber allowing Bont to create a performance cycling shoe with very specific strength
characteristics based on stress points in cycling. As unidirectional carbon absorbs less resin then cross weave
fibers, it also assists in the weight reduction of the cycling shoes.

Padding

The Vaypor XC utilises closed cell memory foam that will not retain water assisting in maintaining a lighter shoe
during wet conditions as well as ensuring sweat which can begin to break down the durability of the shoe is not
absorbed.

Medial Longitudinal Arch Support

Structural medial longitudinal arch support is provided in all models to stop over pronation of feet.

Over pronation is one of the main contributors to incorrect tracking of knees during a cyclists pedaling phase due to
internal rotation of tibia and femur. This can result in knee injuries.

In addition, the rotation of tibia/femur can cause the pelvis to tilt resulting in lower back strain.

Anatomical Forefoot Shape

Conventional cycling shoes offer a “dress shoe” type shaping. Although highly aesthetic this will cause the toes
along with the metatarsals to be overly constricted, compressing the nerves between the metatarsals which often
results in the common “hot foot” sensation.

Bont cycling shoes anatomical shaping allows the foot to function in its most efficient and anatomically correct
position. The foot is supported in its endeavour to relax through the metatarsal joints allowing the pedalling force
to be spread across the greatest possible surface area.

Anatomical Heel Cup

The anatomical heel cup shaping of Bont cycling shoes provides increased stability during the pull through stage of
pedaling stroke and up stroke. This stabilization is achieved without any mechanical operation or over tightening of
straps/laces allowing for increased comfort and blood circulation.

Lateral Forefoot Support

Bont’s lateral forefoot support ensures neutral positioning of the forefoot and alleviates common issues associated
with over pronation and supination. These issues often result in incorrect tracking of knees causing injuries along
with hip and lower back pain.

Features

• Material: Unidirectional Carbon Monocoque Chassis with Durolite Upper and liner.
• Stack Height: 3.6 mm.
• Air Vents: Frontal area air vents and air gills in arch area.
• Innersole: EVA thermo-moldable.
• Sole Guards: Replaceable.
• Padding: Memory Foam.
• Cleat Mounting: MM grid plus grip / 3 Hole Look Configuration.
• Fit Customization: Fully Heat Moldable Chassis utilizing Epoxy Thermoset Resin.
• Closing Options: Dual Dial Retention System with Kevlar wiring.
• Weight: 230 grams.
• Fit Options: Standard & Wide.
